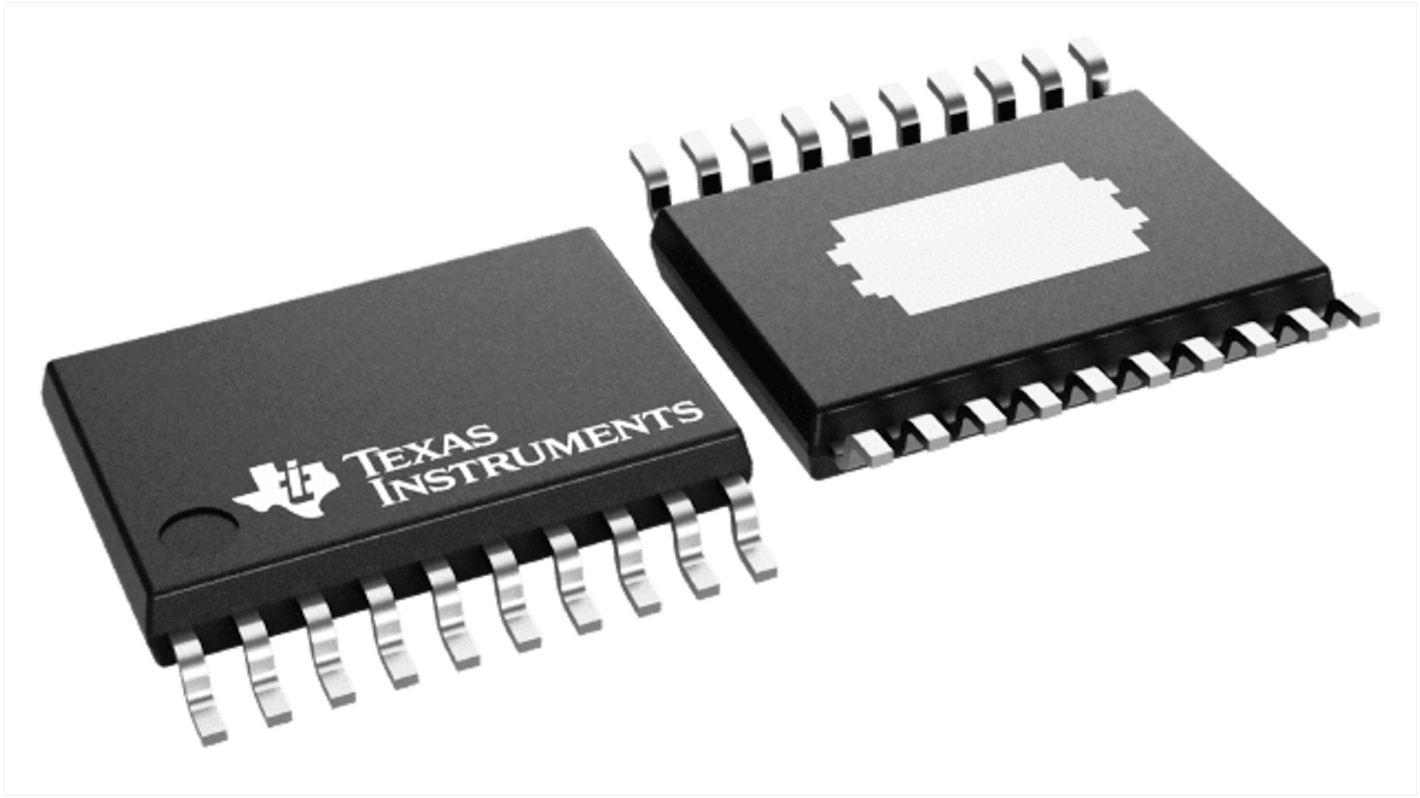

Texas Instruments, 5-Channel DC/DC Converter, Fixed, 1.2V, 1.2 V, 3 A 20-Pin, HTSSOP
- RS Stock No.:
- 252-8910
- Mfr. Part No.:
- TPS54312PWP
- Manufacturer:
- Texas Instruments
Stock information currently inaccessible
- RS Stock No.:
- 252-8910
- Mfr. Part No.:
- TPS54312PWP
- Manufacturer:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | DC/DC Converter | |
| Maximum Output Voltage | 1.2V | |
| Minimum Input Voltage | 3V | |
| Maximum Input Voltage | 6V | |
| Minimum Output Current | 3A | |
| Maximum Output Current | 3A | |
| Topology | Synchronous Buck | |
| Output Type | Fixed | |
| Mount Type | Surface | |
| Maximum Switching Frequency | 700kHz | |
| Minimum Operating Temperature | -40°C | |
| Package Type | HTSSOP | |
| Pin Count | 20 | |
| Maximum Operating Temperature | 85°C | |
| Series | TPS54312 | |
| Standards/Approvals | RoHS | |
| Height | 2.25mm | |
| Length | 7.8mm | |
| Minimum Output Voltage | 1.2V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type DC/DC Converter | ||
Maximum Output Voltage 1.2V | ||
Minimum Input Voltage 3V | ||
Maximum Input Voltage 6V | ||
Minimum Output Current 3A | ||
Maximum Output Current 3A | ||
Topology Synchronous Buck | ||
Output Type Fixed | ||
Mount Type Surface | ||
Maximum Switching Frequency 700kHz | ||
Minimum Operating Temperature -40°C | ||
Package Type HTSSOP | ||
Pin Count 20 | ||
Maximum Operating Temperature 85°C | ||
Series TPS54312 | ||
Standards/Approvals RoHS | ||
Height 2.25mm | ||
Length 7.8mm | ||
Minimum Output Voltage 1.2V | ||
Automotive Standard No | ||
The Texas offers a TPS series of synchronous-buck PWM converters integrate all required active components and Includes on the substrate with the listed features are a true, high performance, voltage error amplifier that provides high performance under transient conditions.
Integrated solution reduces board area
Load protected by peak current limit and thermal shutdown
Fast transient response
