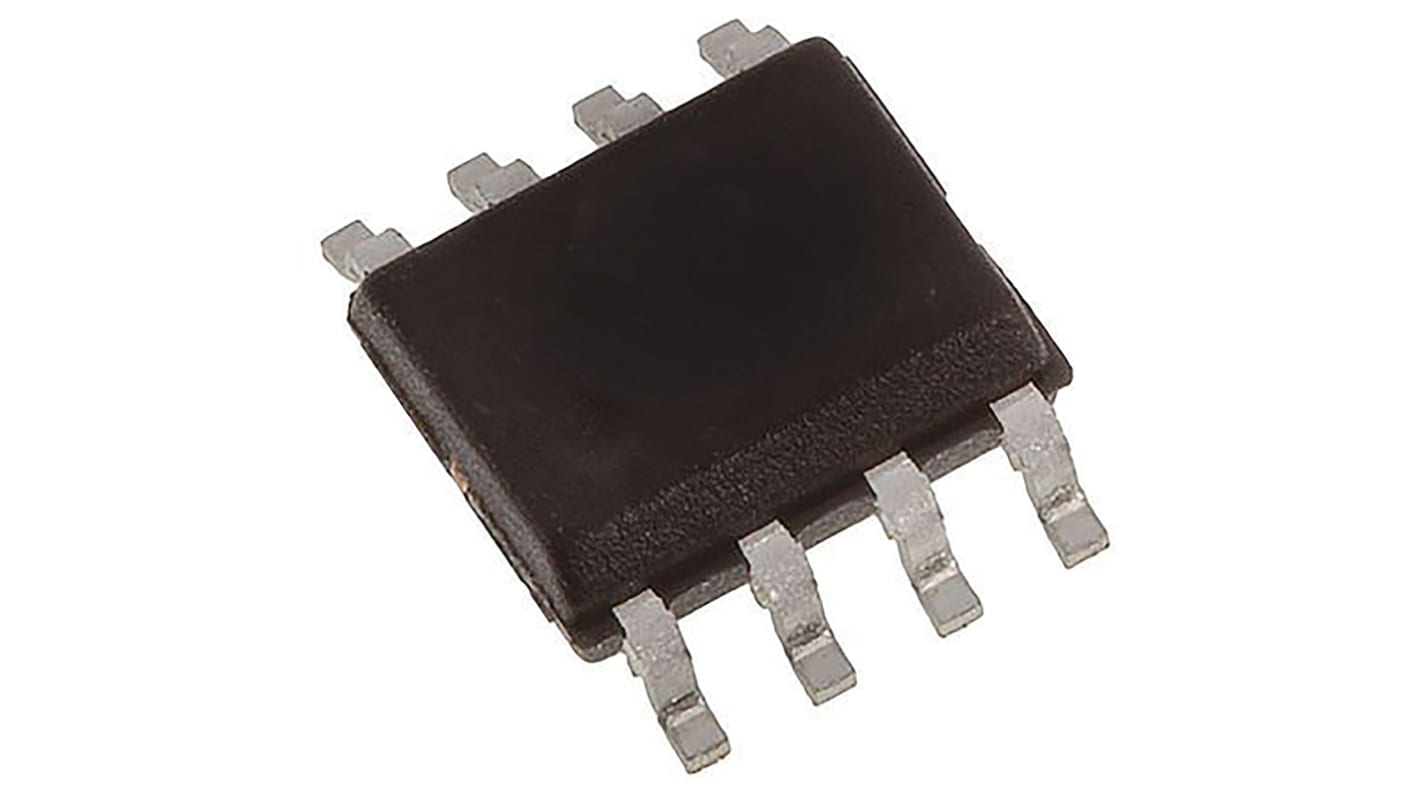

Texas Instruments LM2594HVM-ADJ/NOPB, 1-Channel, Step Down DC-DC Converter, Adjustable 8-Pin, SOIC

RS Stock No.:: 761-5523
Mfr. Part No.:: LM2594HVM-ADJ/NOPB
Manufacturer:: Texas Instruments

Texas Instruments LM2594HVM-ADJ/NOPB, 1-Channel, Step Down DC-DC Converter, Adjustable 8-Pin, SOIC

Bulk discount available

Price Each

€5.89

(exc. VAT)

€7.24

(inc. VAT)

64 Within 2 working day(s) (EU stock)*

12 Within 2 working day(s) (EU stock)

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 4	€5.89
5 - 9	€5.78
10 - 24	€5.60
25 - 49	€5.54
50 +	€5.36

RS Stock No.:: 761-5523
Mfr. Part No.:: LM2594HVM-ADJ/NOPB
Manufacturer:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Minimum Output Voltage	1.2 V
Maximum Output Voltage	37 V
Minimum Input Voltage	4.5 V
Maximum Input Voltage	60 V
Maximum Output Current	500mA
Converter Type	Step Down
Number of Outputs	1
Output Type	Adjustable
Maximum Switching Frequency	0.15 MHz
Mounting Type	Surface Mount
Package Type	SOIC
Pin Count	8
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Width	3.988mm
Efficiency	80%
Dimensions	5.004 x 3.988 x 1.5mm
Length	5mm
Height	1.5mm
Switching Regulator	Yes

Texas Instruments LM2594HVM-ADJ/NOPB, 1-Channel, Step Down DC-DC Converter, Adjustable 8-Pin, SOIC

Step-Down DC/DC Converters (Integrated Switch) over 35V Input Max., Texas Instruments
