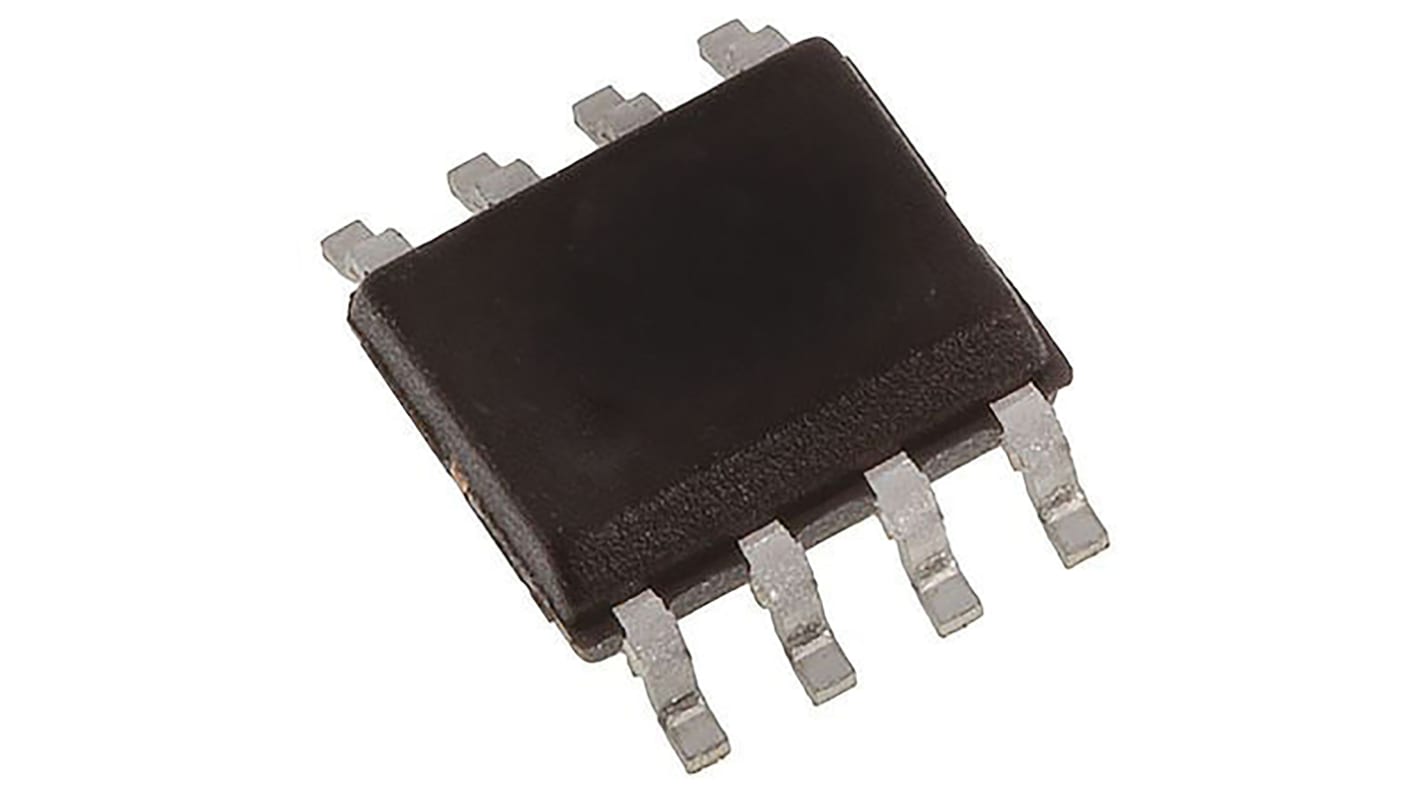

Texas Instruments LM2594HVM-ADJ/NOPB, 1-Channel, Inverting, Step Down DC-DC Converter, Adjustable 8-Pin, SOIC

RS Stock No.:: 921-6847
Mfr. Part No.:: LM2594HVM-ADJ/NOPB
Manufacturer:: Texas Instruments

Texas Instruments LM2594HVM-ADJ/NOPB, 1-Channel, Inverting, Step Down DC-DC Converter, Adjustable 8-Pin, SOIC

Price Each (In a Tube of 95)**

€4.338

(exc. VAT)

€5.336

(inc. VAT)

433 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Tube**
95 +	€4.338	€412.11

**price indicative

RS Stock No.:: 921-6847
Mfr. Part No.:: LM2594HVM-ADJ/NOPB
Manufacturer:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Minimum Output Voltage	1.2 V
Maximum Output Voltage	37 V
Minimum Input Voltage	4.5 V
Maximum Input Voltage	60 V
Maximum Output Current	500mA
Converter Type	Inverting, Step Down
Number of Outputs	1
Output Type	Adjustable
Maximum Switching Frequency	0.15 MHz
Mounting Type	Surface Mount
Package Type	SOIC
Pin Count	8
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Height	1.5mm
Length	5mm
Width	3.988mm
Dimensions	5.004 x 3.988 x 1.5mm
Switching Regulator	Yes

Texas Instruments LM2594HVM-ADJ/NOPB, 1-Channel, Inverting, Step Down DC-DC Converter, Adjustable 8-Pin, SOIC

Step-Down DC/DC Converters (Integrated Switch) over 35V Input Max., Texas Instruments
