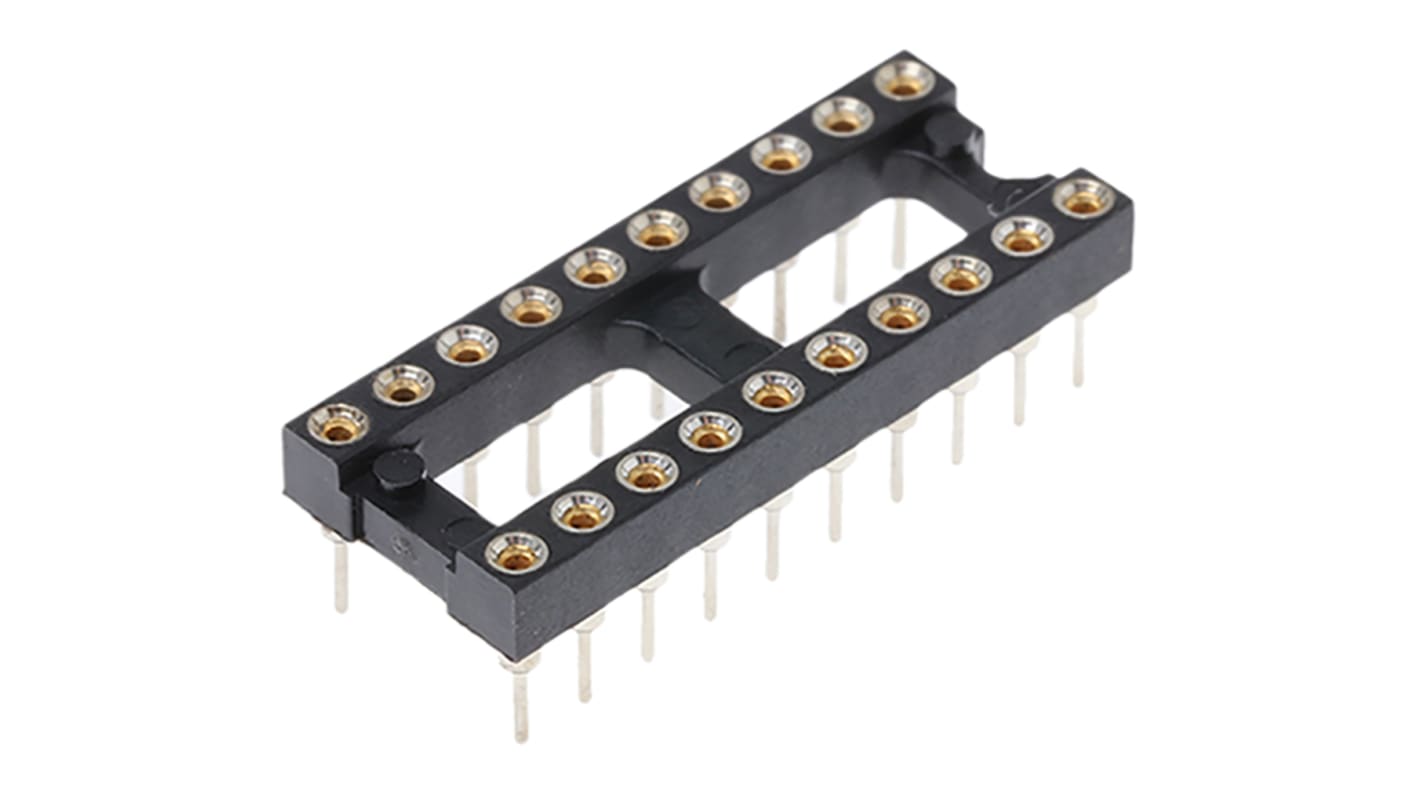

E-TEC, POS/POO/PCL 2.54 mm Pitch Vertical 20 Way, Through Hole Turned Pin Open Frame DIL Socket, 3A
- RS Stock No.:
- 600-7776
- Mfr. Part No.:
- POS-320-S001-95
- Manufacturer:
- E-TEC
Bulk discount available
Subtotal (1 tube of 20 units)*
€70.60
(exc. VAT)
€86.80
(inc. VAT)
Limited stock
- Plus 1,220 left, shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 20 - 480 | €3.53 | €70.60 |
| 500 - 1480 | €3.173 | €63.46 |
| 1500 - 3980 | €2.827 | €56.54 |
| 4000 - 7980 | €2.473 | €49.46 |
| 8000 + | €2.296 | €45.92 |
*price indicative
- RS Stock No.:
- 600-7776
- Mfr. Part No.:
- POS-320-S001-95
- Manufacturer:
- E-TEC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | E-TEC | |
| Product Type | DIL Socket | |
| Number of Contacts | 20 | |
| Mount Type | Through Hole | |
| Pin Type | Turned | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Voltage | 500 V | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Contact Plating | Gold, Tin | |
| Orientation | Vertical | |
| Minimum Operating Temperature | -65°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Length | 25.3mm | |
| Width | 4.45 mm | |
| Standards/Approvals | No | |
| Housing Material | Polybutylene Terephthalate | |
| Series | POS/POO/PCL | |
| Contact Material | Beryllium Copper Alloy | |
| Select all | ||
|---|---|---|
Brand E-TEC | ||
Product Type DIL Socket | ||
Number of Contacts 20 | ||
Mount Type Through Hole | ||
Pin Type Turned | ||
Current 3A | ||
Pitch 2.54mm | ||
Voltage 500 V | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Contact Plating Gold, Tin | ||
Orientation Vertical | ||
Minimum Operating Temperature -65°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Length 25.3mm | ||
Width 4.45 mm | ||
Standards/Approvals No | ||
Housing Material Polybutylene Terephthalate | ||
Series POS/POO/PCL | ||
Contact Material Beryllium Copper Alloy | ||
Precision Gold Contacts
Precision DIP sockets with gold plated 'tulip' grip contacts & tin plated pins
Prevents capilliary action with solder & flux on PCB's
Open frame construction maximises heat dissipation
Temperature Range: -65°C to +125°C
Contacts: Beryllium copper
Pins: Brass
100 Cycles (Contact Life)
Insulation Resistance: 5 x 109 Ω (at 500Vdc) (Std and hi-Temp); >104 MΩ (at 500Vdc) (FR4 Epoxy)
