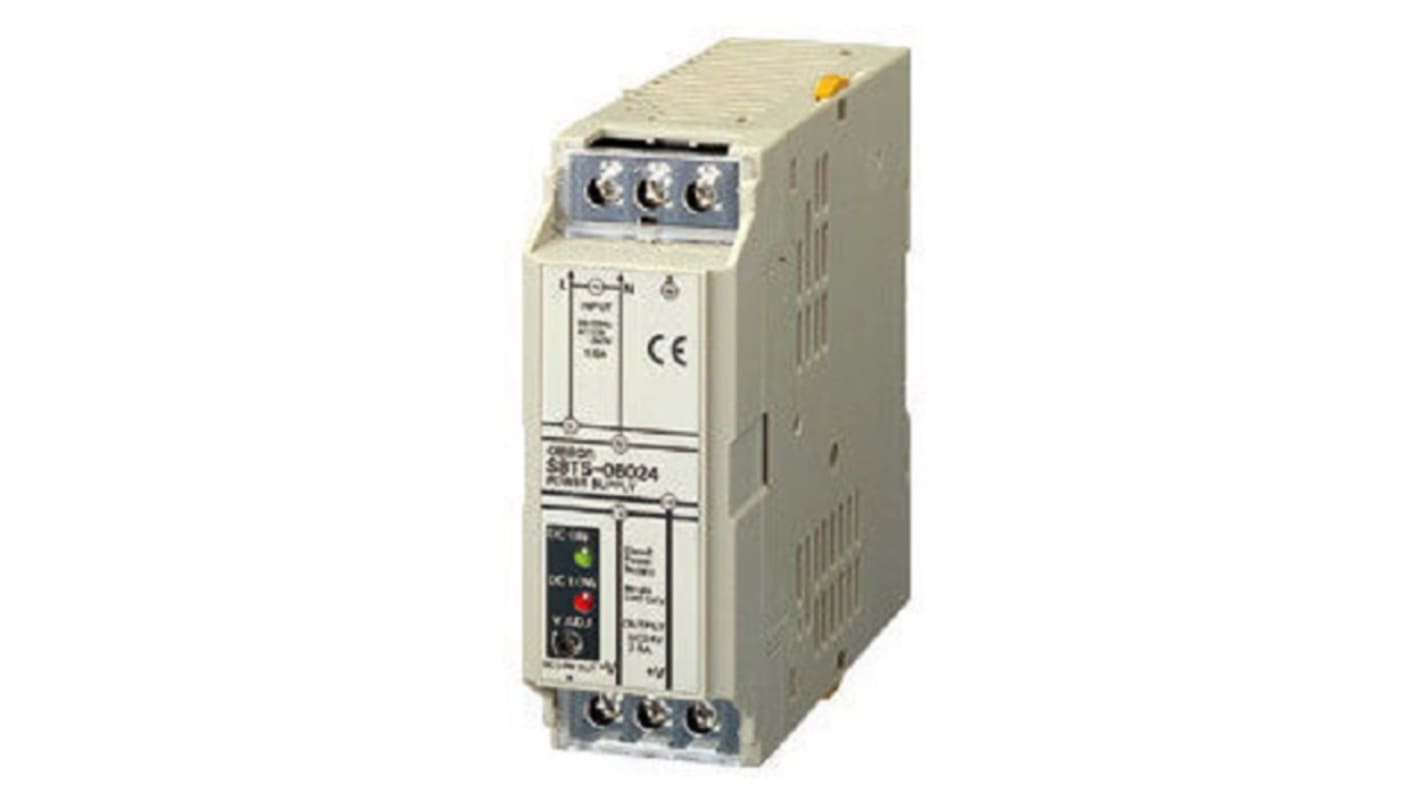

S8TS Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.5A Output, 60W

Modular units which can be connected together (4 unit’s max. on 24Vdc and 12Vdc, 2 units on 5Vdc)
Up to 10A max. output (+1 unit for redundancy -12V and 24V units only)
On board (bus style) connections for AC/DC (same DC voltages only)
DC outputs can be combined or used separately
DC voltage low indication and alarm on each unit
Overload/Over-voltage protection
EMI to EN50081-1, FCC-B
Under-voltage detection and LED indicator

EN60950, UL1950, CSA22.2-14-950.

UL Recognised; UL Recognised for Canada

The Omron switch mode power supply is a block-type unit designed to mount onto DIN rails, offering a versatile solution for various power requirements. It encompasses a broad power range, with one model covering 30 to 120 W for 12 V models and another covering 60 to 240 W for 24 V models. Its modular design enables easy creation of multi-power supply configurations by connecting different output power supplies together, including 5 V, 12 V, and 24 V models. Additionally, it supports the creation of N+1 redundant systems for enhanced reliability, particularly with 12 V and 24 V models.

RoHS compliant
Operating temperatures to -20°C
