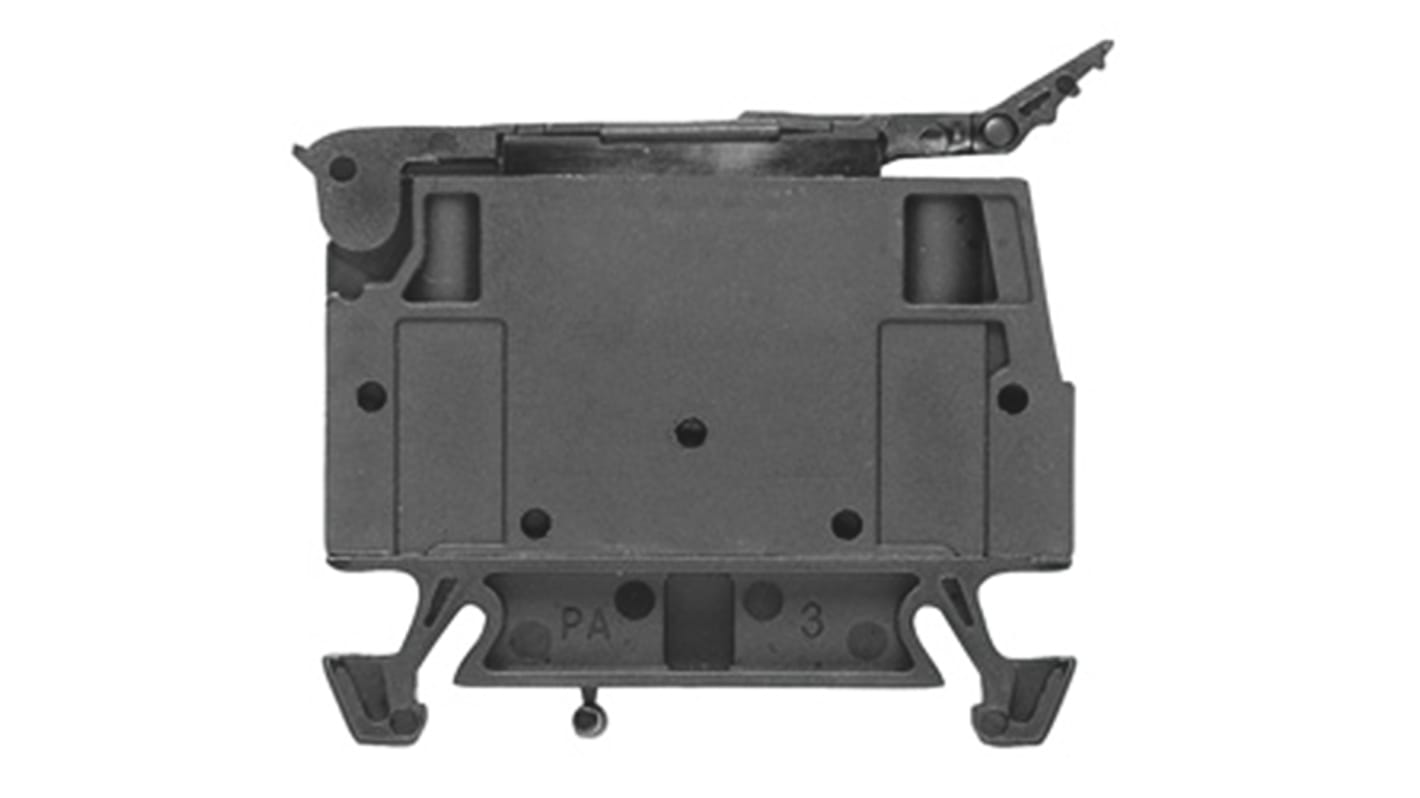

Weidmuller W Series Black Fused DIN Rail Terminal, 4mm², Single-Level, Screw Termination, Fused
- RS Stock No.:
- 823-9543
- Mfr. Part No.:
- 1880420000
- Manufacturer:
- Weidmüller
Stock check temporarily unavailable - call for stock availability
Price 1 Pack of 5
€21.39
(exc. VAT)
€26.31
(inc. VAT)
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | €21.39 | €4.278 |
*price indicative
- RS Stock No.:
- 823-9543
- Mfr. Part No.:
- 1880420000
- Manufacturer:
- Weidmüller
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
WSI Fuse Terminals
W-Series (WSI) fuse terminals.
Screw connection
Weidmüller Series W Fused Din Rail Terminal, 6.3 A Current Rating , Screw Termination - 1880420000
This Weidmüller fused DIN rail terminal with a current rating of 6.3 A and a voltage rating of 150 V, provides a reliable solution for electrical connections. Its screw termination method ensures a secure connection, meeting the IEC 60947-7-3 standards. The terminal is suitable for use in various applications requiring a compact and efficient solution.
Features & Benefits
• The terminal features screw connections for easy and secure terminations
• It can accommodate wire cross-sections from 22 to 10 AWG and cable CSA of 4 mm²
• With a temperature rating from -50°C to +120°C, it offers reliable performance in extreme conditions
• The terminal is compatible with TS32 and TS35 rail types, providing flexibility in installation
• Its black colour and compact design make it suitable for various installations
• It can accommodate wire cross-sections from 22 to 10 AWG and cable CSA of 4 mm²
• With a temperature rating from -50°C to +120°C, it offers reliable performance in extreme conditions
• The terminal is compatible with TS32 and TS35 rail types, providing flexibility in installation
• Its black colour and compact design make it suitable for various installations
Applications
• Ideal for industrial control panels and electrical distribution systems
• Suitable for automation and machinery applications requiring compact terminations
• Used in power distribution and control cabinets for secure wire terminations
• Suitable for automation and machinery applications requiring compact terminations
• Used in power distribution and control cabinets for secure wire terminations
Can it accommodate wire cross-sections of 22 to 10 AWG?
Yes, it can accommodate wire cross-sections of 22 to 10 AWG.
Will it support a cable CSA of 4 mm²?
Yes, it will support a cable CSA of 4 mm².
Is the terminal compatible with TS32 and TS35 rail types?
Yes, the terminal is compatible with TS32 and TS35 rail types.
Can it operate in temperatures ranging from -50°C to +120°C?
Yes, it can operate in temperatures ranging from -50°C to +120°C.
How many connectors does the terminal feature?
The terminal features multiple connectors for secure and reliable connections.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
---|---|
Colour | Black |
Number of Levels | Single |
American Wire Gauge | 22 → 10AWG |
Series | W |
Termination Method | Screw |
Cable CSA | 4mm² |
Fused | Yes |
Current Rating | 6.3A |
Voltage Rating | 150 V ac/dc |
Pitch | 9.1mm |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +120°C |
Standards Met | IEC 60947-7-3 |
