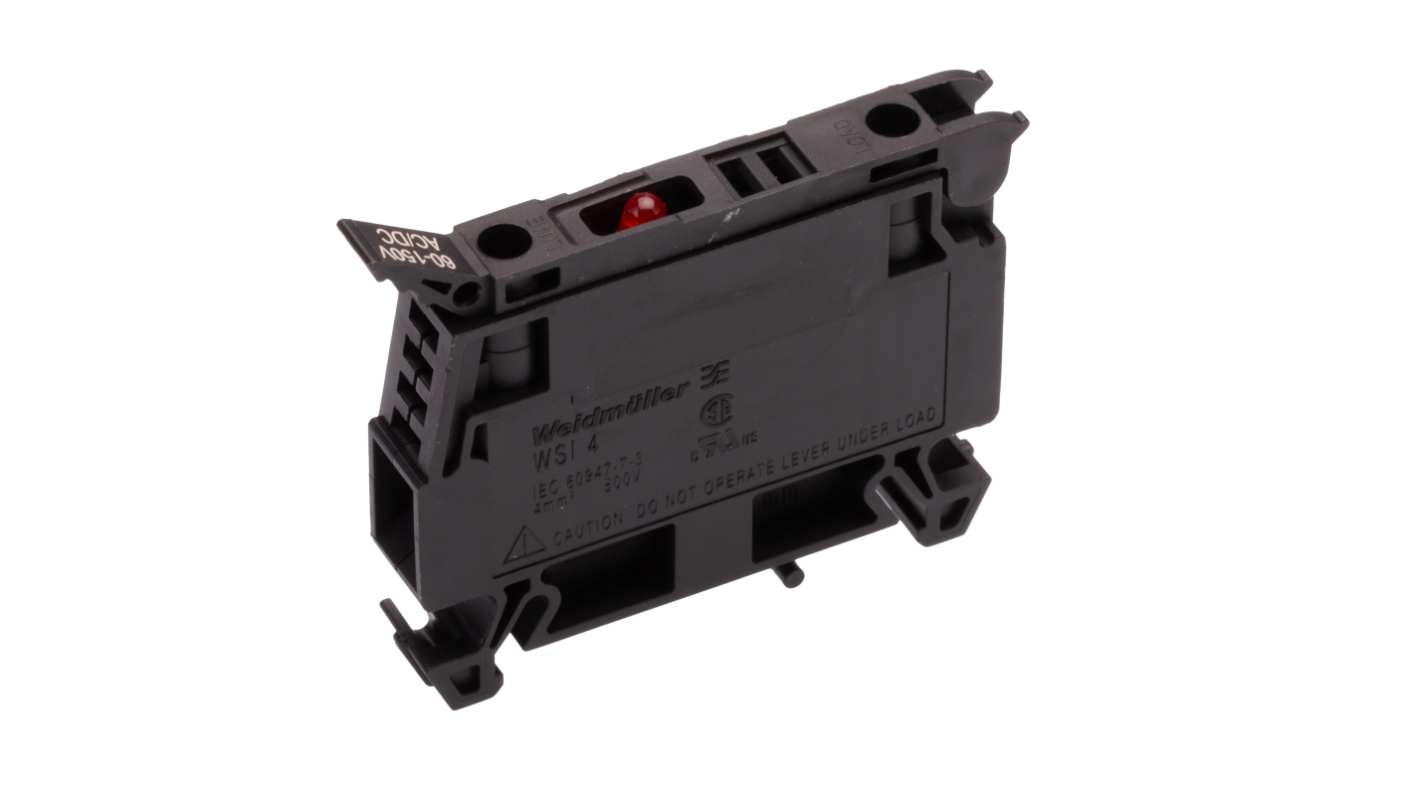

Weidmuller W Series Black Fused DIN Rail Terminal, 4mm², Single-Level, Screw Termination, Fused

Want to connect two wires on a DIN rail? Turn to this Weidmuller fused DIN rail terminal. Simply insert a conductor into each of its sides and secure them with screws for a secure connection you can count on. Harsh conditions are no match for this unit, thanks to its broad operating temperature range between -50°C and +120°C. Its voltage rating of 150V AC/DC means it's suitable for use in many electrical systems.

• Integrated fuse for protection against electrical damage
• Compact dimensions of 50.7 (H) x 8 (W) x 42.5mm (D) to maximise space in your setup
• Light weight of just 10.9g to place minimal strain on your DIN rail
• LED indicator makes it a breeze to monitor its status
• Burning stops in 10 seconds or less for enhanced safety

• HVAC systems
• Lighting networks
• Industrial control and automation
• Automotive electronics
• Telecommunications equipment

You can wire this terminal block using wires ranging in size from 22 to 12AWG, so it's a versatile option.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
