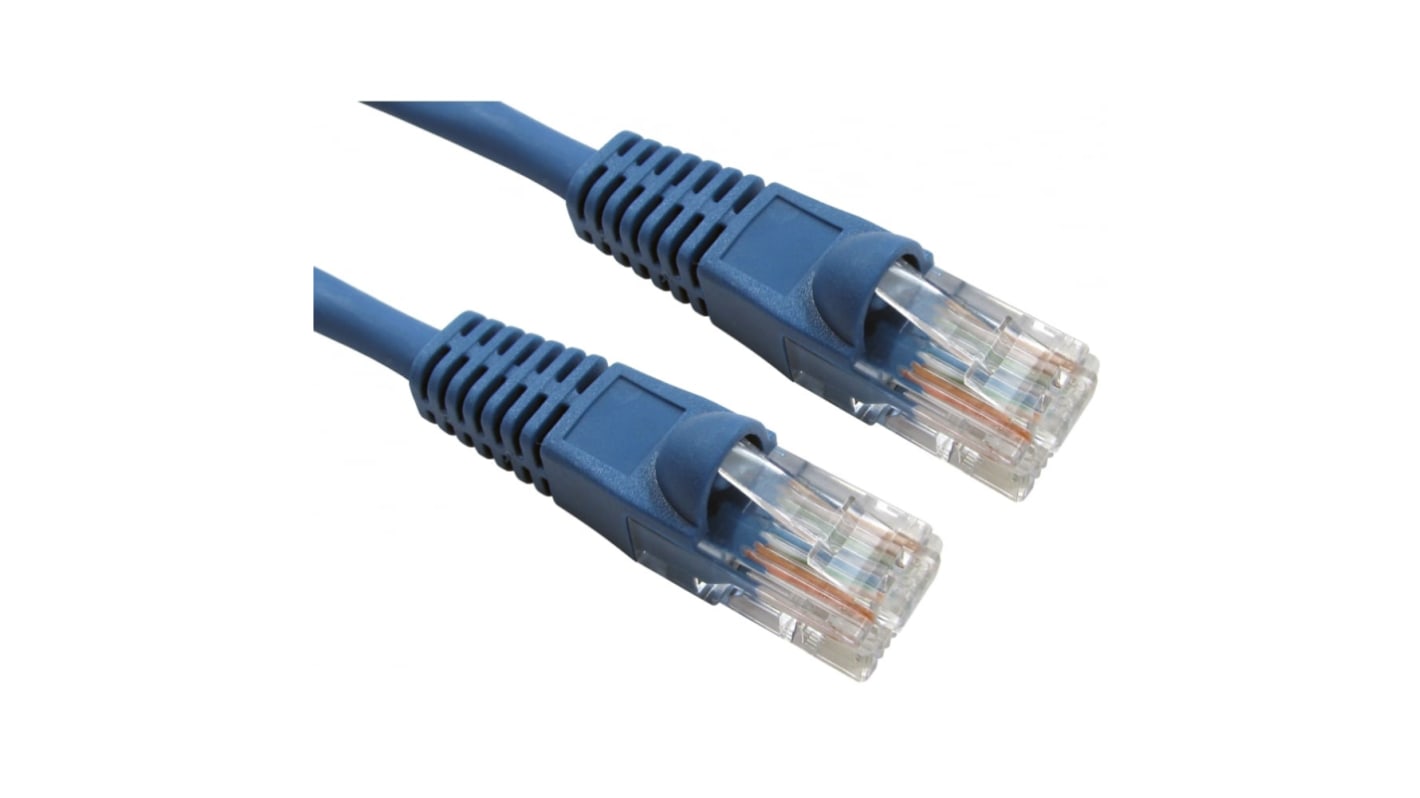

RS PRO, 1m Cat5e, Blue RJ45 to Male RJ45 Male, UTP Unshielded, Terminated LSZH Sheath
- RS Stock No.:
- 286-3028
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
€6.27
(exc. VAT)
€7.71
(inc. VAT)
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | €6.27 |
*price indicative
- RS Stock No.:
- 286-3028
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Length | 1m | |
LAN Category | Cat5e | |
Terminated/Unterminated | Terminated | |
Shield Type | UTP | |
Connector 1 Gender | Male | |
Connector 1 Number of Contacts | 8 | |
Connector 1 | RJ45 | |
Connector 1 Orientation | Straight | |
Connector 2 | RJ45 | |
Connector 2 Number of Contacts | 8 | |
Connector 2 Gender | Male | |
Connector 2 Orientation | Straight | |
Shielded/Unshielded | Unshielded | |
Outer Sheath Material | LSZH | |
Sheath Colour | Blue | |
Wiring Configuration | Straight Through | |
Core Strands | 7/0.196 | |
Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
Cable Shape | Round | |
Current Rating | 2.8A | |
American Wire Gauge | 24AWG | |
Voltage Rating | 300 | |
Outer Diameter | 5.4mm | |
Standards Met | ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2 | |
Capacitance | ≤5.6nFnF/100m | |
Cross Sectional Area | 0.1645mm² | |
Number of Strands | 8 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Length 1m | ||
LAN Category Cat5e | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 RJ45 | ||
Connector 1 Orientation Straight | ||
Connector 2 RJ45 | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 Gender Male | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Outer Sheath Material LSZH | ||
Sheath Colour Blue | ||
Wiring Configuration Straight Through | ||
Core Strands 7/0.196 | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Cable Shape Round | ||
Current Rating 2.8A | ||
American Wire Gauge 24AWG | ||
Voltage Rating 300 | ||
Outer Diameter 5.4mm | ||
Standards Met ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2 | ||
Capacitance ≤5.6nFnF/100m | ||
Cross Sectional Area 0.1645mm² | ||
Number of Strands 8 | ||
