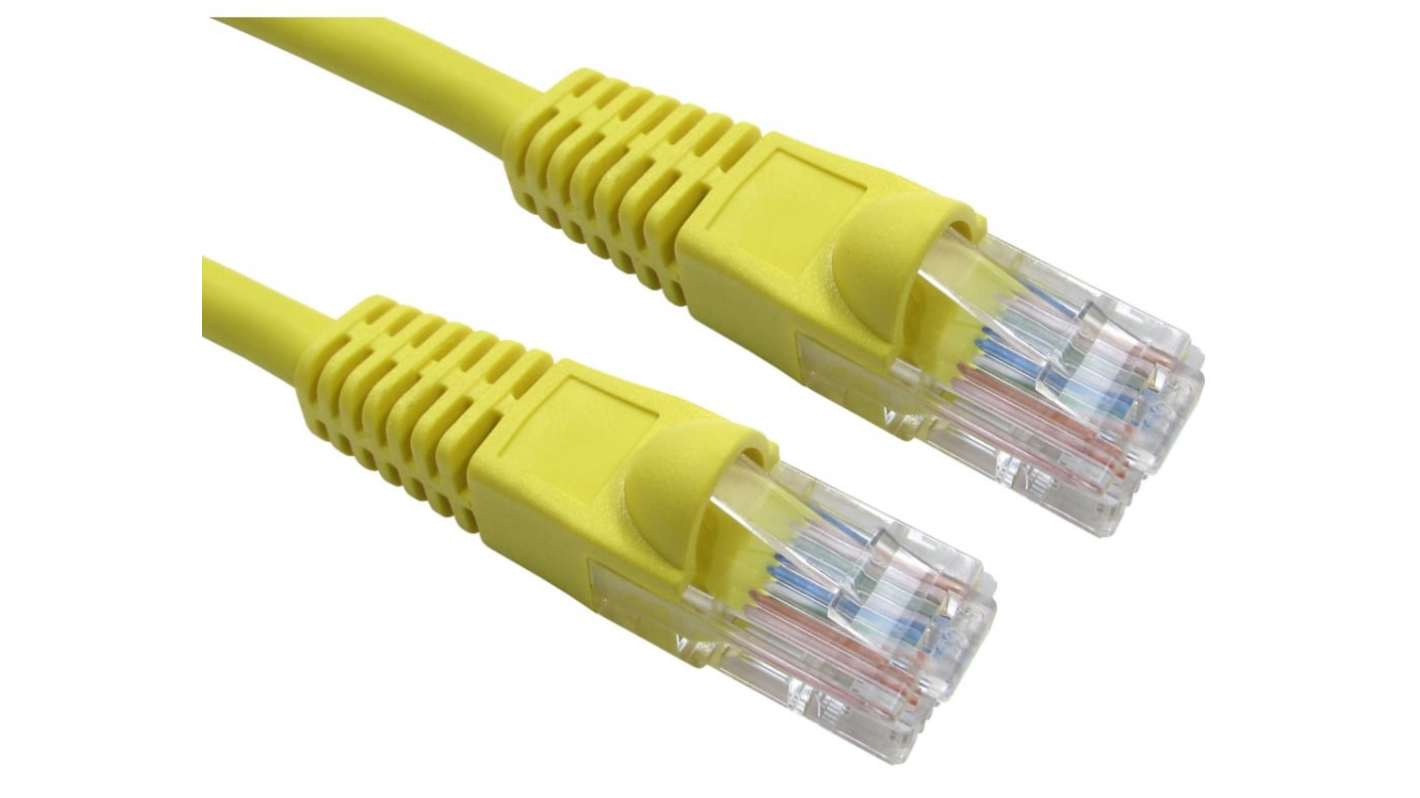

RS PRO, 1m Cat6, Yellow RJ45 to Male RJ45 Male, UTP Unshielded, Terminated LSZH Sheath
- RS Stock No.:
- 286-3171
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
€4.36
(exc. VAT)
€5.36
(inc. VAT)
- 41 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | €4.36 |
*price indicative
- RS Stock No.:
- 286-3171
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| LAN Category | Cat6 | |
| Length | 1m | |
| Terminated/Unterminated | Terminated | |
| Shield Type | UTP | |
| Connector 1 Number of Contacts | 8 | |
| Connector 1 Gender | Male | |
| Connector 1 Orientation | Straight | |
| Connector 1 | RJ45 | |
| Connector 2 Number of Contacts | 8 | |
| Connector 2 | RJ45 | |
| Connector 2 Gender | Male | |
| Connector 2 Orientation | Straight | |
| Shielded/Unshielded | Unshielded | |
| Sheath Colour | Yellow | |
| Outer Sheath Material | LSZH | |
| Wiring Configuration | Straight Through | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Core Strands | 7/0.19 | |
| Current Rating | 2.8A | |
| Conductor Strand Type | Stranded | |
| Cable Shape | Round | |
| Cross Sectional Area | 0.1645mm² | |
| Outer Diameter | 5.9mm | |
| American Wire Gauge | 24AWG | |
| Standards Met | EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2 | |
| Voltage Rating | 300V | |
| Number of Strands | 8 | |
| Capacitance | ≤5.6nFnF/100m | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
LAN Category Cat6 | ||
Length 1m | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Gender Male | ||
Connector 1 Orientation Straight | ||
Connector 1 RJ45 | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 RJ45 | ||
Connector 2 Gender Male | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Sheath Colour Yellow | ||
Outer Sheath Material LSZH | ||
Wiring Configuration Straight Through | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Core Strands 7/0.19 | ||
Current Rating 2.8A | ||
Conductor Strand Type Stranded | ||
Cable Shape Round | ||
Cross Sectional Area 0.1645mm² | ||
Outer Diameter 5.9mm | ||
American Wire Gauge 24AWG | ||
Standards Met EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2 | ||
Voltage Rating 300V | ||
Number of Strands 8 | ||
Capacitance ≤5.6nFnF/100m | ||
