    Amphenol RJF Female RJ45 Connector Cat5e, RJF

    RS Stock No.:
    448-1699
    Mfr. Part No.:
    RJF71B
    Manufacturer:
    Amphenol Socapex
    Amphenol Socapex
    View all Ethernet Connectors
    24 In stock for delivery within 2 working days
    Add to Basket
    units

    Added

    Price Each

    €74.60

    (exc. VAT)

    €91.76

    (inc. VAT)

    unitsPer unit
    1 - 4€74.60
    5 - 9€69.38
    10 +€64.16
    RS Stock No.:
    448-1699
    Mfr. Part No.:
    RJF71B
    Manufacturer:
    Amphenol Socapex
    COO (Country of Origin):
    FR

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    FR

    Product Details

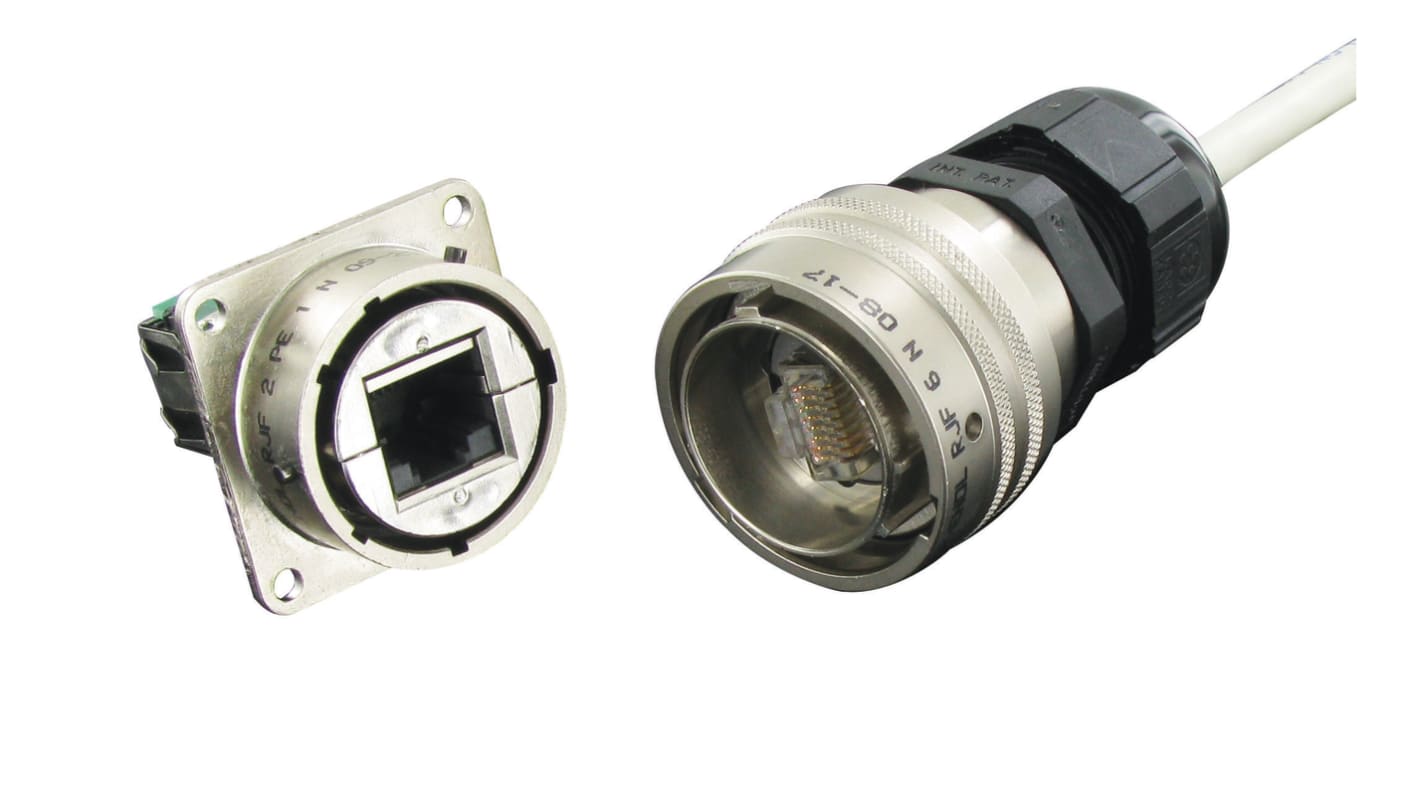

    Amphenol RJF RJ45 Ethernet Receptacles


    RJ Field series RJ45 receptacles that allow ethernet Cat 5e connection for10 BaseT or 100 BaseTX networks to be used in harsh environments. These RJF ethernet receptacles are shock, vibration and traction resistant, have 4 positon mechanical coding/polarization and are connected to an RJ Field plug using a MIL-C-26482 type bayonet coupling mechanism. No field cabling tools are required.

    The female RJ45 is soldered on to a PCB allowing for connection to various back terminations with either another female RJ45, an RJ45 cordset or an IDC module. A patented RJStop® system allows a standard RJ45 cordset to be used. These RJ Field receptacles have a metal shell with a black coated cadmium plating.

    Applications:


    • Robotics
    • Industrial process control
    • CNC machines
    • Motion control
    • Data acquisition in harsh environments

    Amphenol RJF series RJ45 range includes the following:


    • Stock number 447-9999 is an RJ Field receptacle with a square flange with 4 mounting holes
    • Stock number 448-1699 is a jam nut receptacle
    • Stock number 448-1728 is a metallic dust cap for use with the square flange metallic receptacle with IP68
    • Stock number 448-1734 is a metallic dust cap for use with the jam nut receptacle.
    • A panel gasket is also available for the square flange receptacle, see stock number 448-1740

    Note

    For suitable patch leads see Stock No. 185-9617 (typical of range)

    Specifications

    AttributeValue
    GenderFemale
    Ethernet Connector TypeRJ45 Connector
    LAN CategoryCat5e
    Number of Ports1
    Mounting TypeJam Nut
    Number of Ways8
    Shield TypeShielded
    OrientationStraight
    IP RatingIP68
    Length41.3mm
    Width41.3mm
    Depth39.1mm
    Series NumberRJF
    SeriesRJF
    Contact MaterialCopper Alloy
    Contact PlatingGold
