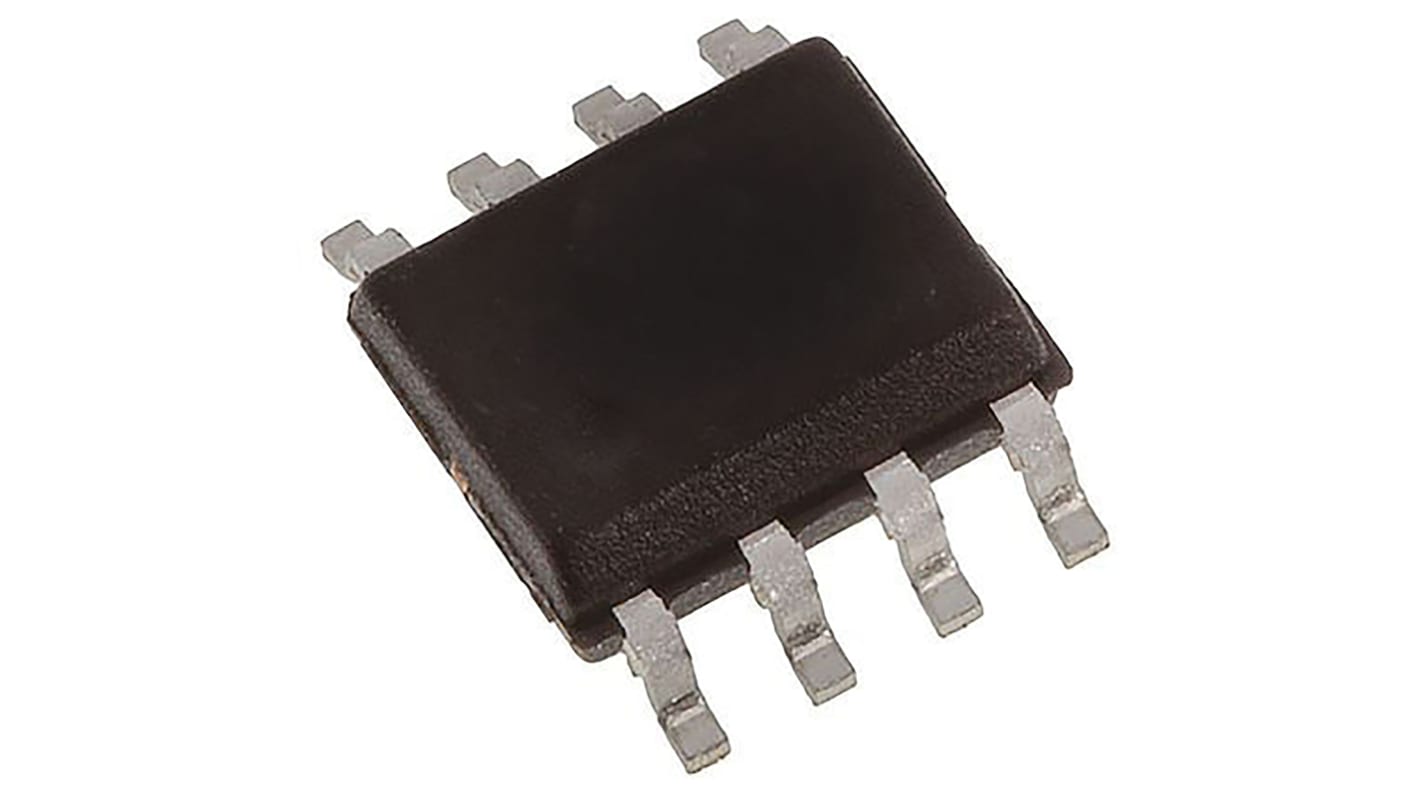

Infineon 64 kB 2 Wire I2C FRAM 8-Pin SOIC, FM24CL64B-G
- RS Stock No.:
- 125-4213
- Mfr. Part No.:
- FM24CL64B-G
- Manufacturer:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
€4.46
(exc. VAT)
€5.48
(inc. VAT)
Temporarily out of stock
- 1,460 unit(s) shipping from 18 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | €2.23 | €4.46 |
| 10 - 38 | €1.68 | €3.36 |
| 40 - 98 | €1.595 | €3.19 |
| 100 + | €1.495 | €2.99 |
*price indicative
- RS Stock No.:
- 125-4213
- Mfr. Part No.:
- FM24CL64B-G
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | FRAM | |
| Memory Size | 64kB | |
| Organisation | 8K x 8 bit | |
| Interface Type | 2 Wire I2C | |
| Data Bus Width | 8bit | |
| Maximum Random Access Time | 550ns | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 1MHz | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Standards/Approvals | No | |
| Width | 3.98 mm | |
| Length | 4.97mm | |
| Height | 1.38mm | |
| Maximum Operating Temperature | 85°C | |
| Automotive Standard | AEC-Q100 | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Supply Voltage | 3.65V | |
| Minimum Supply Voltage | 2.7V | |
| Number of Words | 8K | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type FRAM | ||
Memory Size 64kB | ||
Organisation 8K x 8 bit | ||
Interface Type 2 Wire I2C | ||
Data Bus Width 8bit | ||
Maximum Random Access Time 550ns | ||
Mount Type Surface | ||
Maximum Clock Frequency 1MHz | ||
Package Type SOIC | ||
Pin Count 8 | ||
Standards/Approvals No | ||
Width 3.98 mm | ||
Length 4.97mm | ||
Height 1.38mm | ||
Maximum Operating Temperature 85°C | ||
Automotive Standard AEC-Q100 | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Supply Voltage 3.65V | ||
Minimum Supply Voltage 2.7V | ||
Number of Words 8K | ||
FRAM, Cypress Semiconductor
Ferroelectric Random Access Memory (F-RAM) is energy-efficient and it has the highest-reliability of the non-volatile RAMs for both serial and parallel interfaces. Parts with suffix A are designed for automotive applications and are AEC-Q100 qualified.
Nonvolatile Ferroelectric RAM Memory
Fast write speed
High endurance
Low power consumption
FRAM (Ferroelectric RAM)
FRAM (Ferroelectric Random Access Memory) is a non-volatile memory that uses ferroelectric film as a capacitor for storing data. Possessing characteristics of both ROM and RAM devices, F-RAM features high-speed access, high endurance in write mode, low power consumption, non-volatility, and excellent tamper resistance. It is therefore ideal memory for use in smart cards which need high security and low power consumption, as well as cellular phones and other devices.
