    nVent SCHROFF minipac Series Black Aluminium Enclosure, IP40, Natural Lid, 160 x 76.2 x 112.3mm

    nVent SCHROFF
    RS Stock No.:
    783-3784
    Mfr. Part No.:
    24814-025
    Manufacturer:
    nVent SCHROFF
    View all General Purpose Enclosures
    Temporarily out of stock - back order for despatch 01-02-2024, delivery within 2 working days
    Add to Basket
    units

    Added

    Price Each

    €38.65

    (exc. VAT)

    €47.54

    (inc. VAT)

    unitsPer unit
    1 - 9€38.65
    10 - 14€37.57
    15 +€36.90
    RS Stock No.:
    783-3784
    Mfr. Part No.:
    24814-025
    Manufacturer:
    nVent SCHROFF

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

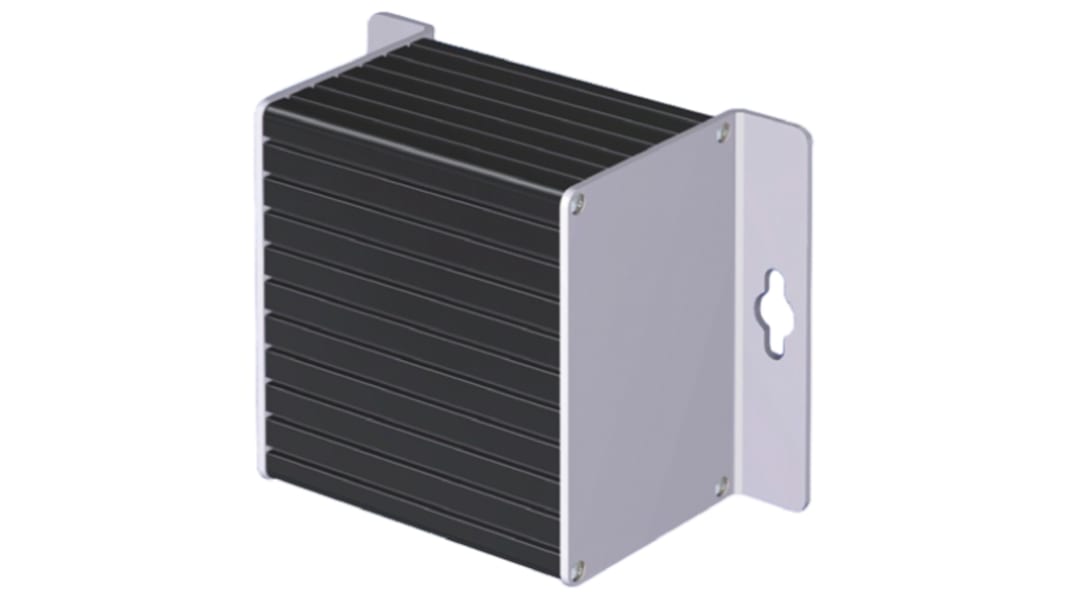

    IP40 minipac Diecast Aluminium Enclosure


    The Schroff minipac is a robust extruded aluminium enclosure designed to house printed circuit boards (PCBs). This versatile little case can accommodate applications such as a single-board computer or COM module, e.g. in industry, railway systems, measurement and control systems, data systems or network systems. The enclosure is available in two different designs, trapezoidal and rectangular, for different PCB widths and depths.

    Three versions available, desktop, wall mount or DIN rail
    Accommodates standardised and non-standardised PCBs
    High heat dissipation through aluminium case
    IP40 protection
    Black anodised body with plain anodised cover plates

    Trapezium shape


    Accommodates up to 3 PCBs of different heights - 50, 60 or 65 mm and board depth 100 or 160 mm
    PCB thickness 1.6 mm, spacing 15.24 mm (3 HP)
    Stock no. 783-3781 - no mounting option
    Stock no. 783-3790 - for wall mounting on long side of trapezoid
    Stock no. 783-3793 - for wall mounting on short side of trapezium
    Stock no. 783-3797 - for mounting on a DIN support rail, DIN 43880

    Rectangular shape


    Accommodates up to 4 standardised PCBs in euroboard format, height 100 mm (3 U) or up to 8 non-standardised PCBs, height 60 mm and board depth 160 mm
    PCB thickness 1.6 mm, spacing 15.24 mm (2 HP)
    Stock no. 783-3775 - desktop version
    Stock no. 783-3784 - for wall mounting on long side
    Stock no. 783-3787 - for wall mounting on short side

    Supplied with

    Aluminium extrusion, 2 lateral cover plates, fixing material kit and user manual.

    Specifications

    AttributeValue
    Body MaterialAluminium
    External Length160 mm
    External Height112.3 mm
    External Width76.2 mm
    External Dimensions160 x 76.2 x 112.3mm
    IP RatingIP40
    ColourBlack
    Lid ColourNatural
    ShieldedNo
    Seriesminipac
