Select all	Attribute	Value
	Brand	RS PRO
	Display Type	TFT LCD
	Manufacturer Part No.	PI3102ig
	Display Resolution	1024 x 600
	Number of Ports	4
	Port Type	COM1: RS422/RS485, RS232, RS485, ETHERNET, USB 2.0 Host, USB 2.0 Client, SD Card Slot
	Processor Type	ARM Cortex
	Processor Speed	1.2GHz
	Onboard Memory	128M FLASH, 128M DDRAM
	Display Size	10.2 in
	Backlighting	Yes
	IP Rating	IP65
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	55°C
	Dimensions	272 x 190.7 x 41.5mm
	Length	272mm
	Supply Voltage	12 → 28 V DC
	Width	272mm
	Display Colour	Colour
	Depth	41.5mm
	Interface	COM 1 Serial, Ethernet USB, SD Card

	Select all
	Brand RS PRO
	Display Type TFT LCD
	Manufacturer Part No. PI3102ig
	Display Resolution 1024 x 600
	Number of Ports 4
	Port Type COM1: RS422/RS485, RS232, RS485, ETHERNET, USB 2.0 Host, USB 2.0 Client, SD Card Slot
	Processor Type ARM Cortex
	Processor Speed 1.2GHz
	Onboard Memory 128M FLASH, 128M DDRAM
	Display Size 10.2 in
	Backlighting Yes
	IP Rating IP65
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 55°C
	Dimensions 272 x 190.7 x 41.5mm
	Length 272mm
	Supply Voltage 12 → 28 V DC
	Width 272mm
	Display Colour Colour
	Depth 41.5mm
	Interface COM 1 Serial, Ethernet USB, SD Card

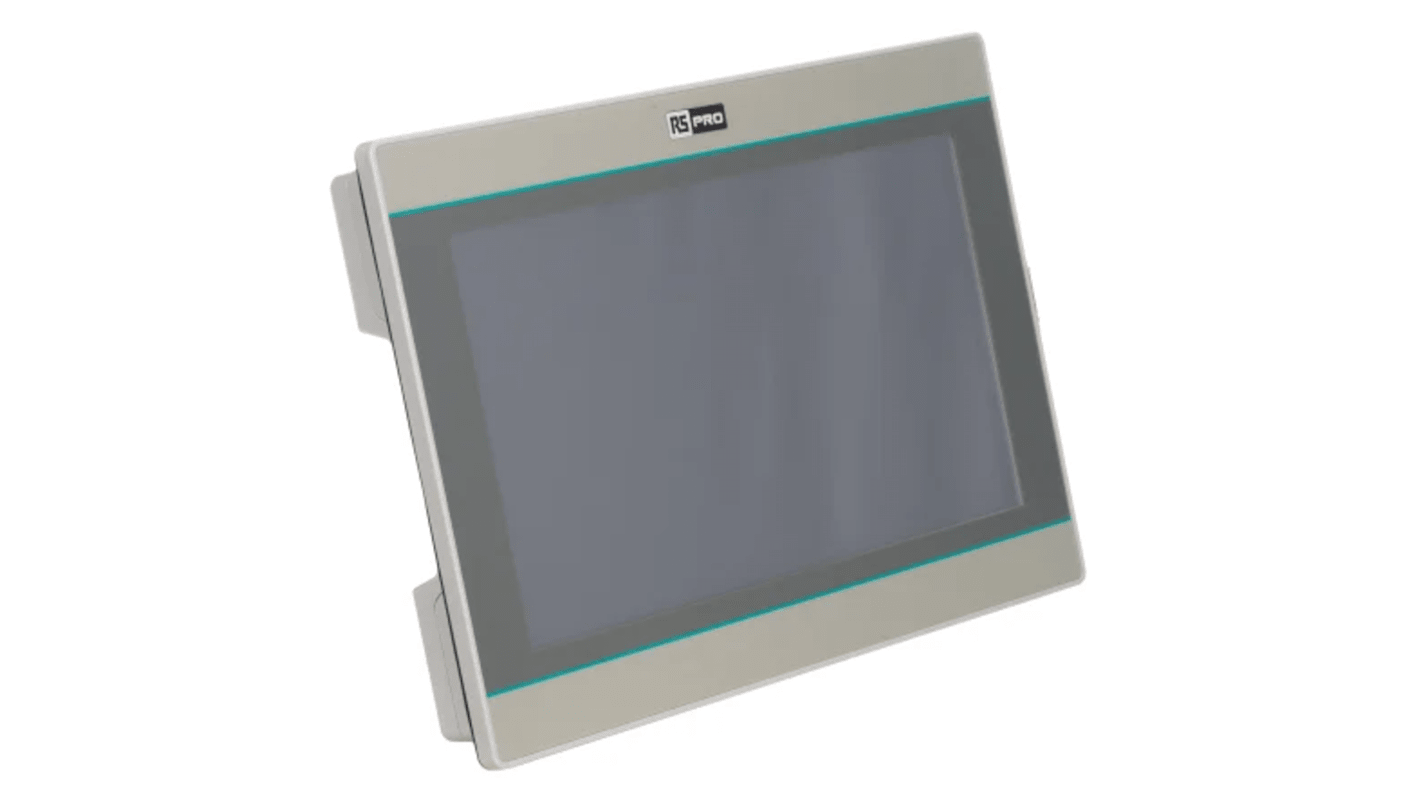

RS PRO HMI Panel - 10.2 in, TFT LCD Display, 1024 x 600

RS PRO 10.2in Touch Screen HMI, 1024 x 600 pixels, Cloud Enabled

Features and benefits

What is a HMI?

Why RS PRO?

Note

Related links
