Staubli SiliVolt-1V Series Red 1 mm² Hook Up Wire, 511/0.05 mm, 25m, Silicone Insulation

RS Stock No.:: 175-7466
Manufacturer:: Staubli

Staubli SiliVolt-1V Series Red 1 mm² Hook Up Wire, 511/0.05 mm, 25m, Silicone Insulation

3 In stock for delivery within 2 working days

Added

Price 1 Reel of 25 Metre(s)

€117.00

(exc. VAT)

€143.91

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 +	€117.00	€4.68
*price indicative

RS Stock No.:: 175-7466
Manufacturer:: Staubli

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

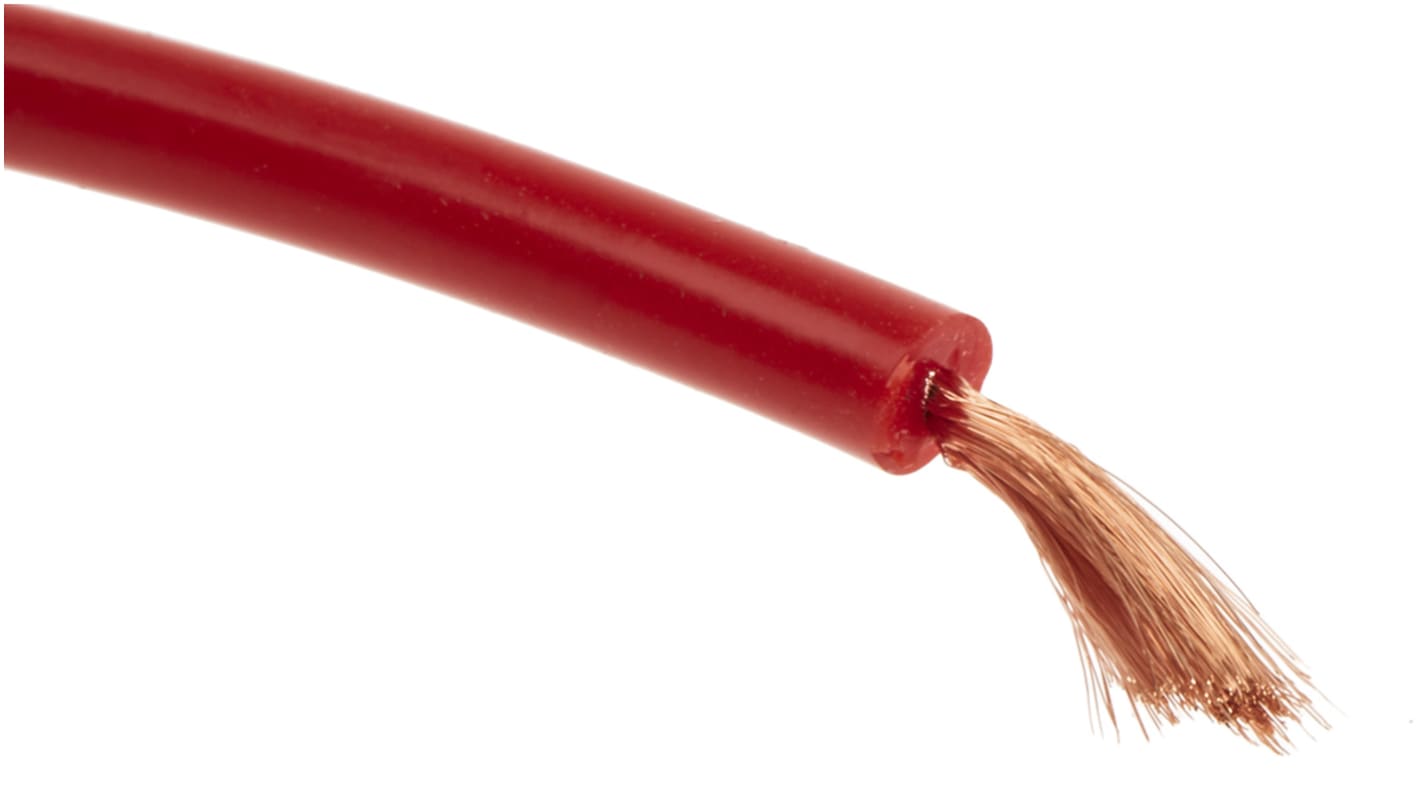

Staubli Harsh Environment Wire

The Staubli harsh environment wire has a 1mm² cross-sectional area, red sheath and 25m long reel. The conductor of wire is made of copper with highly flexible silicone insulation and the silicone ash produced after burning insulates the wires in case a fire strikes. This material property helps wire to withstand brief contact with the soldering iron. It has 256 copper strands.

Features and Benefits

• Good chemical tolerance
• Halogen-free and environment friendly
• High impact value
• Maximum elongation and tear strength
• Service temperature ranges between -50°C and 150°C
• Resistant to chemical, impact and radiation

Applications

• Electrical installations in industries
• Marking up maximum flexibility test leads
• Wiring very flexible parts

Specifications

Attribute	Value
Cross Sectional Area	1 mm²
Sheath Colour	Red
Cable Shape	Single Core
Core Strands	511/0.05 mm
Length	25m
Insulation Material	Silicone
Outer Diameter	3.9mm
Voltage Rating	1.5 kV
Maximum Operating Temperature	+150°C
Minimum Operating Temperature	-50°C
Conductor Material	Copper
Cable Type	Harsh Environment
Series	SiliVolt-1V
Number of Strands	511
Size of Strands	0.05 Dia. mm
Resistant To	Chemical Resistant, Impact Resistant, Radiation Resistant
