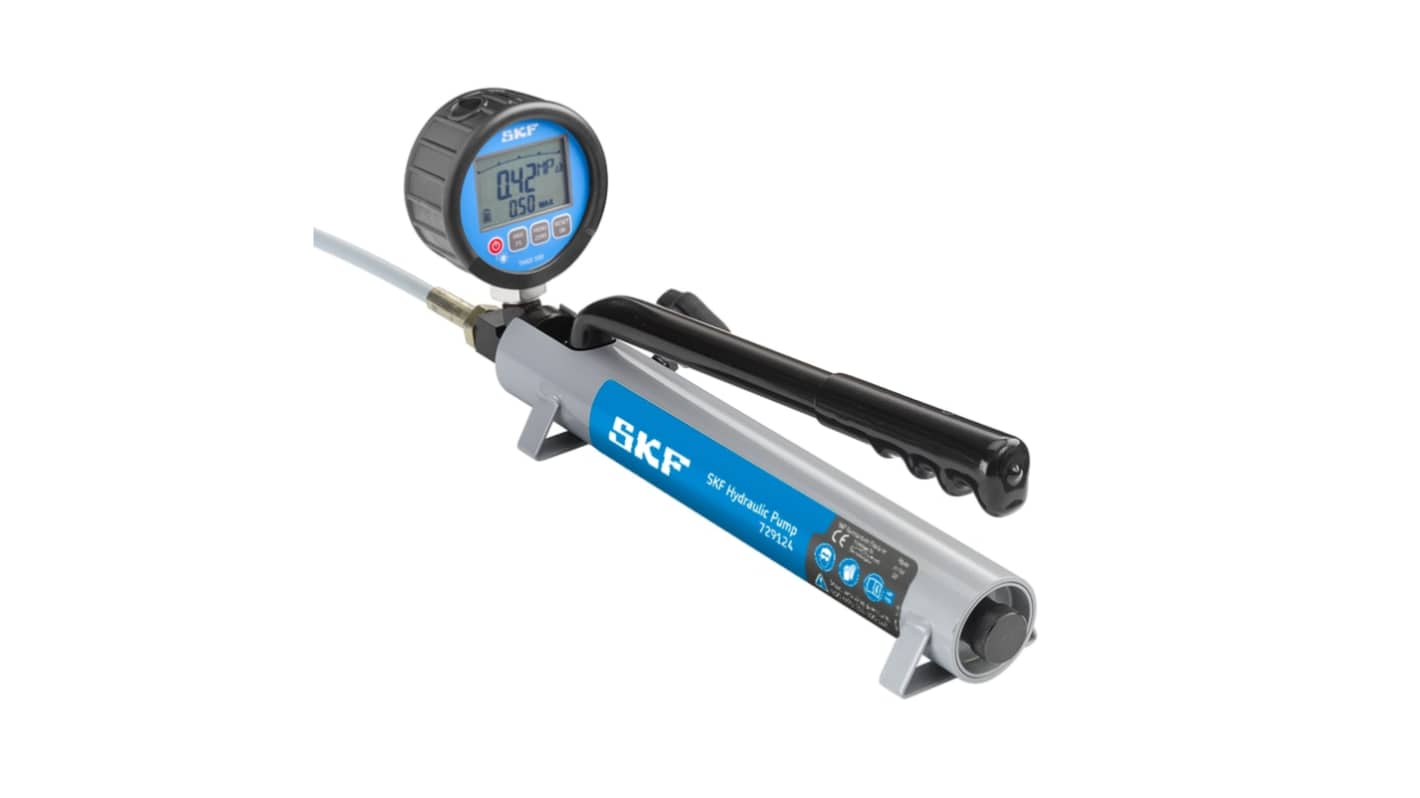

SKF 729124 DU Hydraulic Hand Pump, 250 cm³ Hydraulic, 1000 bar

This hydraulic hand pump is a portable manual unit designed to deliver high-pressure fluid for industrial tasks in automation, electronics and mechanical settings. It operates as a two-stage pump to generate fine control at high pressures while being manually actuated for field or workshop use.

• Two-stage displacement provides coarse and fine control for precision work
• Maximum operating pressure 1000 bar enables high-pressure applications
• Usable oil capacity 250 cm3 reduces refill frequency during tasks
• Maximum handle effort 300 N limits user strain during operation
• Port size 1/4 in G allows straightforward connection to standard fittings
• Steel construction offers robust durability for repeated use

• Suitable for pressure testing hydraulic components in production lines
• Ideal for calibrating pressure sensors and transducers
• Used for manual actuation in maintenance and repair of hydraulic systems
• Can be used for bench-top assembly tasks requiring controlled high pressure

It delivers a larger stroke of 5 ml for Rapid oil displacement and a finer stroke of 0.5 cm3 for precise pressure increases during high-pressure adjustments.

The pump weighs 4.5 kg and its Compact footprint supports easy transport and handheld positioning for on-site maintenance.

The fluid connection uses a G-thread standard to match common BSP parallel fittings and accessories.

The pump is configured with a length of 385mm, a height of 145mm and a width of 95mm for space planning.
