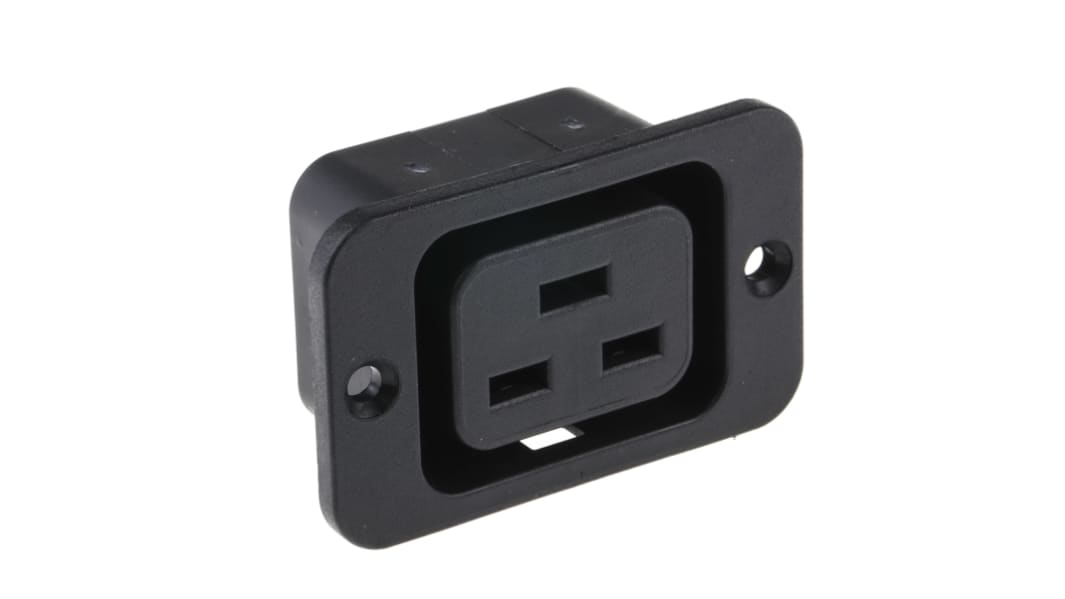

Schurter C19 Panel Mount IEC Socket, 20A, 250 V ac

  • RS Stock No. 418-965
  • Mfr. Part No. 4797.0000
  • Manufacturer Schurter
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

16A Flange Fixing IEC 320 Socket (C20)

250Vac/ 16A rated, 6.3 x 0.8 blade receptacles
For suitable plug see stock no. 295-8771

Note

All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. Their operating temperature is -40°C to +70°C

//media.rs-online.com/t_line/L295874-01.gif

Approvals

SEV; VDE; SEMKO; FIMKO; NEMKO; DEMKO

Specifications
Attribute Value
IEC Connector Type C19
Mounting Type Panel Mount
Gender Female
Current Rating 20A
Body Orientation Straight
Voltage Rating 250 V ac
33 Within 1 working day(s) (IE stock)
6245 Within 2 working day(s) (EU stock)
Unit of sale: Each
4.94
(exc. VAT)
6.08
(inc. VAT)
units
Per unit
1 - 9
€4.94
10 - 24
€4.74
25 - 49
€4.54
50 +
€4.34
