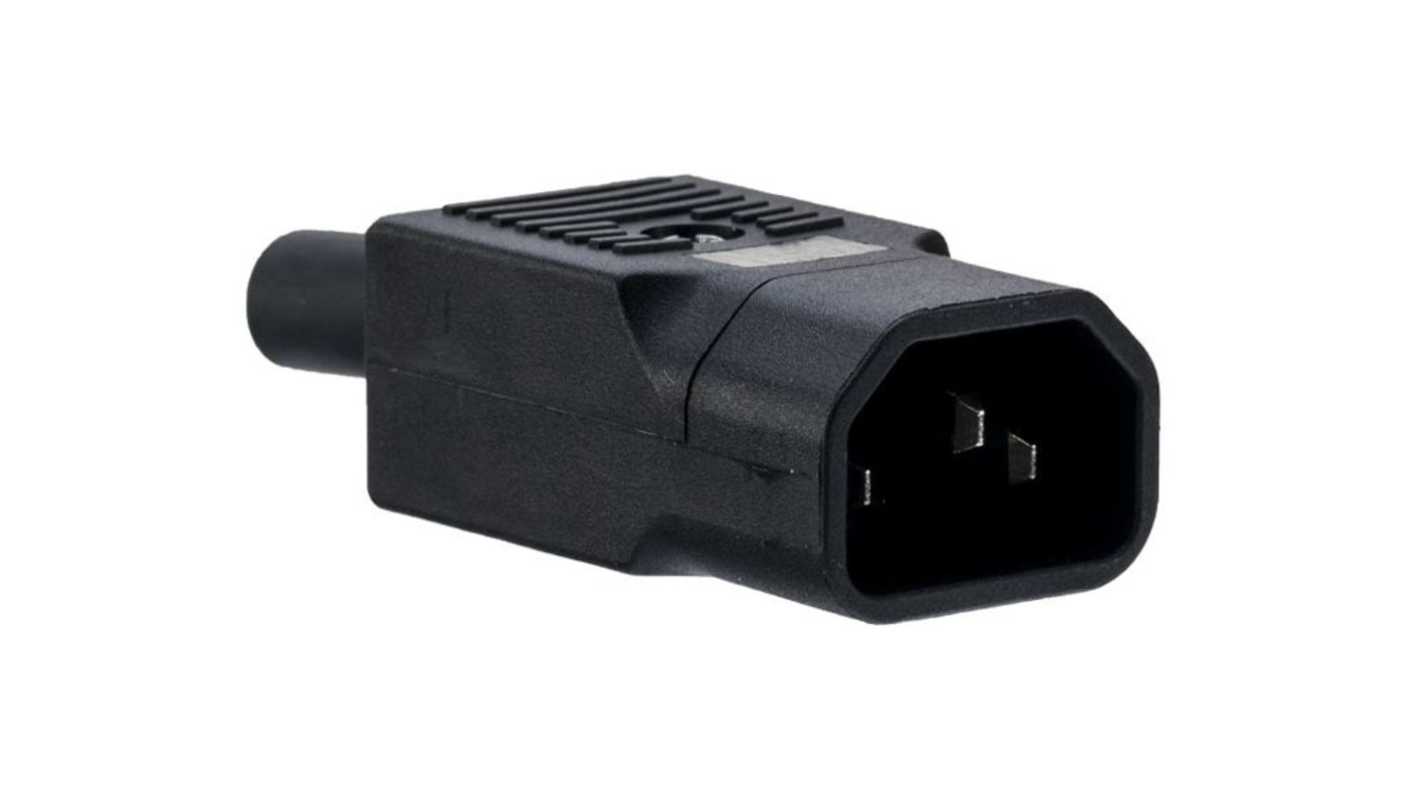

Bulgin C14 Cable Mount IEC Connector Male, 10A, 250 V

This Bulgin brand IEC C14 plug is a cable mounted connector that is compatible with C13 plugs, meaning it has a wide variety of applications, including desktop computers and instrument amplifiers. The accessible screw terminals result in a connector that is convenient to rewire if necessary.

C14 Options include:
295-8591 – Straight IEC Connector Male 10A, 250V
295-8614 – Right Angle IEC Connector Male 10A, 250V
449-938 - Right Angle IEC Connector Male, 10A, 250 V
449-922 – Straight IEC Connector Male, 10A, 250 V

Retaining clip available separately: RS stock no. 195-928.

UL recognised component, CSA certified, VDE, IMQ, BSI

The Bulgin IEC plug has a straight male C14 connector and a cable mount device. The plug connector is compatible with the C13 plug. It has a voltage rating of 250V ac and current rating of 10A.

Note:
Retaining clip is available separately.

Black straight plug
Easy to connect and rewirable
Screw terminal
Contact resistance is less than 10mΩ
Insulation resistance is greater than 10⁴MΩ
Operating temperature ranges between -40°C and +70°C
Withdrawal force 10N to 50N
Mouldings – Nylon for durability and safe operation, Flammability Rating UL94V-0
Contacts – Brass, Nickel Plated

Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives

UL approved
CSA certified
VDE
SEMKO
IMQ

UL recognised component, CSA certified, VDE, SEMKO, IMQ
