- RS Stock No.:
- 186-3078
- Manufacturer:
- RS PRO
229 In stock for delivery within 2 working days
Added
Price Each
€21.10
(exc. VAT)
€25.95
(inc. VAT)
Units | Per unit |
1 - 9 | €21.10 |
10 - 24 | €19.86 |
25 - 49 | €18.62 |
50 + | €17.12 |
- RS Stock No.:
- 186-3078
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

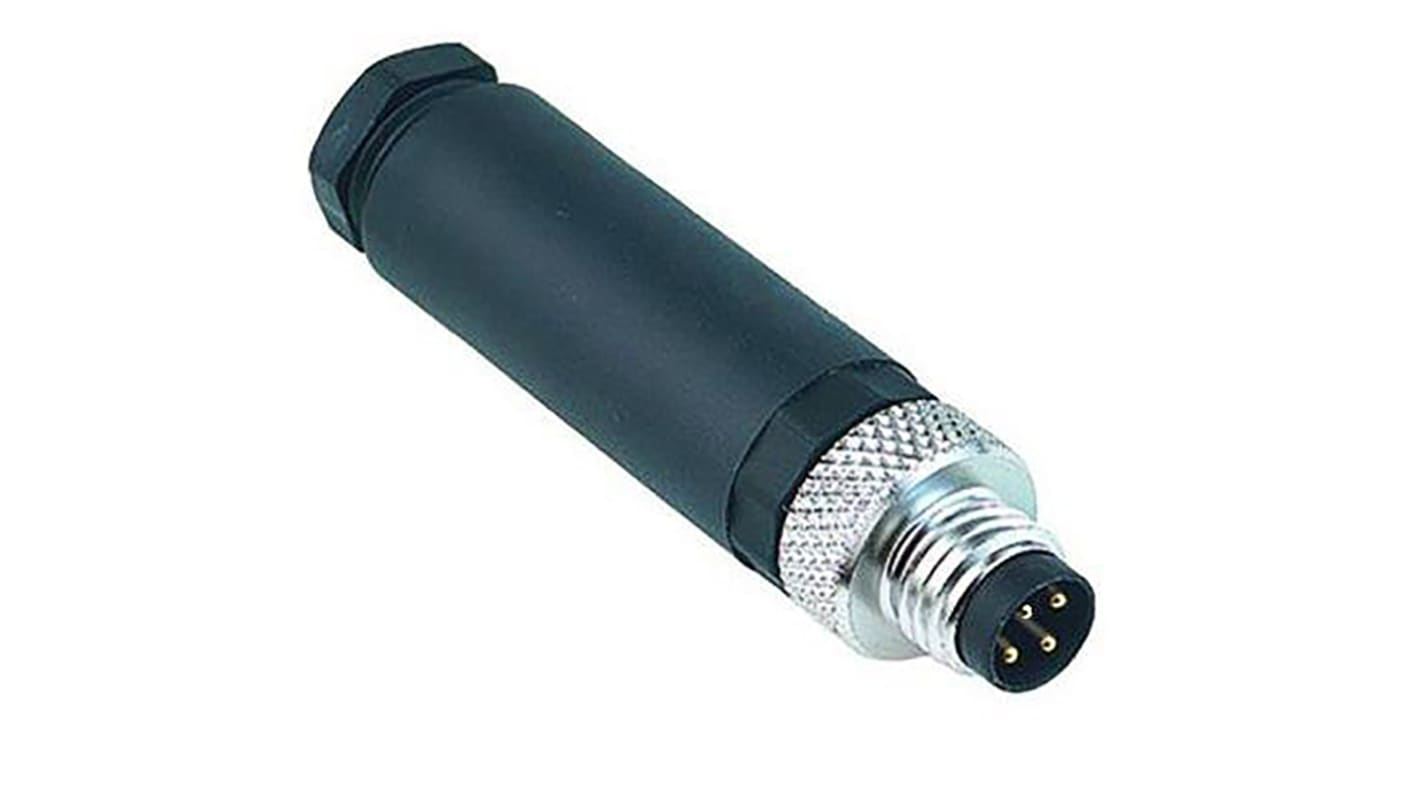

RS PRO M8 Male Field Connector Assembly, 4 Contact Socket
Brought to you under the trusted RS PRO brand, this range of M8 connector assemblies are commonly used in sensor and automation equipment. Cable mounted with a convenient cable gland and featuring an O-Ring connector, these cable assemblies offer a sturdy and reliable connection. These high quality and durable connectors feature an IP67 rating offering excellent protection suitable for a wide range of environments.
Features and benefits
- Insulation Resistance >= 100 MΩ
- Brass nickel plated coupling nut
- Neoprene O-Ring
- Screw Termination
- Field attachable
- IP67 rating offering excellent durability and protection
- Available in Male or Female
- M8 locking nut thread for a secure connection
- Wide operating temperature range
Application
Field wireable connectors are available in either male or female are an ideal solution for reliable automated connections, typically proximity sensors and reed switches. The locking thread nut determines the size which are most commonly M8 and M12. Many field wireable connectors offer an IP67 rating ensuring excellent protection from dust and water ingress. The M-style locking nuts also ensure a strong and reliable connection. These robust and versatile connectors are used in a wide range of areas including:
- Industrial
- Automotive
- Factories
- Food and beverage production
- Machinery and tooling
Specifications
Attribute | Value |
---|---|
Number of Contacts | 4 |
Mounting Type | Cable Mount |
Connector Size | M8 |
Plug/Socket | Plug |
Contact Gender | Male |
Termination Method | Screw |
IP Rating | IP67 |
Current Rating | 3.0A |
Body Orientation | Straight |
Voltage Rating | 30 V |
Mating Type | Threaded |
Housing Material | Nylon |
Pole Format | 4P |
Contact Plating | Gold |
Contact Material | Copper |
Maximum Operating Temperature | +75°C |
Minimum Operating Temperature | -25°C |
