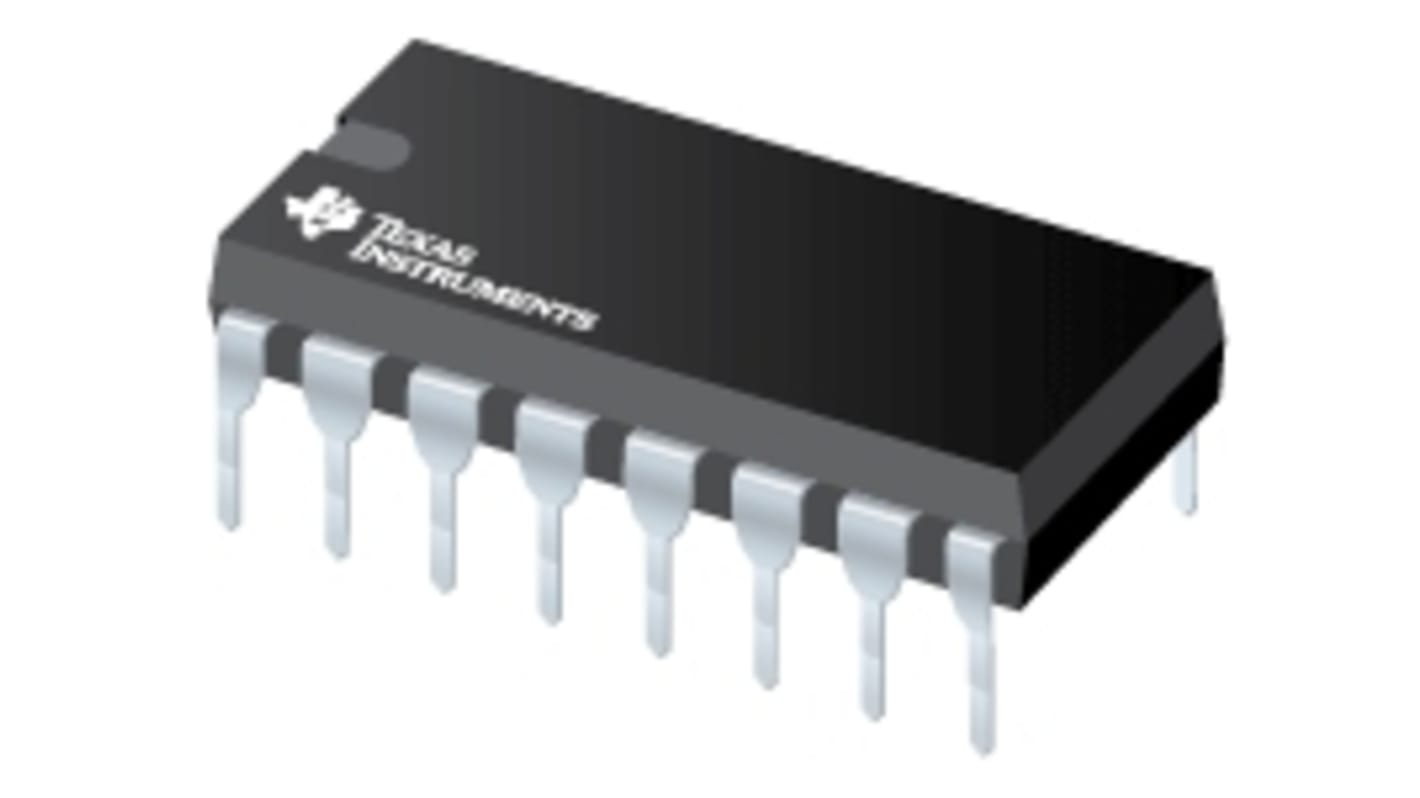

Texas Instruments CD4543BE Latch, CMOS, 16-Pin PDIP
- RS Stock No.:
- 252-0649
- Mfr. Part No.:
- CD4543BE
- Manufacturer:
- Texas Instruments
Bulk discount available
Subtotal (1 pack of 25 units)*
€12.35
(exc. VAT)
€15.20
(inc. VAT)
In Stock
- 775 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | €0.494 | €12.35 |
| 50 - 75 | €0.483 | €12.08 |
| 100 - 225 | €0.379 | €9.48 |
| 250 - 475 | €0.354 | €8.85 |
| 500 + | €0.346 | €8.65 |
*price indicative
- RS Stock No.:
- 252-0649
- Mfr. Part No.:
- CD4543BE
- Manufacturer:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | CD4000 | |
| Product Type | Latch | |
| Logic Function | Decoder | |
| Number of Channels | 1 | |
| Output Type | CMOS | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 3V | |
| Package Type | PDIP | |
| Pin Count | 16 | |
| Maximum Propagation Delay Time @ CL | 400ns | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 19.69mm | |
| Width | 6.6 mm | |
| Height | 5.08mm | |
| Series | CD4543BE | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Family CD4000 | ||
Product Type Latch | ||
Logic Function Decoder | ||
Number of Channels 1 | ||
Output Type CMOS | ||
Mount Type Surface | ||
Minimum Supply Voltage 3V | ||
Package Type PDIP | ||
Pin Count 16 | ||
Maximum Propagation Delay Time @ CL 400ns | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Length 19.69mm | ||
Width 6.6 mm | ||
Height 5.08mm | ||
Series CD4543BE | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
