Vishay 56 μH ±15% Ferrite Leaded Inductor, Max SRF:1kHz, 1.4A Idc, 1.3Ω Rdc, IHD
- RS Stock No.:
- 852-3700
- Mfr. Part No.:
- IHD1EB560L
- Manufacturer:
- Vishay
View all Leaded Inductors
Temporarily out of stock - back order for despatch 19-12-2023, delivery within 2 working days
Price Each (In a Pack of 50)
€4.821
(exc. VAT)
€5.93
(inc. VAT)
| units | Per unit | Per Pack* |
| 50 - 50 | €4.821 | €241.05 |
| 100 - 200 | €4.435 | €221.75 |
| 250 - 450 | €4.242 | €212.10 |
| 500 + | €3.856 | €192.80 |
| *price indicative | ||
- RS Stock No.:
- 852-3700
- Mfr. Part No.:
- IHD1EB560L
- Manufacturer:
- Vishay
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

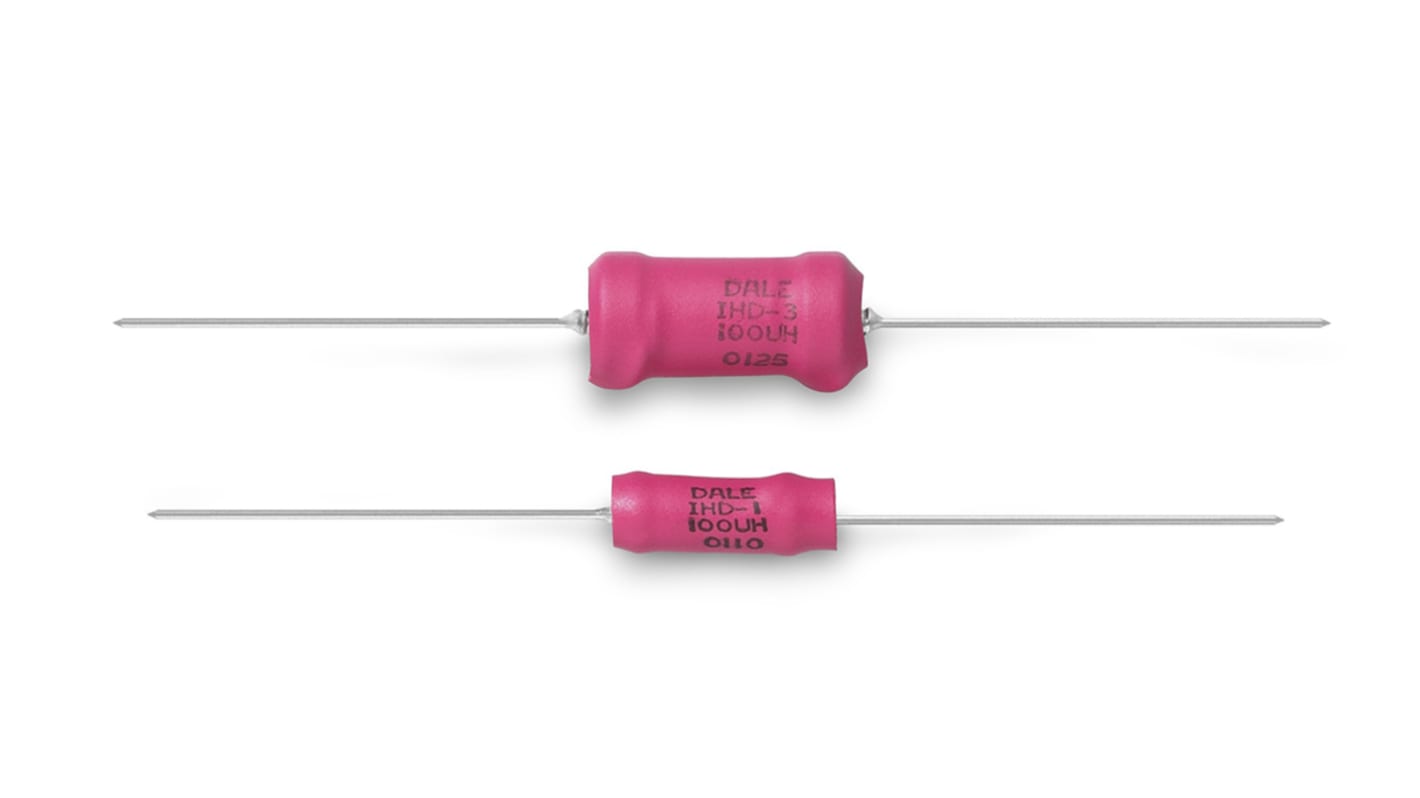

Vishay IHD1 Series Axial Inductor
The IHD1 series of Vishay filter inductors. All inductors will provide excellent reliability and are made of the highest quality. The inductors are protected by polyolefin tubing making it perfect for use in various environments.
Printed circuit mounting (axial leads)
Axial type
High resistivity core offers very high parallel resistance,
resulting in maximum coil performance
Axial type
High resistivity core offers very high parallel resistance,
resulting in maximum coil performance
Vishay Leaded Inductors
Specifications
| Attribute | Value |
| Inductance | 56 μH |
| Maximum DC Current | 1.4A |
| Mounting Type | Axial |
| Maximum DC Resistance | 1.3Ω |
| Tolerance | ±15% |
| Diameter | 6.85mm |
| Height | 17.78mm |
| Dimensions | 6.85 (Dia.) x 17.78mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 1kHz |
| Series | IHD |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Axial Leaded |
| Lead Diameter | 0.81mm |
