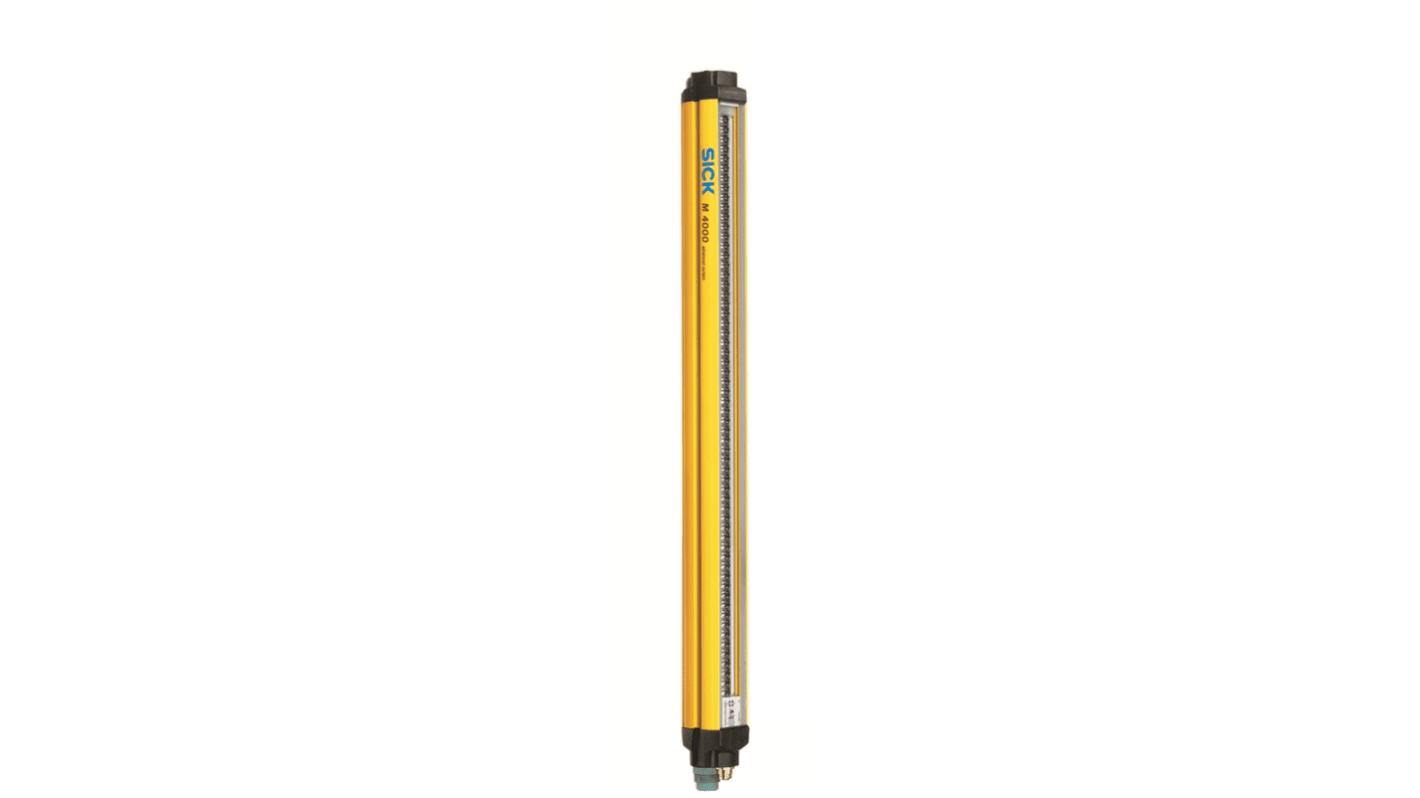

SICK M40E Series M4000 Light Curtain Receiver, 30mm Resolution

RS Stock No.:: 280-5995
Mfr. Part No.:: M40E-68A303RB0
Manufacturer:: SICK

SICK M40E Series M4000 Light Curtain Receiver, 30mm Resolution

Subtotal (1 unit)*

€3,364.90

(exc. VAT)

€4,138.83

(inc. VAT)

In Stock

9 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€3,364.90

*price indicative

RS Stock No.:: 280-5995
Mfr. Part No.:: M40E-68A303RB0
Manufacturer:: SICK

Overview

The M4000 Advanced Curtain safety light curtain together with the UE403 muting switching amplifier, forms an efficient solution for conventional muting applications with automated material transport. It is particularly well suited when high resolutions are required due to short safety distances. Simple configuration via PC and the on-site connection of the muting signals ensure maximum availability. Various mounting adapters and innovative accessories enable flexible installation of the device and muting sensors. Integrated functions as well as status and diagnostic information enable quick commissioning and minimize unnecessary machine downtime. The modular design allows the specific coordination of device features to requirements and provides an economical solution for high machine safety.

In addition, sens:Control devices, accessories, and services complete the product offering and form packaged solutions designed specifically for industrial environments.

At a glance

Type 4 (IEC 61496), SIL3 (IEC 61508), PL e (EN ISO 13849)
Rugged housing with three mounting grooves
7-segment display
Resolution 14 mm or 30 mm, scanning range up to 19 m
External device monitoring (EDM), restart interlock (RES), application diagnostic output (ADO), and SDL interface
Beam coding for correct system allocation
Muting: on-site connection and processing in combination with the UE403 muting switching amplifier
Configuration and diagnostics via PC

Your Benefit

The high resolution (14 mm / 30 mm) reduces the safety distances for access protection, with and without muting
The rugged housing and high power reserve enable reliable use, even in harsh ambient conditions
Mounting grooves on three sides ensure greater mounting flexibility and facilitate integration with the machine
Customer-friendly interfaces and status indicators facilitate commissioning and maintenance
On-site connection of the muting signals to the UE403 muting switching amplifier minimizes cabling work and simplifies commissioning and maintenance
Reduced downtime due to all-around-visible LED and diagnostics displays as well as the configuration memory in the UE403 muting switching amplifier

Applications

Use as access protection with short safety distances with and without muting
Robots and automatic machining centers
Machine tools and assembly lines
Punching machines and water jet cutting/laser cutting machines
Storage and conveyor
Packaging machinery and palletizer systems
Stone setting machines and stackers
Wood machining and large weaving machines

Note

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Range	M4000
	Series	M40E
	Beam Resolution	30mm
	Component Type	Receiver
	Safety Type	Type 4
	SIL IEC 61508	SIL 3
	PL EN ISO 13849-1	PL e
	Protective Height	1500mm
	Minimum Scanning Distance	21m
	Maximum Scanning Distance	21m
	Maximum Response Time	21 ms
	Supply Voltage	24 V dc
	Features	Optical Synchronisation
	Application	Industrial
	Terminal Type	Hirschmann Male Connector M26

	Select all
	Brand SICK
	Range M4000
	Series M40E
	Beam Resolution 30mm
	Component Type Receiver
	Safety Type Type 4
	SIL IEC 61508 SIL 3
	PL EN ISO 13849-1 PL e
	Protective Height 1500mm
	Minimum Scanning Distance 21m
	Maximum Scanning Distance 21m
	Maximum Response Time 21 ms
	Supply Voltage 24 V dc
	Features Optical Synchronisation
	Application Industrial
	Terminal Type Hirschmann Male Connector M26
