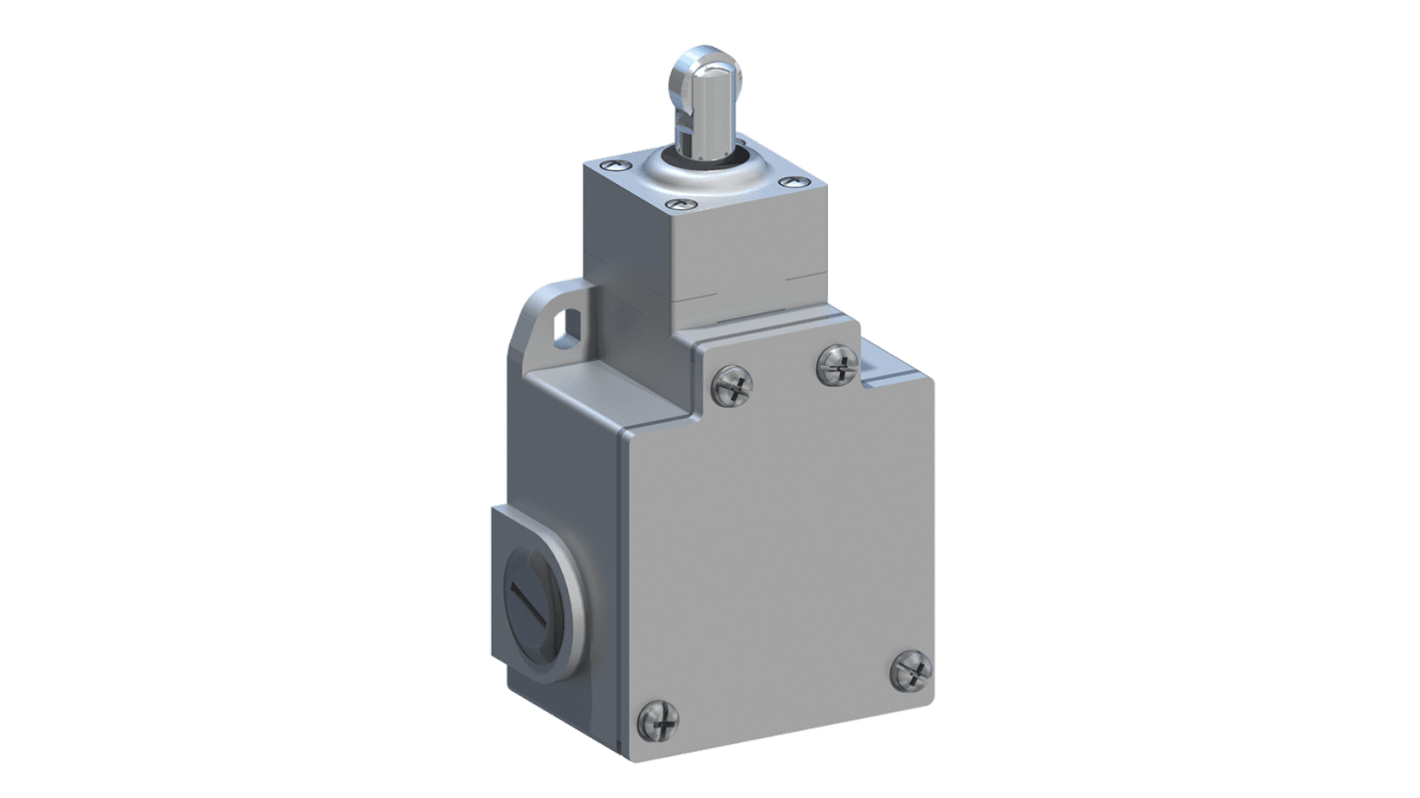

RS PRO Roller Plunger Limit Switch, 1NO/1NC, IP66, Aluminium Housing, 400V ac Max, 10A Max
- RS Stock No.:
- 136-243
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
€53.47
(exc. VAT)
€65.77
(inc. VAT)
In Stock
- 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €53.47 |
*price indicative
- RS Stock No.:
- 136-243
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Actuator Type | Roller Plunger | |
| Normal State Configuration | 1NO/1NC | |
| IP Rating | IP66 | |
| Maximum Current | 10A | |
| Housing Material | Aluminium | |
| Maximum AC Voltage | 400V | |
| Maximum DC Voltage | 250V | |
| Action Type | Snap Action | |
| Length | 120mm | |
| Minimum Operating Temperature | -25°C | |
| Standards Met | IEC/EN 60947 | |
| Width | 60mm | |
| Maximum Operating Temperature | +70°C | |
| Depth | 43mm | |
| Mounting Orientation | Side Mount | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Actuator Type Roller Plunger | ||
Normal State Configuration 1NO/1NC | ||
IP Rating IP66 | ||
Maximum Current 10A | ||
Housing Material Aluminium | ||
Maximum AC Voltage 400V | ||
Maximum DC Voltage 250V | ||
Action Type Snap Action | ||
Length 120mm | ||
Minimum Operating Temperature -25°C | ||
Standards Met IEC/EN 60947 | ||
Width 60mm | ||
Maximum Operating Temperature +70°C | ||
Depth 43mm | ||
Mounting Orientation Side Mount | ||
