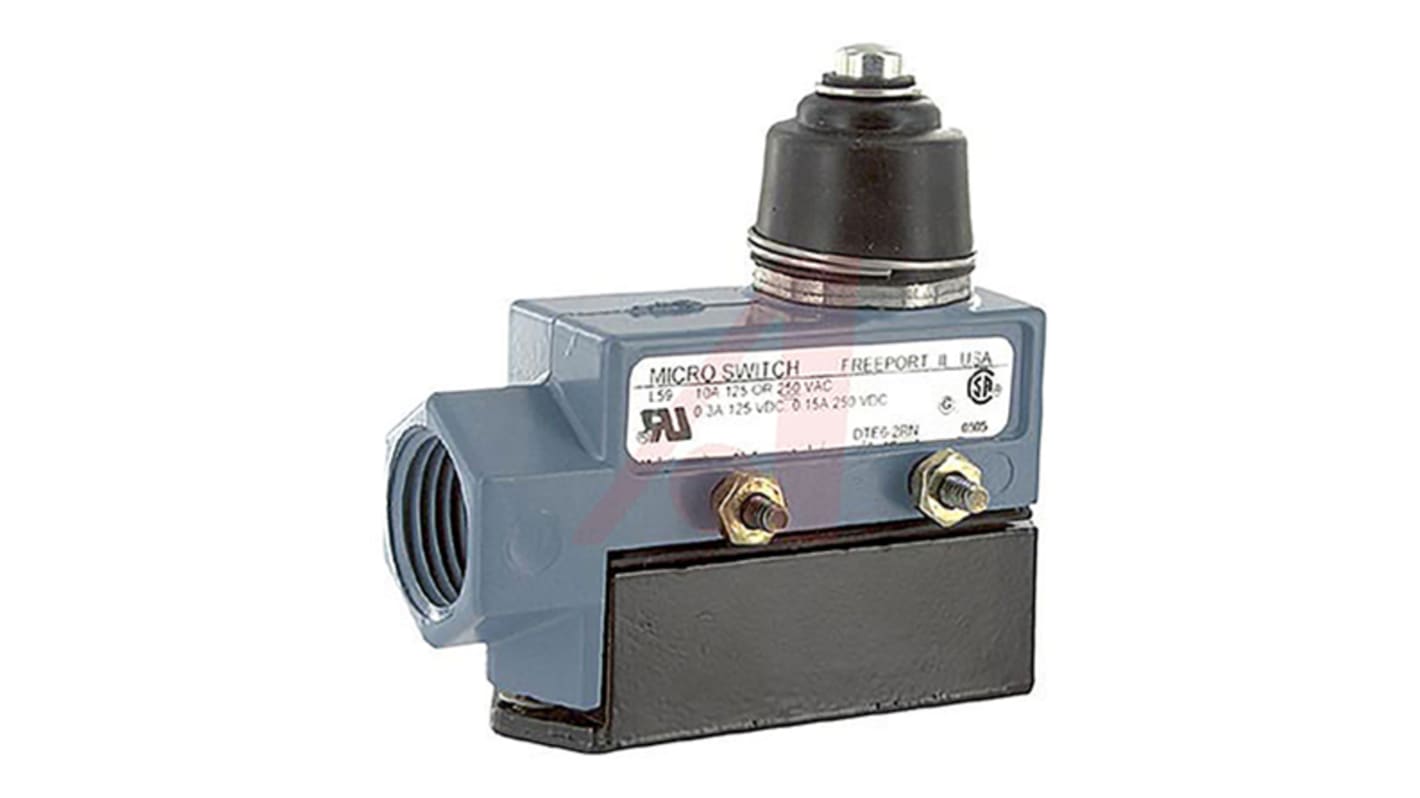

Honeywell DTE6 Series Plunger Limit Switch, 2NO/2NC, IP66, DPDT, Die Cast Zinc Housing, 250V ac Max, 10A Max
- RS Stock No.:
- 808-7572
- Distrelec Article No.:
- 301-38-706
- Mfr. Part No.:
- DTE6-2RN
- Manufacturer:
- Honeywell
Bulk discount available
Subtotal (1 unit)*
€281.35
(exc. VAT)
€346.06
(inc. VAT)
In Stock
- 46 unit(s) ready to ship from another location
- Plus 84 unit(s) shipping from 22 August 2025
- Plus 161 unit(s) shipping from 05 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | €281.35 |
5 - 9 | €270.10 |
10 + | €256.03 |
*price indicative
- RS Stock No.:
- 808-7572
- Distrelec Article No.:
- 301-38-706
- Mfr. Part No.:
- DTE6-2RN
- Manufacturer:
- Honeywell
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Honeywell | |
Actuator Type | Plunger | |
Pole and Throw Configuration | DPDT | |
Normal State Configuration | 2NO/2NC | |
IP Rating | IP66 | |
Maximum Current | 10A | |
Housing Material | Die Cast Zinc | |
Maximum AC Voltage | 250V | |
Maximum DC Voltage | 250V | |
Connection Type | 1/2 in NPT | |
Series | DTE6 | |
Action Type | Snap Action | |
Length | 77.22mm | |
Minimum Operating Temperature | -32°C | |
Maximum Operating Temperature | +71°C | |
Width | 25.4mm | |
Depth | 44.45mm | |
Mounting Orientation | Vertical | |
Select all | ||
---|---|---|
Brand Honeywell | ||
Actuator Type Plunger | ||
Pole and Throw Configuration DPDT | ||
Normal State Configuration 2NO/2NC | ||
IP Rating IP66 | ||
Maximum Current 10A | ||
Housing Material Die Cast Zinc | ||
Maximum AC Voltage 250V | ||
Maximum DC Voltage 250V | ||
Connection Type 1/2 in NPT | ||
Series DTE6 | ||
Action Type Snap Action | ||
Length 77.22mm | ||
Minimum Operating Temperature -32°C | ||
Maximum Operating Temperature +71°C | ||
Width 25.4mm | ||
Depth 44.45mm | ||
Mounting Orientation Vertical | ||
