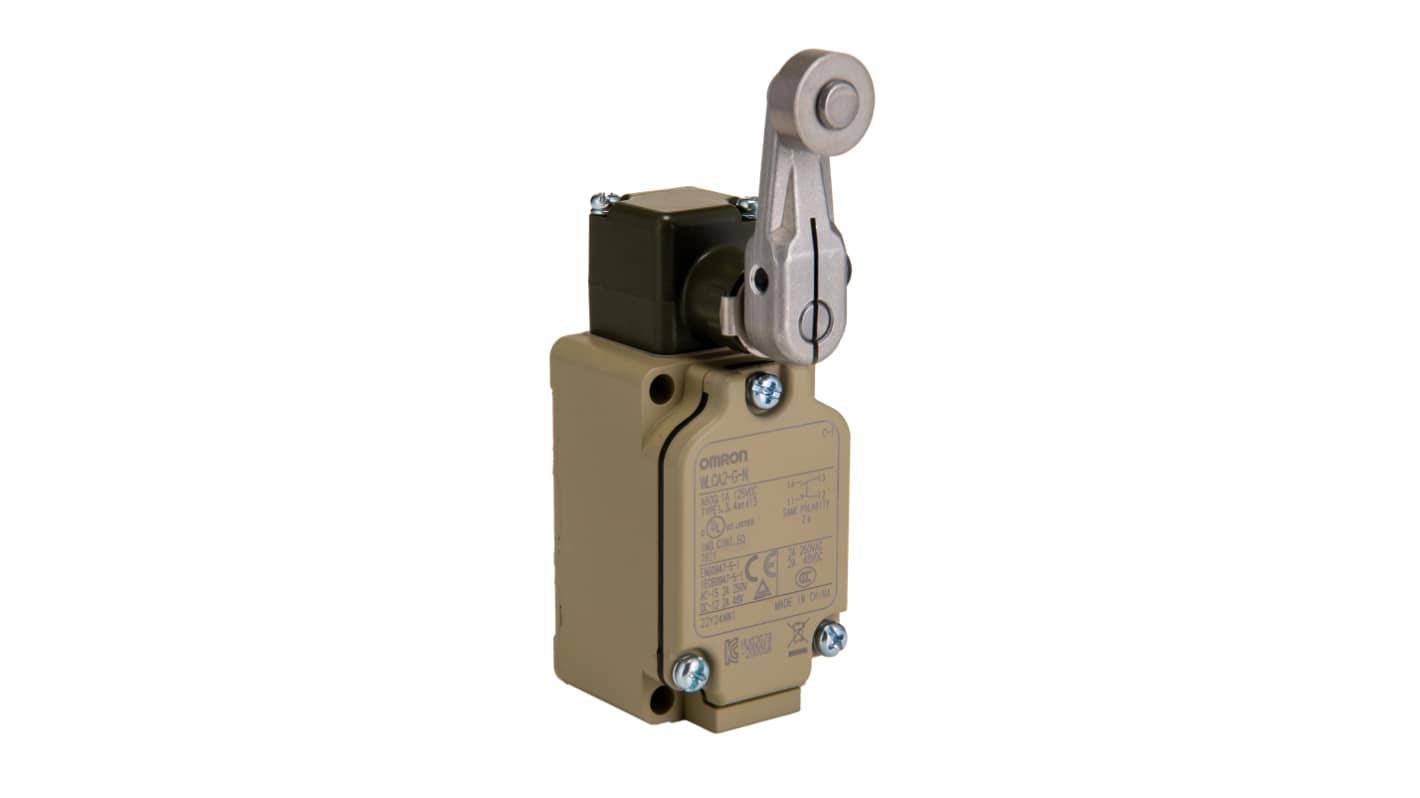

Omron WL Series Roller Lever Limit Switch, NO/NC, IP67, DPDT, Metal Housing, 250V ac Max, 2A Max

RS Stock No.:: 828-1014
Distrelec Article No.:: 301-62-930
Mfr. Part No.:: WL-CA2GN
Manufacturer:: Omron

Omron WL Series Roller Lever Limit Switch, NO/NC, IP67, DPDT, Metal Housing, 250V ac Max, 2A Max

Subtotal (1 unit)**

€68.34

(exc. VAT)

€84.06

(inc. VAT)

1 Within 1 working day(s) (IE stock)*

16 Within 2 working day(s) (EU stock)

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit
1 +	€68.34

**price indicative

RS Stock No.:: 828-1014
Distrelec Article No.:: 301-62-930
Mfr. Part No.:: WL-CA2GN
Manufacturer:: Omron

Datasheet

WL Series General Purpose Limit Switch

Oil-tight, waterproof and dustproof cast aluminium body construction to IP67
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (I_th250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5

Approvals

UL, CSA

Omron Series WL Limit Switch, DPDT Pole and Throw Configuration, 2A Maximum Current - WL-CA2GN

This limit switch is designed for precise control and reliability in various applications. With a robust metal housing, this model ensures durability and high performance. The device features a roller lever actuator and offers a dual pole, dual throw configuration, making it suitable for complex tasks in automation and mechanical systems.

Features & Benefits

• High durability rated for 15 million operations
• IP67 rating ensures protection against dust and water
• Supports maximum current of 2A for efficient performance
• Operates effectively within a temperature range of -10 °C to +80 °C
• Ideal for critical applications requiring a double break actuator

Applications

• Ideal for industrial automation systems
• Utilised in conveyor belt control
• Suitable for manufacturing and machinery protection
• Employed in robotics for precise movement detection

How does the IP67 rating benefit usage in harsh environments?

The IP67 rating offers full protection against dust ingress and water, ensuring reliable operation even in challenging conditions like moisture-laden or dirty environments.

What is the significance of a double break actuator in this switch?

The double break actuator enhances safety by ensuring the circuit is fully disconnected before maintenance, minimising the risk of accidental activation.

What maximum voltage ratings should I consider when integrating this device?

It supports a maximum AC voltage of 250V and a DC voltage of 48V, making it versatile for various electrical systems.

How long can this limit switch be expected to function effectively?

The switch boasts a mechanical life of 15 million operations, providing long-term reliability in demanding applications.

What mounting orientations are supported for this limit switch?

The device is designed for side mounting, allowing flexible installation options depending on the specific application requirements.

Attribute	Value
Actuator Type	Roller Lever
Pole and Throw Configuration	DPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	2A
Housing Material	Metal
Maximum AC Voltage	250V
Maximum DC Voltage	48V
Connection Type	G1/2
Series	WL
Action Type	Double Break
Length	125mm
Maximum Operating Temperature	+80°C
Standards Met	CSA, UL
Width	40mm
Depth	60mm
Minimum Operating Temperature	-10°C
Operating Force	13.34 N
Mounting Orientation	Side
Mechanical Life	15000000Operations
