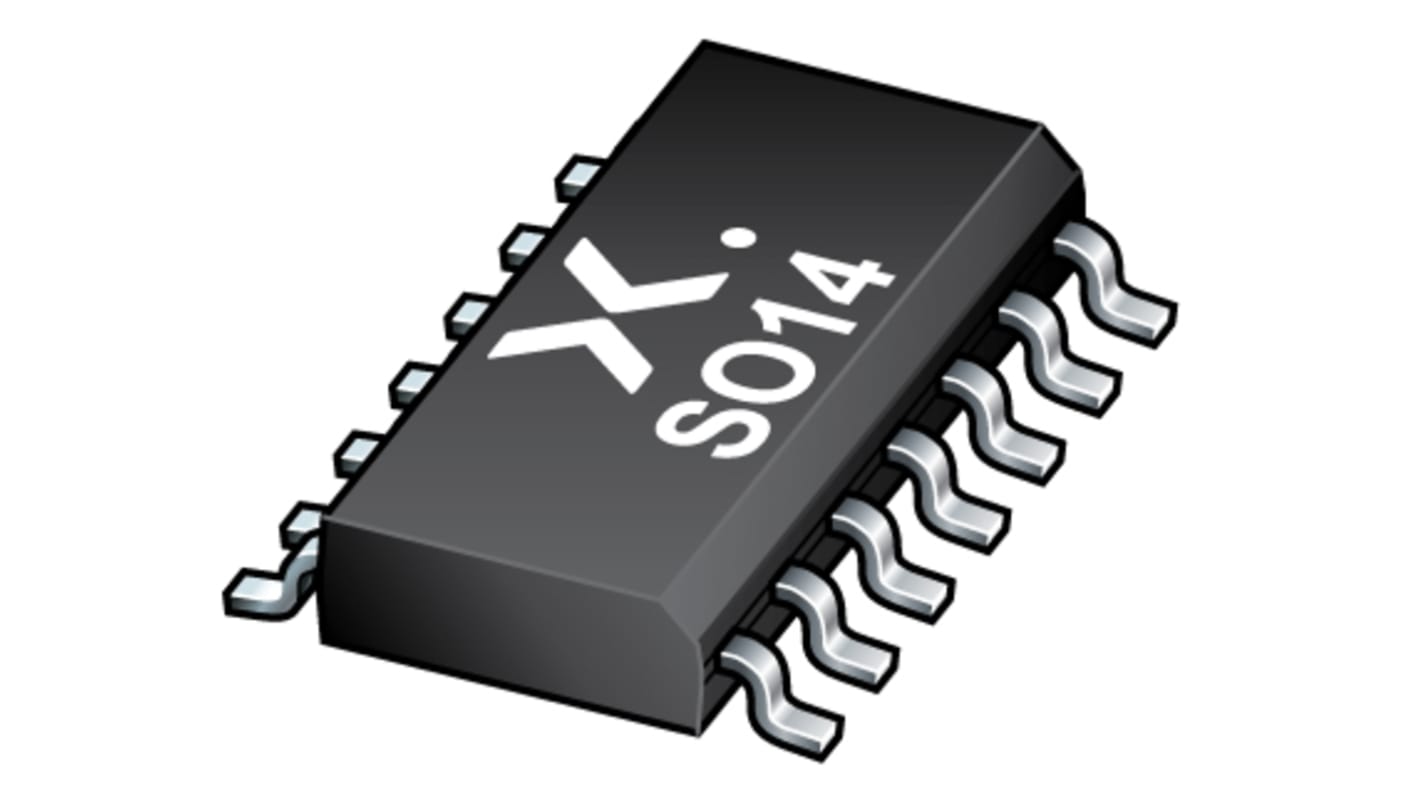

Nexperia 74HCT132D,653, 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SO

RS Stock No.:: 170-8017
Mfr. Part No.:: 74HCT132D,653
Manufacturer:: Nexperia

Nexperia 74HCT132D,653, 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SO

Subtotal (1 reel of 2500 units)*

€445.00

(exc. VAT)

€547.50

(inc. VAT)

Temporarily out of stock

Shipping from 27 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
2500 +	€0.178	€445.00

*price indicative

RS Stock No.:: 170-8017
Mfr. Part No.:: 74HCT132D,653
Manufacturer:: Nexperia

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Nexperia
	Product Type	Logic Gate
	Logic Function	NAND
	Mount Type	Surface
	Number of Elements	4
	Number of Inputs per Gate	2
	Schmitt Trigger Input	Yes
	Package Type	SO
	Pin Count	14
	Logic Family	74HCT
	Input Type	Schmitt Trigger
	Maximum High Level Output Current	-4mA
	Maximum Propagation Delay Time @ CL	32ns
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Standards/Approvals	No
	Length	8.75mm
	Series	74HCT
	Minimum Supply Voltage	4.5V
	Height	1.45mm
	Maximum Supply Voltage	5.5V
	Maximum Low Level Output Current	4mA
	Output Type	Single Ended
	Automotive Standard	No

	Select all
	Brand Nexperia
	Product Type Logic Gate
	Logic Function NAND
	Mount Type Surface
	Number of Elements 4
	Number of Inputs per Gate 2
	Schmitt Trigger Input Yes
	Package Type SO
	Pin Count 14
	Logic Family 74HCT
	Input Type Schmitt Trigger
	Maximum High Level Output Current -4mA
	Maximum Propagation Delay Time @ CL 32ns
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Standards/Approvals No
	Length 8.75mm
	Series 74HCT
	Minimum Supply Voltage 4.5V
	Height 1.45mm
	Maximum Supply Voltage 5.5V
	Maximum Low Level Output Current 4mA
	Output Type Single Ended
	Automotive Standard No

The 74HC132, 74HCT132 is a quad 2-input NAND gate with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.

Key features and benefits

Mixed 5 V and 3.3 V applications

Reduce time to market for complex designs

Save board space

Open-drain output options

Improved signal integrity for complex layouts

Wide supply voltage range

Low propagation delay

Overvoltage tolerant options

Low input threshold options

CMOS low power
