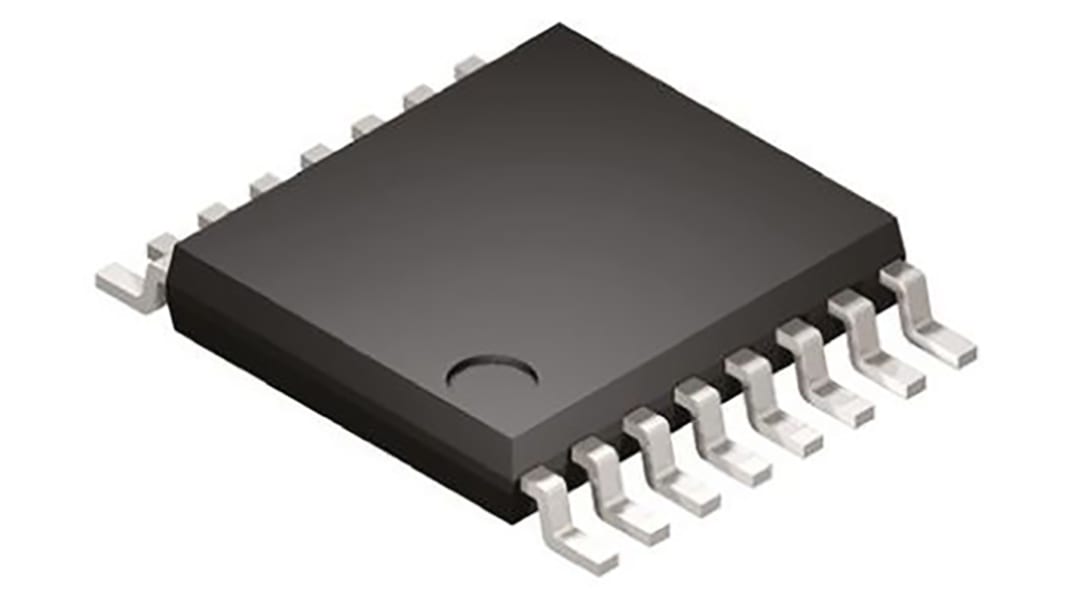

Texas Instruments SN65LVDS047PW, Transmitter IC 4 LVTTL LVDS, 16-Pin TSSOP
- RS Stock No.:
- 652-5246
- Mfr. Part No.:
- SN65LVDS047PW
- Manufacturer:
- Texas Instruments
Bulk discount available
Subtotal (1 unit)*
€4.03
(exc. VAT)
€4.96
(inc. VAT)
Temporarily out of stock
- Shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €4.03 |
| 5 - 9 | €3.83 |
| 10 - 24 | €3.62 |
| 25 - 49 | €3.43 |
| 50 + | €3.23 |
*price indicative
- RS Stock No.:
- 652-5246
- Mfr. Part No.:
- SN65LVDS047PW
- Manufacturer:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Number of Drivers | 4 | |
| Product Type | Transmitter IC | |
| Input Type | LVTTL | |
| Number of Receivers | 0 | |
| Sub Type | Transmitter | |
| Output Type | LVDS | |
| Transmission Data Rate | 400Mbps | |
| Number of Elements per Chip | 4 | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 16 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 5mm | |
| Series | SN65LVDS047 | |
| Width | 4.4 mm | |
| Height | 1.15mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Number of Drivers 4 | ||
Product Type Transmitter IC | ||
Input Type LVTTL | ||
Number of Receivers 0 | ||
Sub Type Transmitter | ||
Output Type LVDS | ||
Transmission Data Rate 400Mbps | ||
Number of Elements per Chip 4 | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 16 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
ESD Protection Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 5mm | ||
Series SN65LVDS047 | ||
Width 4.4 mm | ||
Height 1.15mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Differential Line Drivers and Receivers (LVDS PHY), Texas Instruments
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
