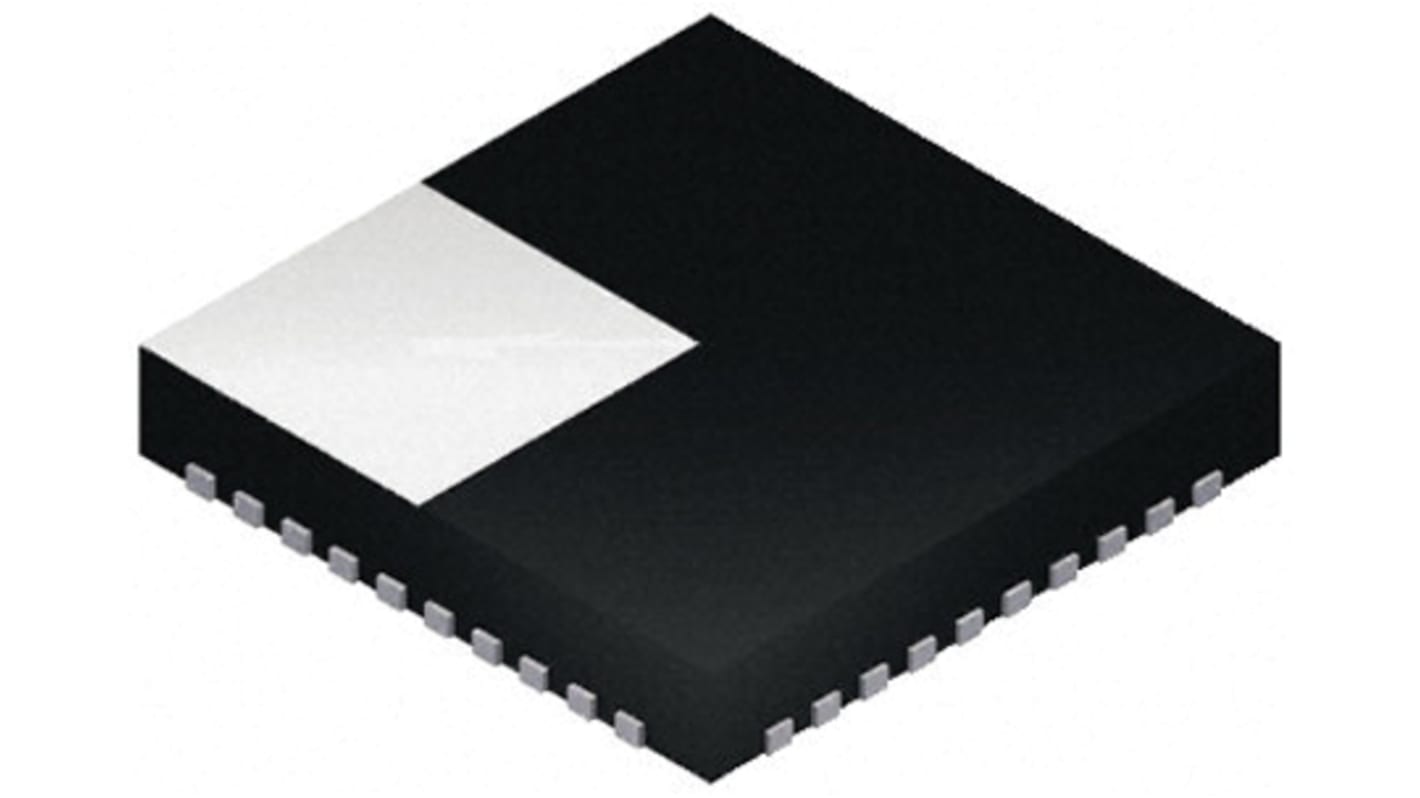

Texas Instruments DS25BR440TSQ/NOPB, LVDS Buffer Quad CML, LVDS, LVPECL LVDS, 40-Pin WQFN

RS Stock No.:: 813-6508
Mfr. Part No.:: DS25BR440TSQ/NOPB
Manufacturer:: Texas Instruments

Texas Instruments DS25BR440TSQ/NOPB, LVDS Buffer Quad CML, LVDS, LVPECL LVDS, 40-Pin WQFN

Bulk discount available

Price Each**

€6.55

(exc. VAT)

€8.06

(inc. VAT)

81 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 4	€6.55
5 - 9	€6.24
10 - 24	€5.65
25 - 49	€5.50
50 +	€5.37

**price indicative

RS Stock No.:: 813-6508
Mfr. Part No.:: DS25BR440TSQ/NOPB
Manufacturer:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Number of Drivers	4
Input Type	CML, LVDS, LVPECL
Output Type	LVDS
IC Type	Buffer IC
Transmission Data Rate	3.125Gbps
Number of Elements per Chip	4
Mounting Type	Surface Mount
Package Type	WQFN
Pin Count	40
Differential Input Low Threshold Voltage	-100mV
Dimensions	6 x 6 x 0.8mm
Height	0.8mm
Length	6mm
Maximum Operating Supply Voltage	3.6 V
Width	6mm
Maximum Operating Temperature	+85 °C
Minimum Operating Supply Voltage	3 V
Minimum Operating Temperature	-40 °C

Texas Instruments DS25BR440TSQ/NOPB, LVDS Buffer Quad CML, LVDS, LVPECL LVDS, 40-Pin WQFN

Signal Conditioners, LVDS Repeaters, Texas Instruments
