RS PRO RS 1107 Differential Manometer With 2 Pressure Port/s, Max Pressure Measurement 200mbar With UKAS Calibration
- RS Stock No.:
- 273-9927
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch when stock is available
Added
Price Each
€371.72
(exc. VAT)
€457.22
(inc. VAT)
| Units | Per unit |
| 1 + | €371.72 |
- RS Stock No.:
- 273-9927
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

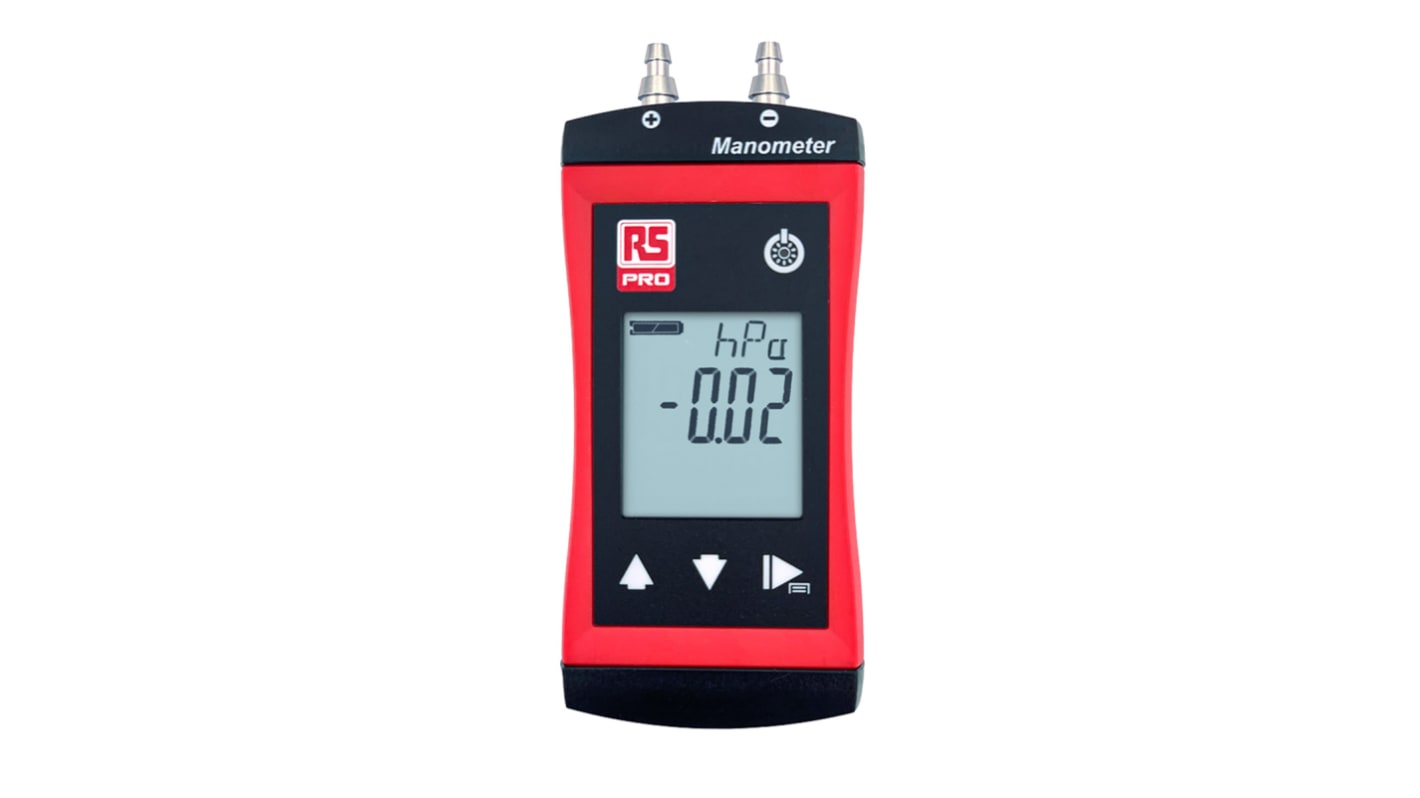

RS PRO Differential Pressure Manometer
Introducing the compact RS PRO Differential Pressure Manometer. This high-quality device from RS PRO measures airflow and pressure with high accuracy and is a compact and rugged HVAC test and measurement instrument that offers a wide variety of measurement unit options, meaning that this is a functional and versatile tool that can be used across a wide range of pressure measurement applications, whilst offering fast, reliable and accurate readings. This modern and super portable RS PRO manometer has been designed for single-handed operation and offers the most essential features that are necessary for routine maintenance and system troubleshooting applications.
Features and Benefits:
- This RS PRO compact manometer features 5 selectable units of measurement including mbar, Pa, hPa, psi and mmHg for flexibility and additional versatility across a wide range of applications
- This device offers a simultaneous display of pressure, air velocity, airflow and temperature when required, without any delay and affecting the accuracy of the results at that point in time and improving testing efficiency
- Thanks to the universal pressure connection, the unit is equipped with barbed ports for 6 mm and 8 mm hoses and can be adapted to many standard G1/8 in ports, based on the user’s needs
- The manometer offers a large, high-resolution LCD screen for easy viewing of results and data measurement and long battery life, while the backlit screen allows it to be used in low light environments and ducting
- Heavy duty and hard-wearing, this RS PRO manometer is waterproof and durable with an IP67 rating (not sensor connection)
- The device is powered by 2 x AA batteries with a low battery indicator and selectable ’auto power-off’ function to preserve battery life when not in use
- Supplied with: Batteries and Instruction Manual
Technical Features:
- NULL/Tare, Fine and AVG Functions
- ±0.2 hPa accuracy
- ±2000 mbar range
- <1 second response time
Applications:
A manometer is a device that is used to measure pressure and the flow rate in the air, in gases or in liquids, depending on the application. These devices are generally compact and portable so that they can be taken to where the readings need to be measured and recorded. Manometers are versatile instruments that can be used across a wide range of industries and applications like:
- HVAC systems maintenance
- Meteorological and weather conditions monitoring
- Gas pressure monitoring in piping systems
- Fluid flow measurements
- Physiological measurements such as blood pressure
- Monitoring compressor systems operations
What is the difference between a manometer and a barometer?
Barometers or mercury manometers are devices that measure the atmospheric pressure around you. It is a very basic device that comes in a closed-end tube with a vacuum on the other end and measures as the pressure goes up or back down to the absolute pressure point. Manometers also measure atmospheric pressure this, however, in addition to this, manometers have additional features that can measure absolute pressure, differential pressure and gauge pressure and can be used in a wide range of servicing and maintenance applications to ensure that all parts that work using pressure are maintained and fully functional to ensure that downtime is limited.
What are the measurement units that this manometer can read?
This manometer measures in 5 different units: mbar, bar, hPa, psi and mmHg
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Best Accuracy | ±0.2 % |
| Calibrated | UKAS |
| Number of Pressure Ports | 2 |
| Maximum Pressure Measurement | 200mbar |
| Minimum Pressure Measurement | -200mbar |
| Pressure Port Type | Differential |
| Leak Testing | No |
| Minimum/Maximum Recordings | Yes |
| Data Logging | No |
| Model Number p | RS 1107 |
| Intrinsically Safe | No |
| IP Rating | IP67 |
| Battery Type | AA |
| Display Type | Backlit LCD |
| Overpressure Maximum | 1700hPa |
| Weight | 140g |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| Height | 108mm |
| Length | 54mm |
| Width | 28mm |
| Dimensions | 108 x 54 x 28mm |
