Product Details

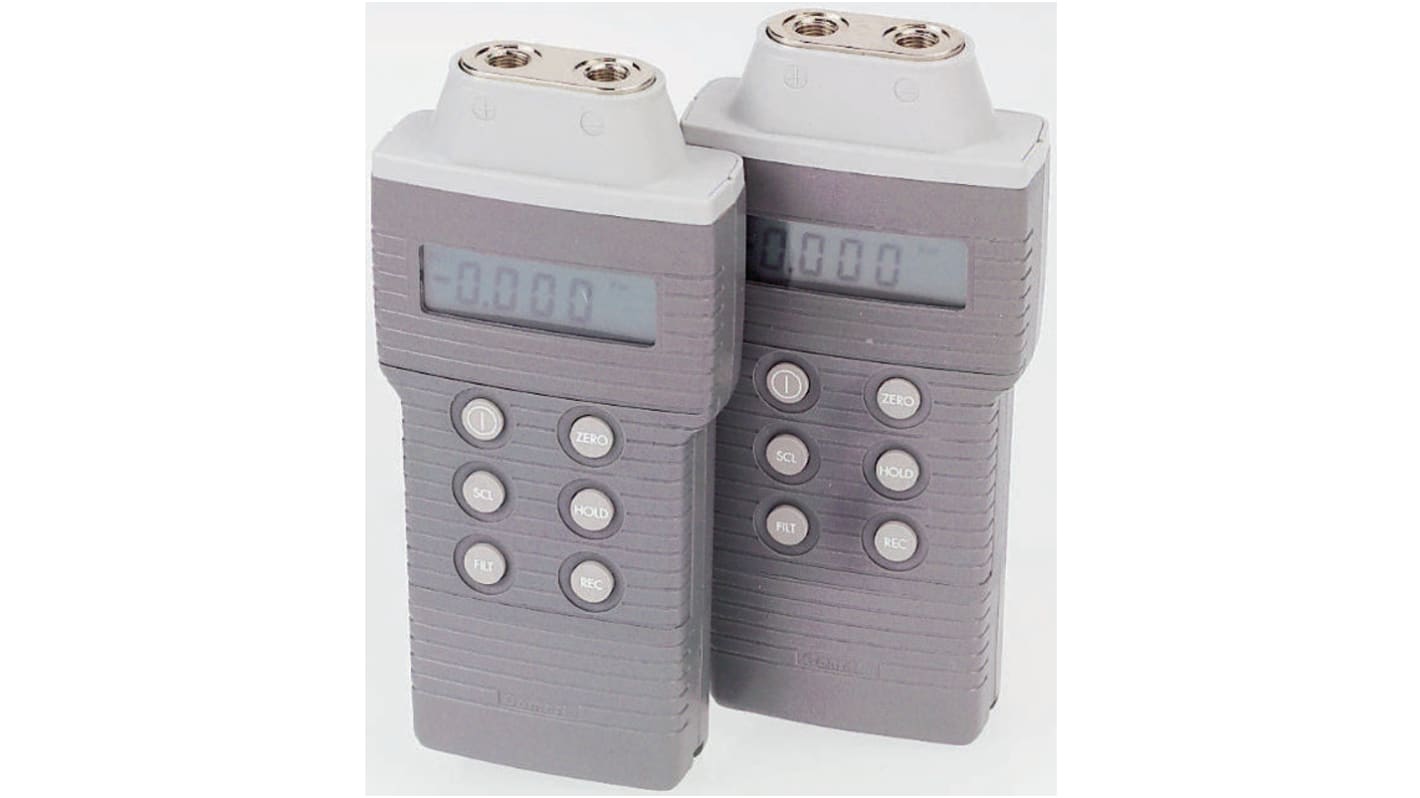

0-2 bar, 0-7 bar Air Pressure Manometer
Two versions of the C9500 series pressure meters approved for use in potentially explosive atmospheres (group IIC gas types and T4 temperature classification) in most hazardous areas including Zone 0. Both instruments features twin inputs to measure positive and negative (vacuum) gauge single inputs or differential pressures. These instruments are ideal for process control, heating, ventilation, and petrochemical industries.
IP67 rated to prevent dust and moisture ingress
Choice of 9 displayed scales
Min/Max and Hold functions
Adjustable zero
Transient reading averaging filter
Auto switch off
Accuracy: ±0.2
Operating temperature range: 0 to 50°C
Dimensions (mm): 173 x 83 x 32 x 255g incl. battery
Choice of 9 displayed scales
Min/Max and Hold functions
Adjustable zero
Transient reading averaging filter
Auto switch off
Accuracy: ±0.2
Operating temperature range: 0 to 50°C
Dimensions (mm): 173 x 83 x 32 x 255g incl. battery
Note
Approval certificate available on request.
Group and Category
II1G EEx ia IIC T4
Certificate No.
BASEEFA 03ATEX0079
Supplied with
hard carry case, battery (fitted), 1/8in. BSP connector, instruction booklet.
Specifications
| Attribute | Value |
| Best Accuracy | ±0.2 % |
| Calibrated | RSCAL |
| Number of Pressure Ports | 2 |
| Maximum Pressure Measurement | 7bar |
| Minimum Pressure Measurement | -7bar |
| Pressure Port Type | Differential |
| Minimum/Maximum Recordings | Yes |
| Model Number p | C9507/IS |
| Intrinsically Safe | Yes |
| IP Rating | IP67 |
| Battery Type | 9V |
| Display Type | LCD |
| Overpressure Maximum | 13700mbar |
| Hazardous Area Certification | ATEX |
| Length | 173mm |
| Width | 83mm |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +40°C |
| Height | 32mm |
| Dimensions | 173 x 83 x 32mm |
