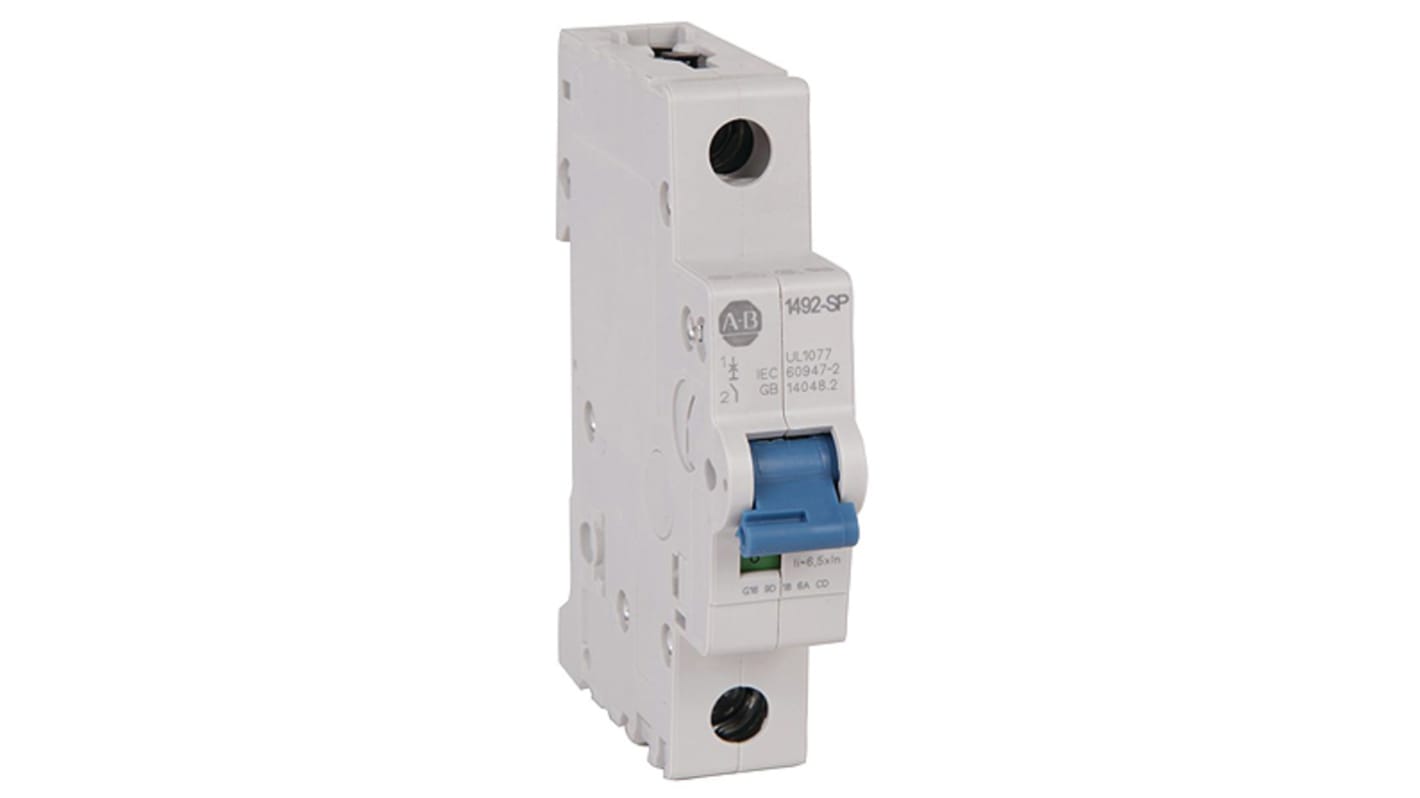

Allen Bradley 1492 1492-SPM MCB, 1P, 16A Curve D, 277V AC, 48V DC, 10 kA Breaking Capacity

Safeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.

These MCB’s have instantaneous breaking time and feature type D tripping. They are available in 1, 2 and 3 pole versions to suit your application. The 1492-SPM miniature circuit breakers are current limiting and can be easily mounted on a DIN rail. These units are also IP20 finger-safe for greater protection, and they have dual terminals for wiring and bus bar flexibility. These dependable MCB’s help to prevent downtime from nuisance tripping as they also have superior shock and vibration resistance. The 1492-SPM series allows installation of up to six accessories on the same circuit breaker so that you can optimise your safety system with ease.

Type D MCB’s are usually used for specific industrial and commercial applications with very high inductive loads and where high inrush current frequently occurs, for example with x-ray machines, large winding motors, transformers, and welding equipment. A type D MCB will trip instantly at a rate of ten to twenty-five times its rated current.

• Instantaneous break time
• Can be DIN rail mounted for fast and simple installation
• Available in 1, 2 or 3 pole versions to meet your requirements
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Thermal-magnetic tripping mechanism
• Screw Terminals
• Environmentally friendly - RohS compliant and fully recyclable
• Usable even in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

To prevent damage from current surges in your electrical equipment, choose this MCB (miniature circuit breaker) from Rockwell Automation's Allen Bradley range. It's a type D MCB so it'll cut off power to the circuit if it detects between 10 and 20 times its full load current. This makes it suitable for use in applications with high inductive loads like industrial motors. For easy monitoring, it features an indicator window with red and green contact states to let you know if it's on or off.

• Ambient operating temperature range of -25°C to +55°C for use in demanding environments
• IP20 (ingress protection) rating means it's protected against solid objects up to 12mm
• Resistant to shock and vibration to prevent nuisance tripping

• VDE (Verband Deutscher Elektrotechniker)
• RoHS (Restriction of Hazardous Substances)
• UL (Underwriters' Laboratories)
• CCC (China Compulsory Certificate)
• CSA (Canadian Standards Association)
• CE (Conformitè Europëenne)

To make resetting it simple, this device features an easy-to-use toggle switch, which you just flip back down after it's tripped.
