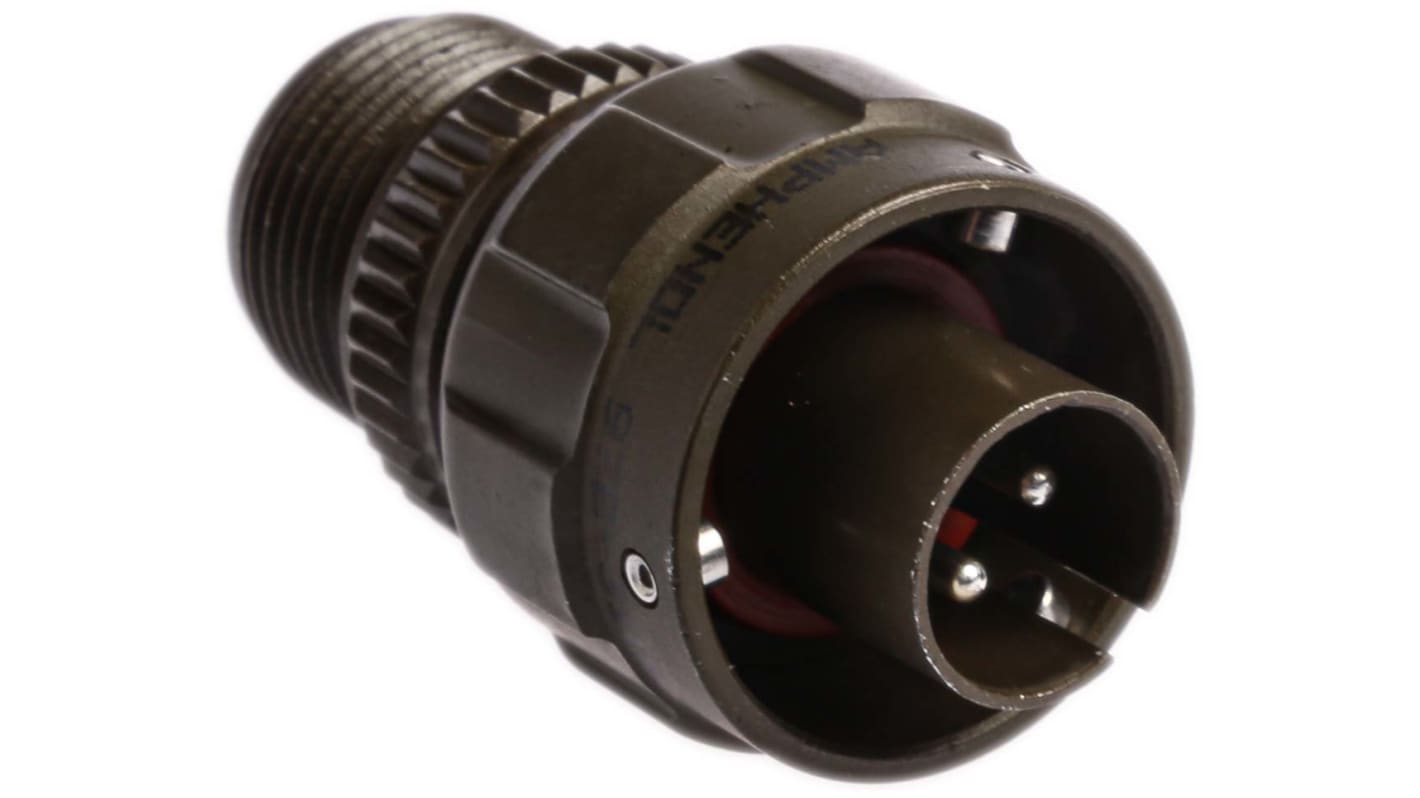

Amphenol Socapex 97B Series, 3 Way Cable Mount MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 10SL

  • RS Stock No. 442-2151
  • Mfr. Part No. 97B-3106A10SL-3P-HD
  • Manufacturer Amphenol
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): IN
Product Details

Cable Plugs and Sockets

From Amphenol, this 5015 series of military grade connectors are durable and versatile, offering a degree of environmental protection that makes them ideal for industrial purposes. Featuring bayonet coupling for an easy and reliable connection, these 5015 Series connectors are available in a variety of shell sizes and contact arrangements, in either male or female genders.

Note

Cable-mounting plugs (pin contacts) will only mate with chassis sockets. Cable-mounting sockets will only mate with chassis plugs.

//media.rs-online.com/t_line/L4422151-25.gif

Standards

BS 9522; F0032

Specifications
Attribute Value
Number of Contacts 3
Gender Male
Contact Gender Male
Current Rating 13A
Voltage Rating 500 V ac
Shell Size 10SL
Mounting Type Cable Mount
Military Standard MIL-DTL-5015
Termination Method Solder
Mating Type Bayonet Coupling
Body Orientation Straight
Series 97B
Minimum Operating Temperature -55°C
Contact Material Brass
Contact Plating Silver
Maximum Operating Temperature +125°C
Shell Plating Olive Drab Cadmium
Temporarily out of stock - back order for despatch 29-07-2020, delivery within 2 working days
Unit of sale: Each
36.99
(exc. VAT)
45.50
(inc. VAT)
units
Per unit
1 - 4
€36.99
5 - 24
€35.15
25 +
€33.37
