Select all	Attribute	Value
	Brand	onsemi
	Channel Type	N
	Maximum Continuous Drain Current	600 mA
	Maximum Drain Source Voltage	20 V
	Package Type	SOT-523 (SC-89)
	Series	PowerTrench
	Mounting Type	Surface Mount
	Pin Count	3
	Maximum Drain Source Resistance	240 mΩ
	Channel Mode	Enhancement
	Minimum Gate Threshold Voltage	0.6V
	Maximum Power Dissipation	625 mW
	Transistor Configuration	Single
	Maximum Gate Source Voltage	-12 V, +12 V
	Maximum Operating Temperature	+150 °C
	Typical Gate Charge @ Vgs	0.8 nC @ 4.5 V
	Width	0.98mm
	Length	1.7mm
	Transistor Material	Si
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Height	0.78mm

	Select all
	Brand onsemi
	Channel Type N
	Maximum Continuous Drain Current 600 mA
	Maximum Drain Source Voltage 20 V
	Package Type SOT-523 (SC-89)
	Series PowerTrench
	Mounting Type Surface Mount
	Pin Count 3
	Maximum Drain Source Resistance 240 mΩ
	Channel Mode Enhancement
	Minimum Gate Threshold Voltage 0.6V
	Maximum Power Dissipation 625 mW
	Transistor Configuration Single
	Maximum Gate Source Voltage -12 V, +12 V
	Maximum Operating Temperature +150 °C
	Typical Gate Charge @ Vgs 0.8 nC @ 4.5 V
	Width 0.98mm
	Length 1.7mm
	Transistor Material Si
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Height 0.78mm

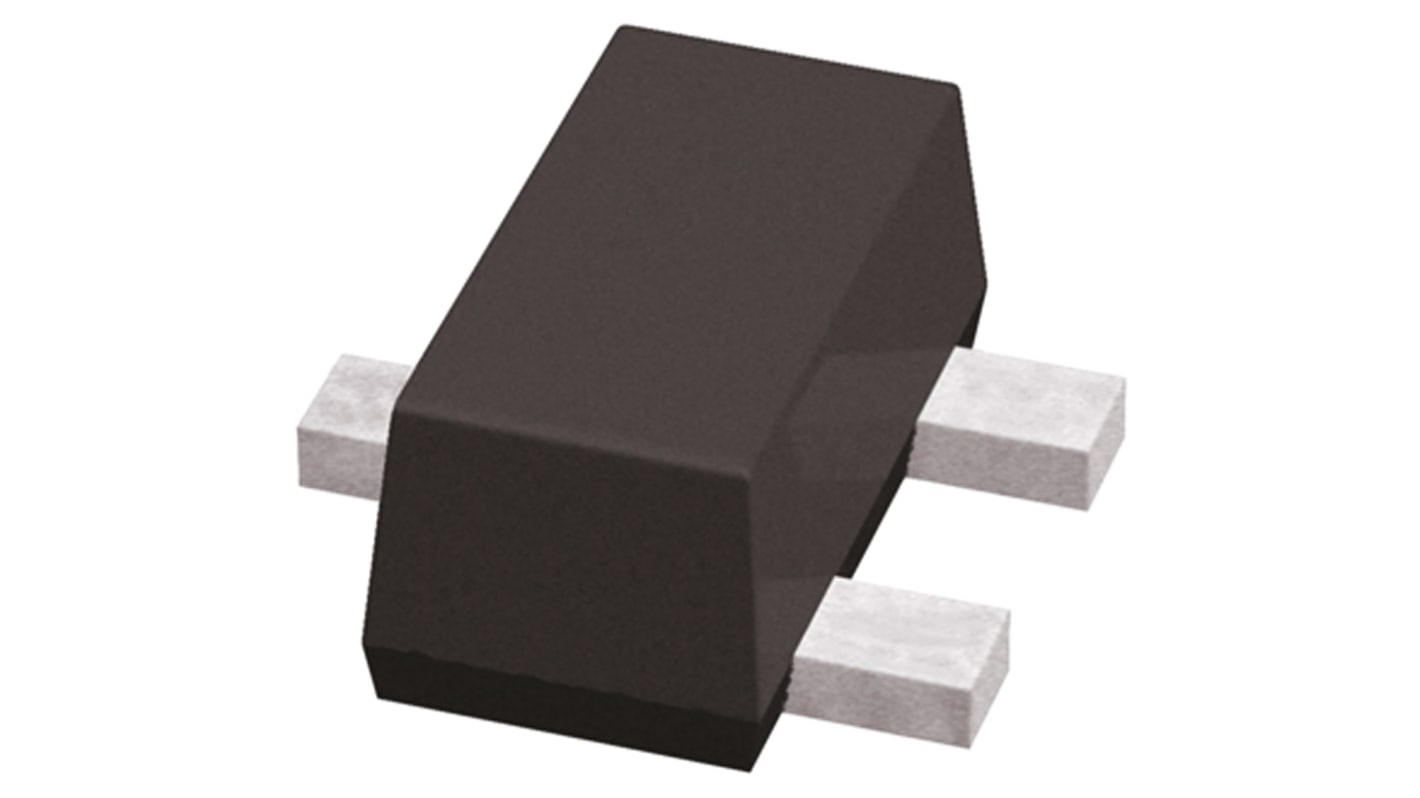

onsemi PowerTrench N-Channel MOSFET, 600 mA, 20 V, 3-Pin SOT-523 FDY300NZ

PowerTrench® N-Channel MOSFET, up to 9.9A, Fairchild Semiconductor
