Druck DPI 880 Multi-Function Calibrator, 55 mA, 30V 50 mm 180 mm 100mm, RSCAL

RS Stock No.:: 535-0934
Mfr. Part No.:: I880
Manufacturer:: Druck

Druck DPI 880 Multi-Function Calibrator, 55 mA, 30V 50 mm 180 mm 100mm, RSCAL

Subtotal (1 unit)*

€3,105.65

(exc. VAT)

€3,819.95

(inc. VAT)

In Stock

5 unit(s) ready to ship
Plus 3 unit(s) shipping from 04 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€3,105.65

*price indicative

RS Stock No.:: 535-0934
Mfr. Part No.:: I880
Manufacturer:: Druck

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Druck
	Product Type	Multi-Function Calibrator
	Maximum Voltage Measurement	30V
	Accuracy	±0.05 %
	Maximum Pressure Measurement	700bar
	Port Connections	4 mm Socket
	Battery Life	50h
	Maximum Current Measurement	55mA
	Battery Type	AA
	Power Source	Battery
	Safety Category Level	CAT III
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	IEC 584, CE, BS EN 61010:2001, BS EN 61326-1:1998 + A2:2001, DIN 43710
	Hazardous Area Certification	No
	Weight	425g
	Width	100mm
	Height	50mm
	Length	180mm
	Model Number	DPI 880
	Calibrated	RSCAL

	Select all
	Brand Druck
	Product Type Multi-Function Calibrator
	Maximum Voltage Measurement 30V
	Accuracy ±0.05 %
	Maximum Pressure Measurement 700bar
	Port Connections 4 mm Socket
	Battery Life 50h
	Maximum Current Measurement 55mA
	Battery Type AA
	Power Source Battery
	Safety Category Level CAT III
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Standards/Approvals IEC 584, CE, BS EN 61010:2001, BS EN 61326-1:1998 + A2:2001, DIN 43710
	Hazardous Area Certification No
	Weight 425g
	Width 100mm
	Height 50mm
	Length 180mm
	Model Number DPI 880
	Calibrated RSCAL

RoHS Status: Exempt

COO (Country of Origin):: GB

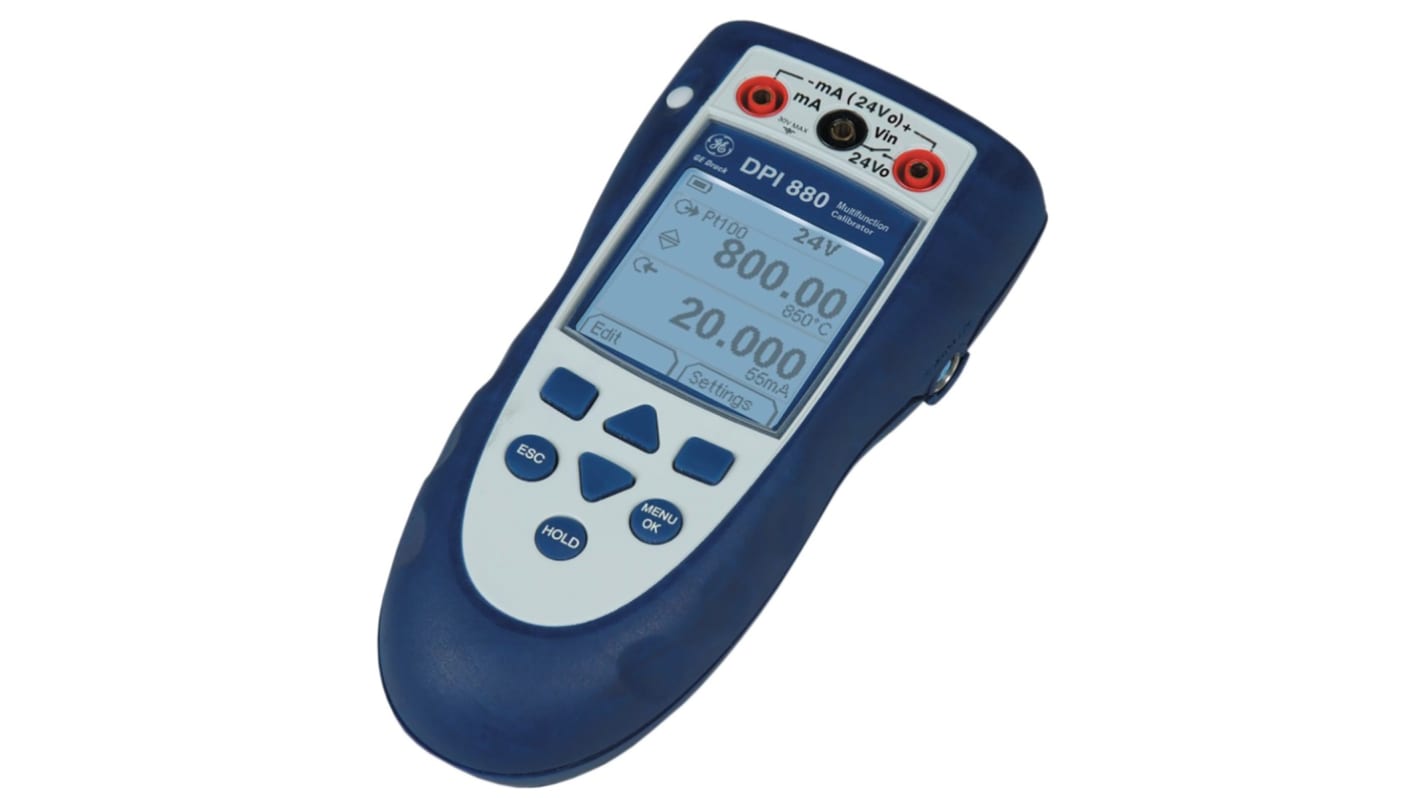

Druck Multi-Function Calibrator, 30V Maximum Voltage Measurement, 700 bar Maximum Pressure Measurement - I880

This multi-function calibrator supplies precise pressure, voltage and current reference signals for field and workshop verification of instrumentation. It is designed for portable use across a broad ambient range and operates from standard AA batteries, enabling maintenance and calibration tasks where mains supply is unavailable. The unit includes standard 4mm socket connections and meets recognised international test standards to support routine calibration procedures in industrial environments.

Features and Benefits:

• ±0.05% accuracy ensures precise measurement and generation
• 55mA maximum current measurement supports loop testing
• 700bar maximum pressure measurement handles high-pressure systems
• 30V maximum voltage measurement enables sensor and transmitter checks
• 50h battery life allows extended field use on AA cells

Applications

• Suitable for commissioning pressure transmitters and sensors
• Ideal for on-site voltage source verification of instruments
• Used for field loop calibration and maintenance tasks
• Can be used for periodic checks in industrial control systems
• Used with portable test benches for diagnostics and adjustment

What environmental range can this device operate within?

It functions reliably from -10°C to 50°C.

How is the unit powered and how long will it run between replacements?

It runs on AA batteries and offers approximately 50 h of operation per set.

What safety category does it meet for electrical measurements?

The instrument is rated to CAT III for electrical measurement safety.

What are the physical connection options for attaching test leads?

Connections are provided via standard 4mm sockets for common test leads.
