RS PRO RS-9519BT Digital Digital Multimeter True RMS

RS Stock No.:: 204-8327
Manufacturer:: RS PRO

RS PRO RS-9519BT Digital Digital Multimeter True RMS

Subtotal (1 unit)*

€313.40

(exc. VAT)

€385.48

(inc. VAT)

In Stock

Plus 55 unit(s) shipping from 09 February 2026
Plus 100 unit(s) shipping from 16 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€313.40

*price indicative

RS Stock No.:: 204-8327
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Multimeter
	Multimeter Type	Digital
	Model Number	RS-9519BT
	Display Type	Digital
	Functions Measured	Resistance, Temperature, Frequency, AC Voltage, Diode, DC Current, DC Voltage, Duty Cycle, Capacitance, Continuity, AC Current
	Maximum DC Voltage Measurement	1000V
	True RMS	Yes
	Maximum Frequency	10MHz
	Power Source	Battery
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	40°C
	Standards/Approvals	No
	Weight	350g
	Height	183mm
	Width	90 mm
	Length	45mm
	Safety Category Level	CAT III, CAT IV
	Calibrated	RSCAL
	Safety Category Voltage	1000V
	Battery Type	1.5 V AAA

	Select all
	Brand RS PRO
	Product Type Multimeter
	Multimeter Type Digital
	Model Number RS-9519BT
	Display Type Digital
	Functions Measured Resistance, Temperature, Frequency, AC Voltage, Diode, DC Current, DC Voltage, Duty Cycle, Capacitance, Continuity, AC Current
	Maximum DC Voltage Measurement 1000V
	True RMS Yes
	Maximum Frequency 10MHz
	Power Source Battery
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 40°C
	Standards/Approvals No
	Weight 350g
	Height 183mm
	Width 90 mm
	Length 45mm
	Safety Category Level CAT III, CAT IV
	Calibrated RSCAL
	Safety Category Voltage 1000V
	Battery Type 1.5 V AAA

Manufacturer Information

COO (Country of Origin):: CN

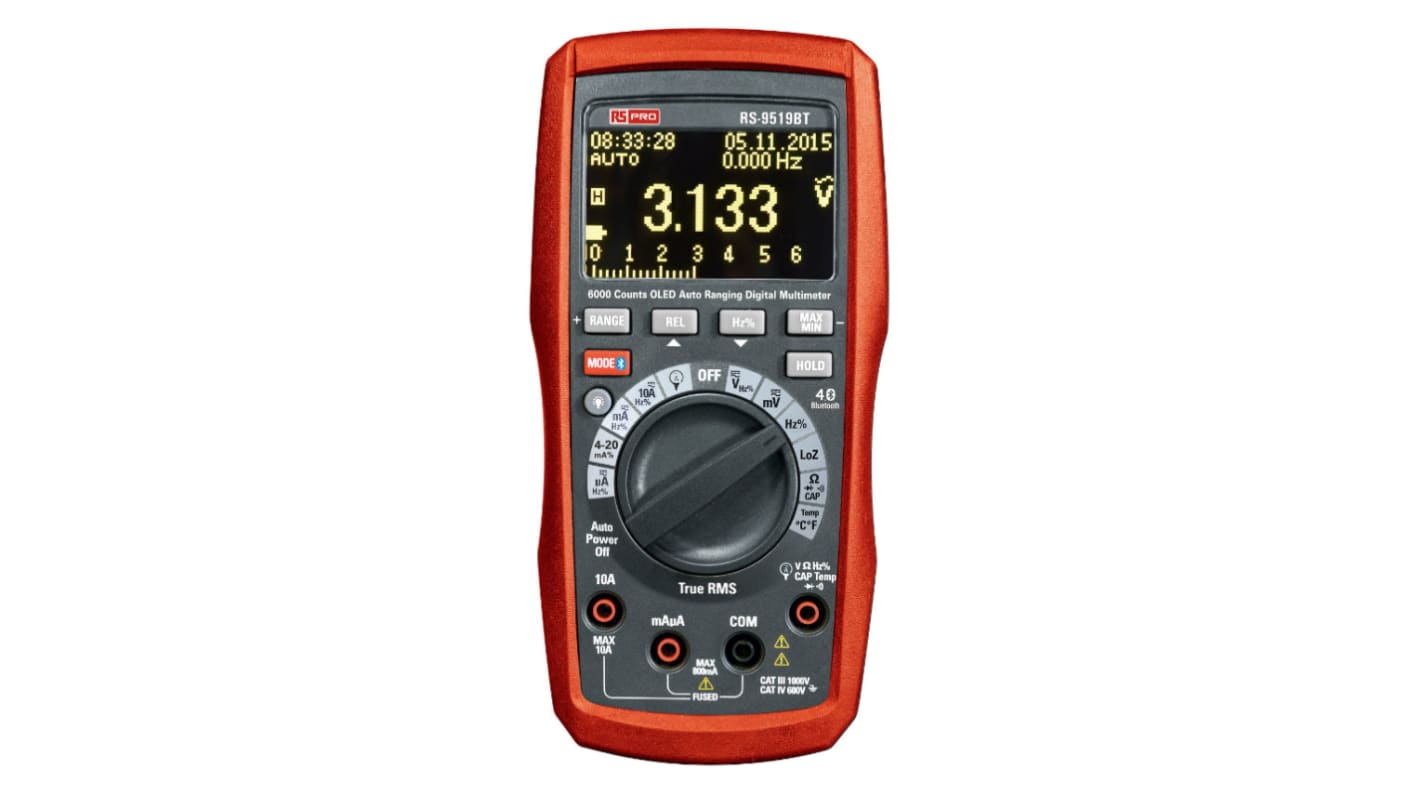

RS PRO RS-9519BT Handheld True RMS Digital Multimeter

Introducing the RS PRO RS-9519BT Handheld TRMS Digital Multimeter, designed with a Bluetooth function for easy and wireless data transmission. This is an ideal multimeter that has the ability to measure capacitance, voltage, and continuity, with the added benefit of being able to take precision low-value resistance measurements. It offers a robust and compact design, allowing for portability and protection from harsh working environments with readings clearly displayed on the high-quality OLED screen. A premium RS PRO digital multimeter like this is an essential addition to any engineer’s or technician’s test and measurement kit for accurate and reliable results.

Features and Benefits:

This RS PRO Digital Multimeter is compact and handheld tester with a rugged design, ideal for when working in harsh environments

It measures capacitance, voltage, resistance, frequency/duty cycle, continuity, electrical current, temperature and diode with accurate and reliable readings for the best performance thanks to the external flex clamp

In addition to this, the meter features built-in Bluetooth technology for easy and wireless transmission of data

The large digital backlit OLED screen clearly displays results for easy recording of the measurement outcomes, even in low-light conditions

The digital multimeter offers an auto-power off function, as well as a low battery indicator for easier battery life management

This multimeter has a low resistance range of 0 – 60 Ω and has a maximum output current of 10 A

Supplied with test leads, 3 x 1.5 V AAA batteries, Type K temperature probe, software and a carry case for easy storage and protection of the instrument

Applications:

A digital multimeter or DMM is an essential test tool that measures electrical values such as voltage, current, and resistance. A DMM is used as a standard diagnostics tool or device by technicians and electrical engineers in the following areas:

Electrical and electronics industries

Cable installation

Construction

Industrial manufacturing

What is the difference between an analogue and a digital multimeter?

The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually an LED or LCD screen) whereas the analogue version has a needle to show the value.

Standards and Certifications:

EN61010-1 CAT IV 600V, CAT III 1000V

1000V input protection on all ranges

10A/1000V & 0.8A/1000V fuses protection on current range

Low pass filter for accurate measurement of variable frequency drive (VFD) signals
