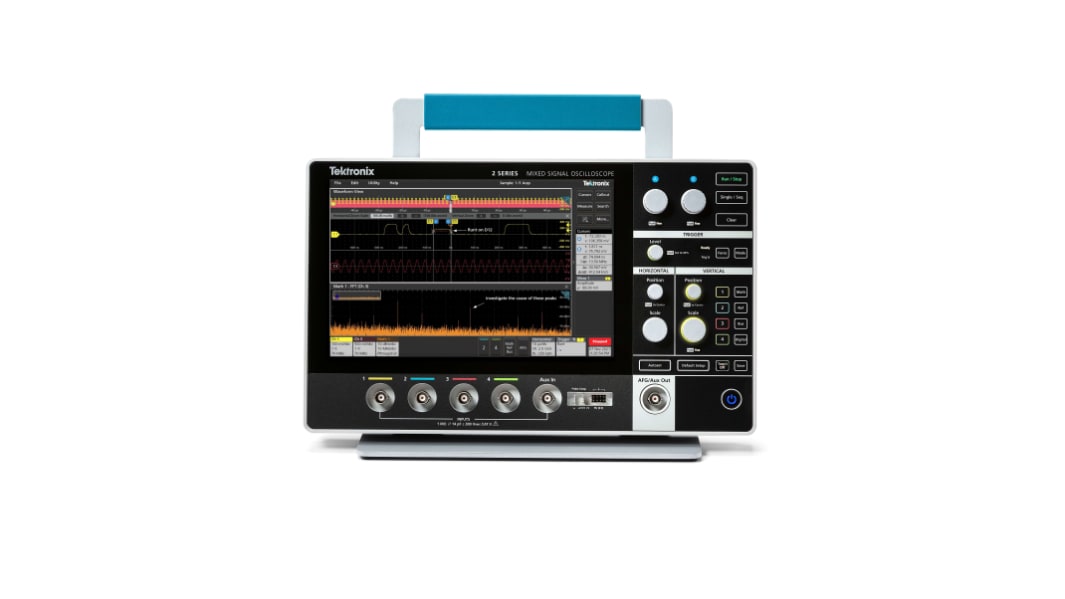

Tektronix MSO24 MSO2 Series, 100MHz Bench, Portable, Ultra Compact Oscilloscope, 4 Analogue Channels, 16 Digital

RS Stock No.:: 240-8194
Distrelec Article No.:: 302-64-527
Mfr. Part No.:: MSO24 2-BW-100
Manufacturer:: Tektronix

Tektronix MSO24 MSO2 Series, 100MHz Bench, Portable, Ultra Compact Oscilloscope, 4 Analogue Channels, 16 Digital

1 / 7

Subtotal (1 unit)**

€3,372.00

(exc. VAT)

€4,147.56

(inc. VAT)

5 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit
1 +	€3,372.00

**price indicative

Calibration Options:

Tektronix MSO24 2 Series MSO Series, 100MHz Bench, Portable Oscilloscope, 4 Analogue Channels, 16 Digital Channels -

Calibration Type:: UKAS

RS Stock No.: 240-8235

Each

€3,552.00

(exc. VAT)

€4,368.96

(inc. VAT)

Tektronix MSO24 2 Series MSO Series, 100MHz Bench, Portable Oscilloscope, 4 Analogue Channels, 16 Digital Channels - RS

Calibration Type:: RSCAL

RS Stock No.: 240-8234

Each

€3,504.50

(exc. VAT)

€4,310.54

(inc. VAT)

RS Stock No.:: 240-8194
Distrelec Article No.:: 302-64-527
Mfr. Part No.:: MSO24 2-BW-100
Manufacturer:: Tektronix

Tektronix MSO24 2-BW-100, 2 Series MSO Mixed Signal Oscilloscope, 4 Channel, 100Mhz

The 2 Series MSO features up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate and is packed with features, all in a compact form factor about 1.5” thick making it the go-to oscilloscope for electronic debug and test, no matter where you work. Tektronix 2 Series MSO unlocks more space on your bench without compromising performance with a VESA mount. The thin, portable, and lightweight, 2 Series MSO with either two or four channels. Optional extras include 16 digital channel MSO, 50 MHz AFG, 4-bit digital pattern generator, advanced triggers, protocol decode, DVM and frequency counter.

The 2 Series MSO comes with a capacitive touchscreen and a highly intuitive user interface truly designed for touch, joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope. A large catalogue of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications. An optional battery pack lets you take it easily from your bench to the field or wherever your measurements take you.

Ships with: TPP0200 200 MHz, 10x probe (one per channel), Instrument stand, External power supply, Embedded help, Installation and safety manual (translated in English, Japanese, and Simplified Chinese), Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration and one-year warranty covering all parts and labour cost on the instrument and the included probes.

Features and Benefits

Compact: Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm
Lightweight and Portable: Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs)
Battery Powered: Optional battery pack supports two hot-swappable batteries for hours of unplugged testing
Award Winning Touchscreen UI: Intuitive colour 10.1-inch touchscreen with simplified user interface giving you easy access to any function
Bench Space Saver: VESA mount compatible with many off-the shelf VESA accessories
Built-in VNC Server: View and control your oscilloscope from PC, Tablet or Phone
Share and Collaborate: TekScope and TekDrive free for six months. Register with Tektronix when you receive your oscilloscope
Optional Extras Includes: Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below).

Accessories

2 Series Accessories
RS Stock No. 2434169 2-RK - Rackmount Kit
RS Stock No. 2434167 2-PC - Carrying Bag with Kickstand and Protective Case
RS Stock No. 2434166 2-HC - Hard Carrying Case
RS Stock No. 2539686 2-BP - Battery Pack with 1 Battery Included
RS Stock No. 2539687TEKBAT-01 - Extra Battery
RS Stock No. 2539688TEKCHG-01 - Battery Charger

Probes Options
RS Stock No. 7256604 P6139B
RS Stock No. 7810801 TCP312A
RS Stock No. 7644391 TCPA300
RS Stock No. 7345029 P5200A
RS Stock No. 7260038 TPP0200

For full list of accessories, please see datasheet

Software & Updates

Software Options
SUP2-MSO (16 Digital Channels and P6136) www.tek.com/en/products/oscilloscopes/2-series-mso
2-SERIAL www.tek.com/en/products/oscilloscopes/2-series-mso
2-SOURCE www.tek.com/en/products/oscilloscopes/2-series-mso
2-ULTIMATE www.tek.com/en/products/oscilloscopes/2-series-mso
TekScope™ www.tek.com/en/products/oscilloscopes/2-series-mso
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart
Keep your instrument up to date and to enhance the functionality of your instruments, please visit Tektronix website for the latest software updates at www.tek.com/en/products/software

Applications

Embedded Designs
Education / Research Labs
Automotive
Industrial
Manufacturing Test & Production
Automated Test Equipment
Military / Government

Note

Oscilloscope is sold without battery pack. The battery pack must be ordered separately.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Tektronix
	Bandwidth	100MHz
	Number of Analogue Channels	4
	Number of Digital Channels	16
	Oscilloscope Type	Bench, Portable, Ultra Compact
	Oscilloscope Form	Mixed Signal
	Sample Rate Random	2.5 Gsps
	Screen Size	10.1in
	Series	MSO2
	Record Length	10M points/ch
	Digital/Analogue	Analogue, Digital
	Display Type	Capacitive Touch Display
	Vertical Resolution	8 bit

	Select all
	Brand Tektronix
	Bandwidth 100MHz
	Number of Analogue Channels 4
	Number of Digital Channels 16
	Oscilloscope Type Bench, Portable, Ultra Compact
	Oscilloscope Form Mixed Signal
	Sample Rate Random 2.5 Gsps
	Screen Size 10.1in
	Series MSO2
	Record Length 10M points/ch
	Digital/Analogue Analogue, Digital
	Display Type Capacitive Touch Display
	Vertical Resolution 8 bit
