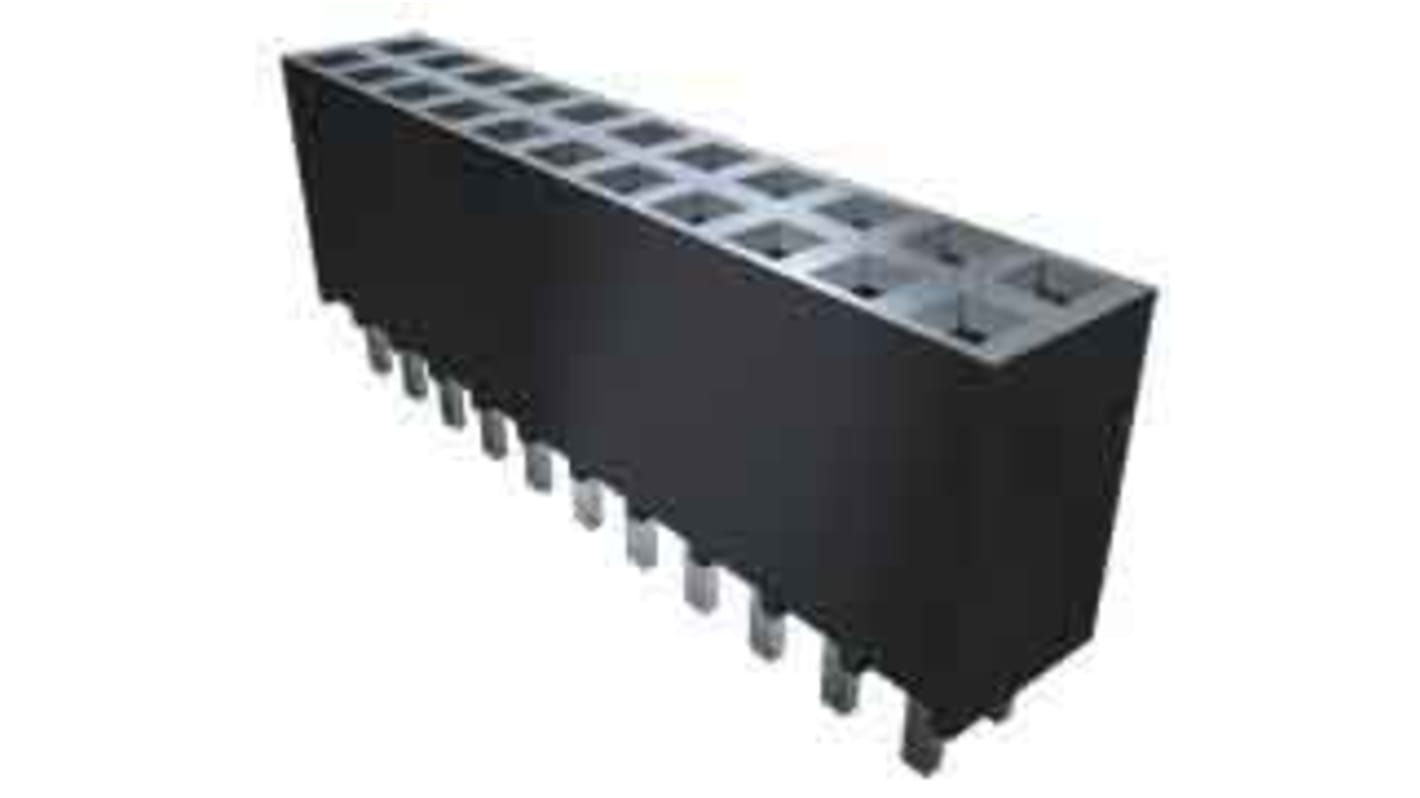

Samtec SSW Series Straight Through Hole PCB Socket, 22-Contact, 2 Row, 2.54 mm Pitch Solder

RS Stock No.:: 180-1009
Mfr. Part No.:: SSW-111-01-G-D
Manufacturer:: Samtec

Samtec SSW Series Straight Through Hole PCB Socket, 22-Contact, 2 Row, 2.54 mm Pitch Solder

Bulk discount available

Subtotal (1 pack of 5 units)*

€17.52

(exc. VAT)

€21.55

(inc. VAT)

Temporarily out of stock

Shipping from 18 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 20	€3.504	€17.52
25 - 45	€3.13	€15.65
50 - 95	€2.828	€14.14
100 - 245	€2.58	€12.90
250 +	€2.368	€11.84

*price indicative

RS Stock No.:: 180-1009
Mfr. Part No.:: SSW-111-01-G-D
Manufacturer:: Samtec

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Product Type	PCB Socket
	Number of Contacts	22
	Number of Rows	2
	Sub Type	Socket Strip
	Current	4.7A
	Pitch	2.54mm
	Housing Material	Liquid Crystal Polymer
	Termination Type	Solder
	Mount Type	Through Hole
	Orientation	Straight
	Connector System	Board-to-Board
	Voltage	655 V
	Series	SSW
	Minimum Operating Temperature	-55°C
	Row Pitch	2.5mm
	Contact Plating	Gold
	Maximum Operating Temperature	125°C
	Contact Material	Bronze
	Contact Gender	Female
	Standards/Approvals	No

	Select all
	Brand Samtec
	Product Type PCB Socket
	Number of Contacts 22
	Number of Rows 2
	Sub Type Socket Strip
	Current 4.7A
	Pitch 2.54mm
	Housing Material Liquid Crystal Polymer
	Termination Type Solder
	Mount Type Through Hole
	Orientation Straight
	Connector System Board-to-Board
	Voltage 655 V
	Series SSW
	Minimum Operating Temperature -55°C
	Row Pitch 2.5mm
	Contact Plating Gold
	Maximum Operating Temperature 125°C
	Contact Material Bronze
	Contact Gender Female
	Standards/Approvals No

Datasheet

This solder tail socket strip features high retention, cost-effective Tiger Buy™ contacts with surface mount or through-hole tails in single, double and triple row options. Straight or right-angle pins are available for standard insertion force or low insertion force to mate with .025” square post terminals.

Application: Single, double and triple row up to 150 pins

Contact System: Tiger Buy™

Orientation: Vertical, right-angle

Pitch: .100" (2.54 mm)

Special Features: Standard and low insertion force contacts with standard solder tails

Termination: Through-hole, surface mount

Samtec SSW Series Straight Through Hole PCB Socket, 22-Contact, 2 Row, 2.54 mm Pitch Solder
