- RS Stock No.:
- 897-1339
- Manufacturer:
- RS PRO
View all PCB Terminal Blocks
950 In stock for delivery within 2 working days
Price Each (In a Pack of 10)
€0.901
(exc. VAT)
€1.108
(inc. VAT)
units | Per unit | Per Pack* |
10 - 40 | €0.901 | €9.01 |
50 - 90 | €0.856 | €8.56 |
100 - 490 | €0.811 | €8.11 |
500 - 990 | €0.767 | €7.67 |
1000 + | €0.72 | €7.20 |
*price indicative |
- RS Stock No.:
- 897-1339
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

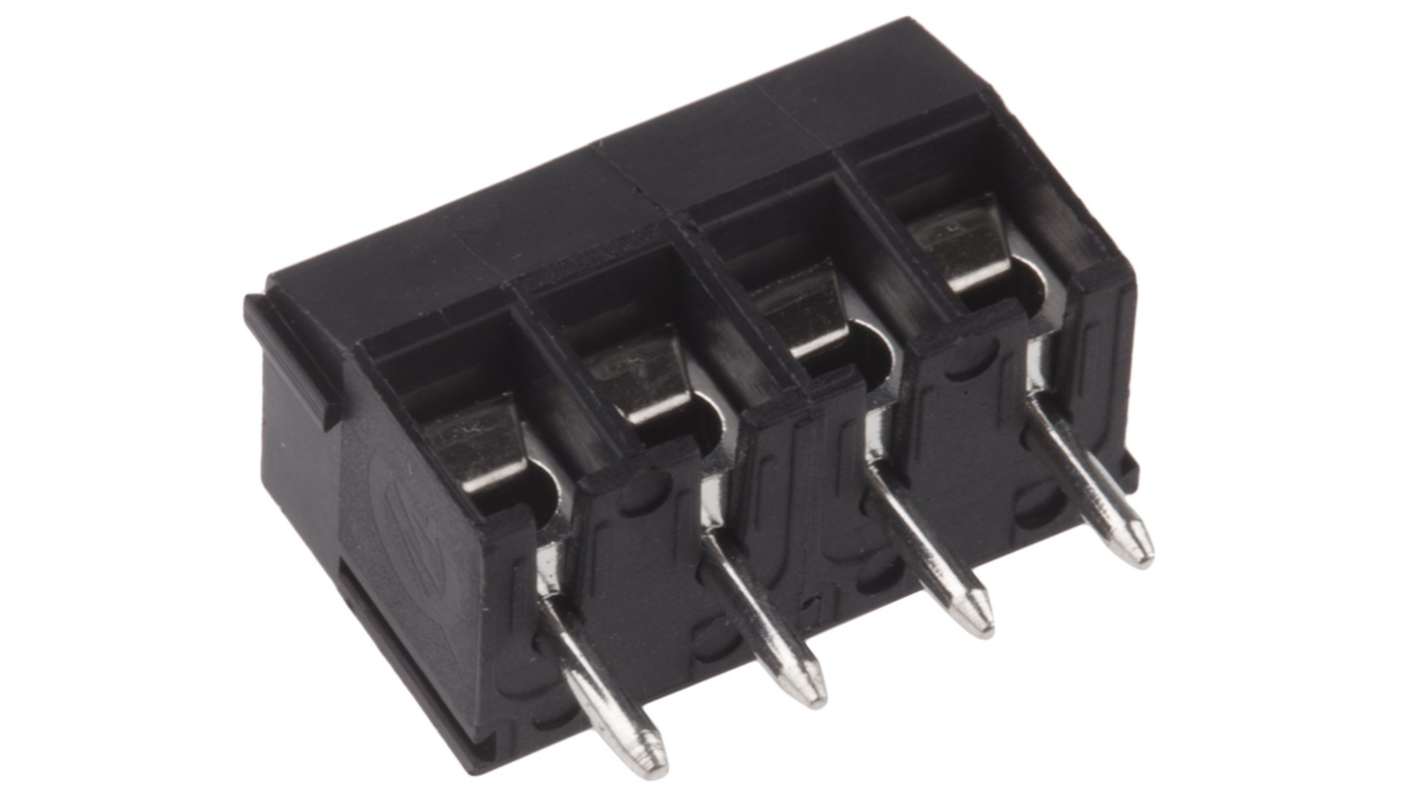

RS PRO 4-pin PCB Terminal Block, 3.5 mm Pitch
Looking for a PCB (printed circuit board) terminal block for compact applications? This 4-pin unit from RS PRO features an ultra-low profile design with a pitch of 3.5 mm and a height of just 8 mm, making it an ideal choice for use in small electronic devices.
This PCB block features screw terminals with double interlocking that create a secure connection. It also has stainless steel wire guards that protect the connections in permanent applications. While mounting the unit to your PCB, the terminal's anti-solder wicking property ensures the solder does not flow away from the pad. This prevents dirt from accumulating in the holes of the board.
The unit features tinned, nickel-plated brass contacts that ensure reliable data transmission while offering superior corrosion resistance. It's RoHS (Restriction of Hazardous Substances) compliant, so it uses only trace amounts of any contaminants.
This PCB block features screw terminals with double interlocking that create a secure connection. It also has stainless steel wire guards that protect the connections in permanent applications. While mounting the unit to your PCB, the terminal's anti-solder wicking property ensures the solder does not flow away from the pad. This prevents dirt from accumulating in the holes of the board.
The unit features tinned, nickel-plated brass contacts that ensure reliable data transmission while offering superior corrosion resistance. It's RoHS (Restriction of Hazardous Substances) compliant, so it uses only trace amounts of any contaminants.
Features and Benefits
Straight body orientation
Black colour
Current rating of 6 A
Dimensions of 8.5 (depth) x 10.5 (length) x 7 (width) mm
Male gender
Polyamide material
Through-hole mounting type
Four contacts
One row
Pitch of 3.5 mm
Screw termination method
PCB terminal block type
Voltage rating of 300 V
Black colour
Current rating of 6 A
Dimensions of 8.5 (depth) x 10.5 (length) x 7 (width) mm
Male gender
Polyamide material
Through-hole mounting type
Four contacts
One row
Pitch of 3.5 mm
Screw termination method
PCB terminal block type
Voltage rating of 300 V
Specifications
Attribute | Value |
Number of Contacts | 4 |
Pitch | 3.5mm |
Number of Rows | 1 |
Mounting Type | Through Hole |
Gender | Male |
Termination Method | Screw |
Type | PCB Terminal Block |
Current Rating | 6A |
Body Orientation | Straight |
Colour | Black |
Voltage Rating | 300 V |
Width | 7mm |
Material | Polyamide |
Length | 10.5mm |
Depth | 8.5mm |
