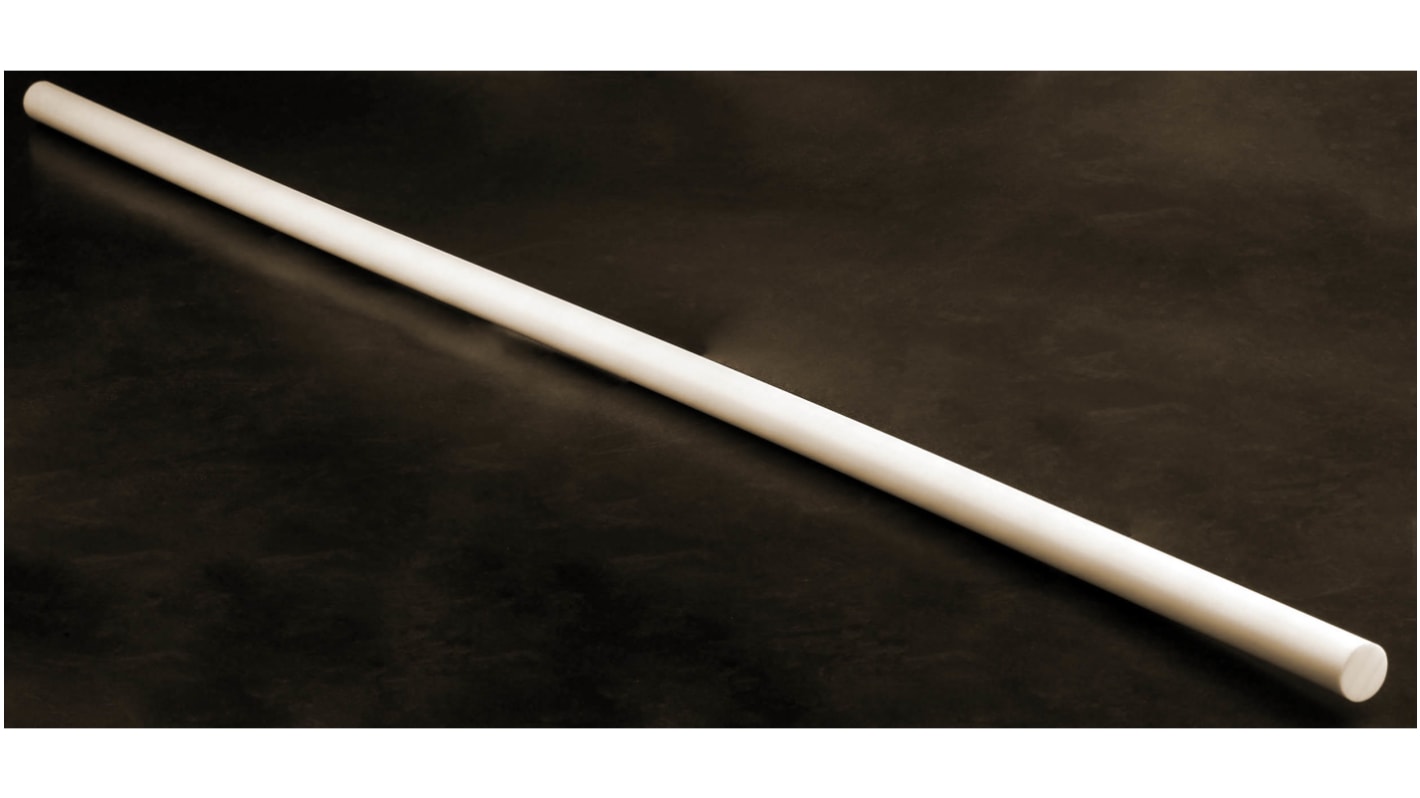

RS PRO White Nylon Rod, 1m x 30mm Diameter
- RS Stock No.:
- 770-002
- Manufacturer:
- RS PRO
27 In stock for delivery within 2 working days
Added
Price 1 Lot of 2
€68.50
(exc. VAT)
€84.26
(inc. VAT)
| Lot(s) | Per Lot | Per unit* |
| 1 - 2 | €68.50 | €34.25 |
| 3 - 9 | €63.71 | €31.855 |
| 10 - 29 | €60.29 | €30.145 |
| 30 + | €54.81 | €27.405 |
| *price indicative | ||
- RS Stock No.:
- 770-002
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
RS PRO Plastic Rod/Bar 1000 mm x 30 mm diameter
Nylon material withstands far more heat than normal plastic. No surprise it is commonly used to produce high-quality Plastic Rod.
Today, we are proudly introducing our own branded RS PRO Plastic Rod (known as Round Bar) with 1000 mm long with a white, natural appearance.
The Rod finds appreciation in electric, marine or automotive industries, but has its highly ranked position by DIY enthusiasts.
Our Rod provides high chemical and UV resistance along with possessing good self-lubricating qualities.
The maximum long term working temperature tolerance is up to + 170°C to suits different project requirements.
Today, we are proudly introducing our own branded RS PRO Plastic Rod (known as Round Bar) with 1000 mm long with a white, natural appearance.
The Rod finds appreciation in electric, marine or automotive industries, but has its highly ranked position by DIY enthusiasts.
Our Rod provides high chemical and UV resistance along with possessing good self-lubricating qualities.
The maximum long term working temperature tolerance is up to + 170°C to suits different project requirements.
Features and Benefits
- The 1000 mm Natural Rod characterising high melting point nylon 66
- The Rod offers excellent electrical properties
- 30 mm diameter Rod has high chemical resistance characteristics
- Easy process to make gears during machine operation
- Natural, white colour
- Higher heat tolerance
- Outstanding frictional properties
Applications
- DIY building projects
- Bushings
- Insulators
- Rollers
- Gears
- Sheaves
Why RS PRO?
RS PRO is our own-brand range of great-value products. Each part of every RS PRO product is stringently tested against demanding industry standards. We give it our seal of approval only when we're confident of exceptional quality. That's why RS PRO is trusted by engineers worldwide.
Standards
DIN 50 014
Natural & Cast Nylon
Specifications
Attribute | Value |
|---|---|
| Colour | White |
| Length | 1m |
| Material | Nylon |
| Form | Rod |
| Rod Diameter | 30mm |
| Density | 1.14g/cm³ |
| Tensile Strength | 60 (Wet) MPa, 80 (Dry) MPa |
| Flammability Rating | UL HB |
| Maximum Operating Temperature | +170°C |
| Elongation | 150% |
| Hardness | 170 Ball Indentation |
| Water Absorption | 8.5% |
