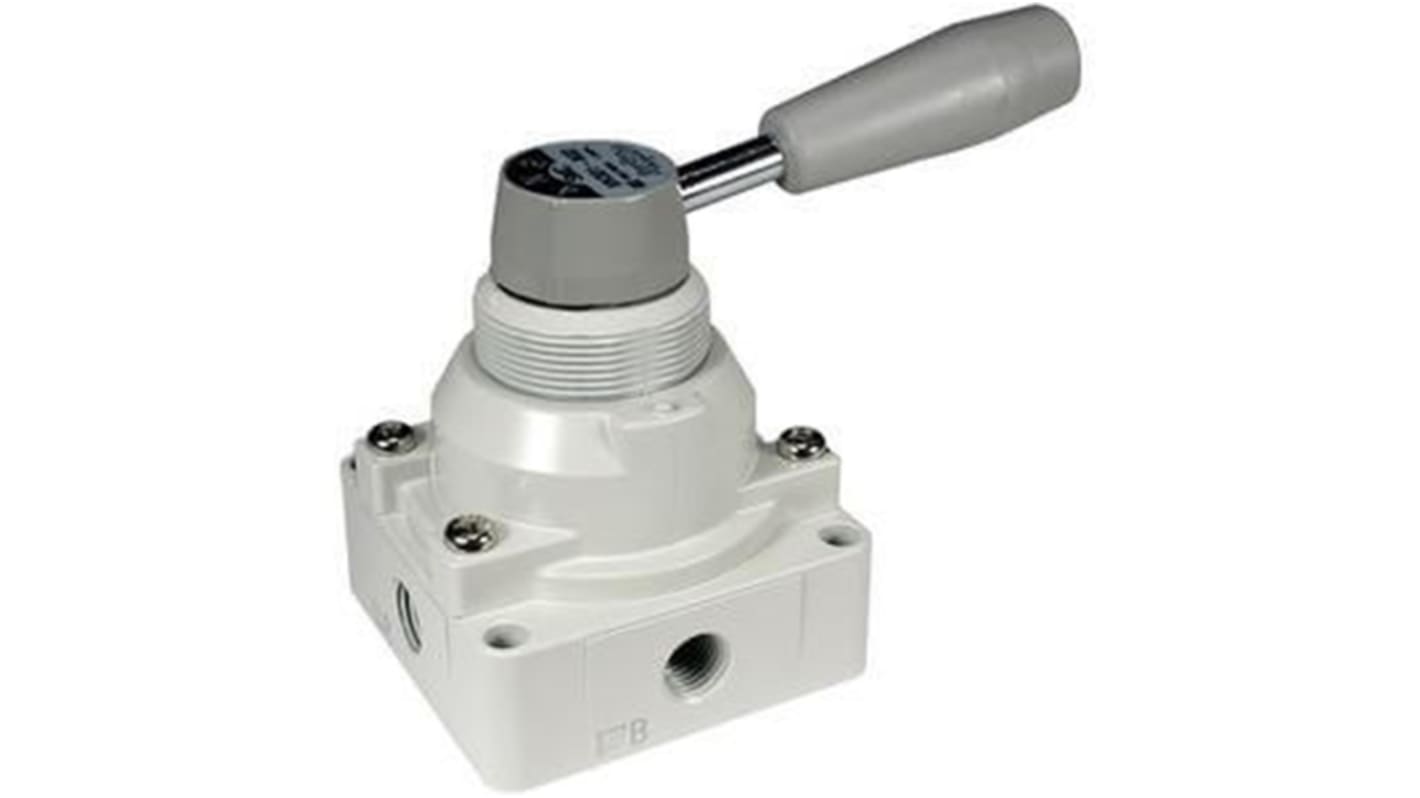

SMC Handle Pneumatic Manual Control Valve VH Series, G 1/2 in, III B
- RS Stock No.:
- 233-7356
- Mfr. Part No.:
- VH402-F04
- Manufacturer:
- SMC
Subtotal (1 unit)*
€138.10
(exc. VAT)
€169.86
(inc. VAT)
Temporarily out of stock
- Shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €138.10 |
*price indicative
- RS Stock No.:
- 233-7356
- Mfr. Part No.:
- VH402-F04
- Manufacturer:
- SMC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Manual Control Valve | |
| Control Mechanism | Handle | |
| Port Size | 1/2 in | |
| Connection Thread Standard | G | |
| Series | VH | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Die Cast Aluminium | |
| Valve Function | Pneumatic Relay | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | No | |
| Thread Size | 1/2 in | |
| Model Number | III B | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Manual Control Valve | ||
Control Mechanism Handle | ||
Port Size 1/2 in | ||
Connection Thread Standard G | ||
Series VH | ||
Maximum Operating Pressure 8 bar | ||
Body Material Die Cast Aluminium | ||
Valve Function Pneumatic Relay | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals No | ||
Thread Size 1/2 in | ||
Model Number III B | ||
- COO (Country of Origin):
- JP
The SMC VH rotary hand valves compact design and variety of flow rates make it ideal for a wide range of applications requiring manual directional control. The slide ring design makes the VH valve easy to operate while offering a high tolerance to contamination with its self-cleaning, wiping action.
Ambient temperature and operating fluid temperature -5 to 60 °C (No freezing)
Operating angle 90°
