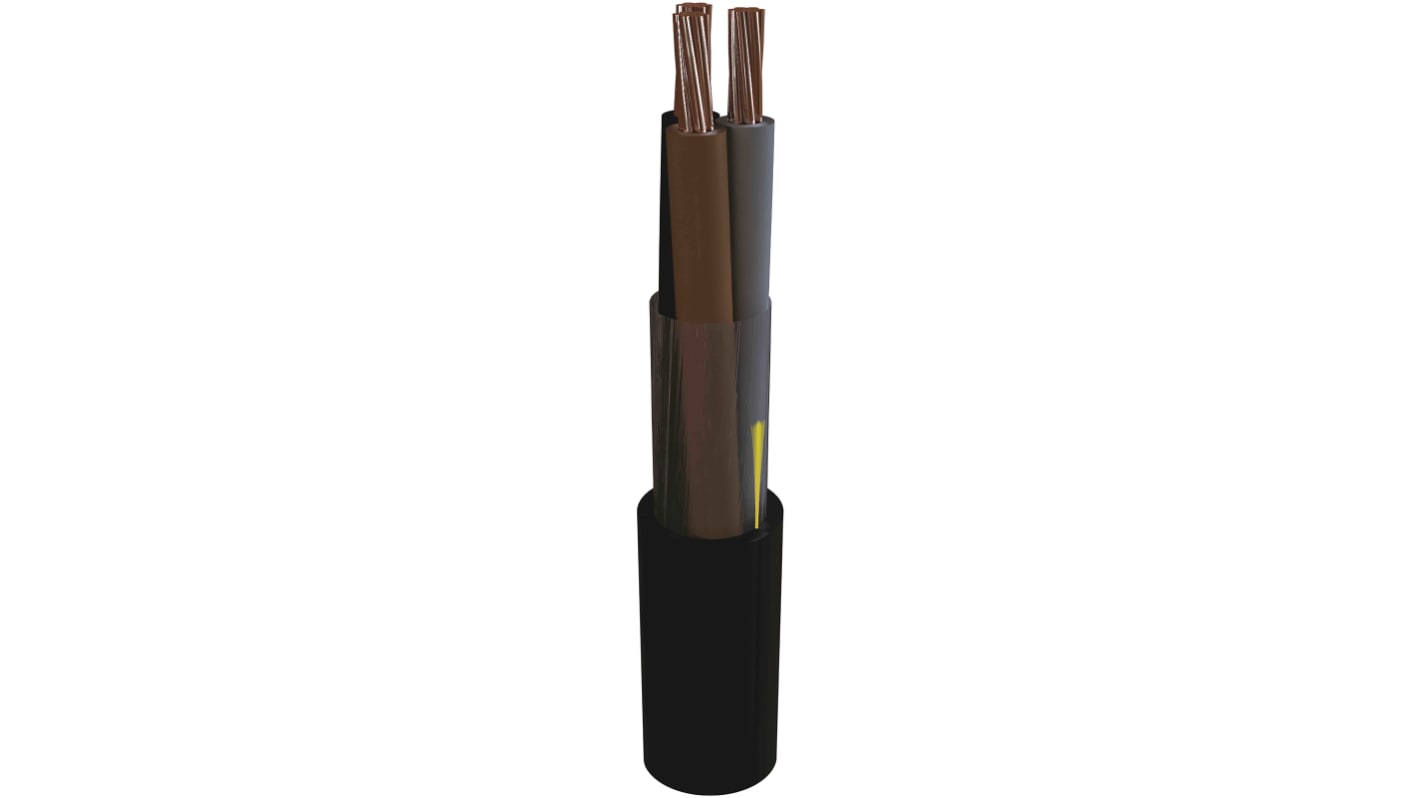

AXINDUS MarineLine YZp 0 Marine 1.5 mm² 2 Core Power Cable, Black LSZH, 100m
- RS Stock No.:
- 201-0601
- Mfr. Part No.:
- 16001
- Manufacturer:
- AXINDUS
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 201-0601
- Mfr. Part No.:
- 16001
- Manufacturer:
- AXINDUS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AXINDUS | |
| Cross Sectional Area | 1.5 mm² | |
| Number of Cores | 2 | |
| Sheath Colour | Black | |
| Length | 100m | |
| Armoured | No | |
| Cable Type | Marine | |
| Current Rating | 10 A | |
| Sheath Material | LSZH | |
| Outer Diameter | 7.9mm | |
| Voltage Rating | 0.6/1 kV | |
| Conductor Strand Type | CL2 | |
| Insulation Material | XLPE | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | +70°C | |
| Cable Shape | Multi-Conductor | |
| Minimum Operating Temperature | -20°C | |
| Series | MarineLine YZp 0 | |
| Standards Met | IEC 60092-350/-360/-353 | |
| American Wire Gauge | 15 AWG | |
