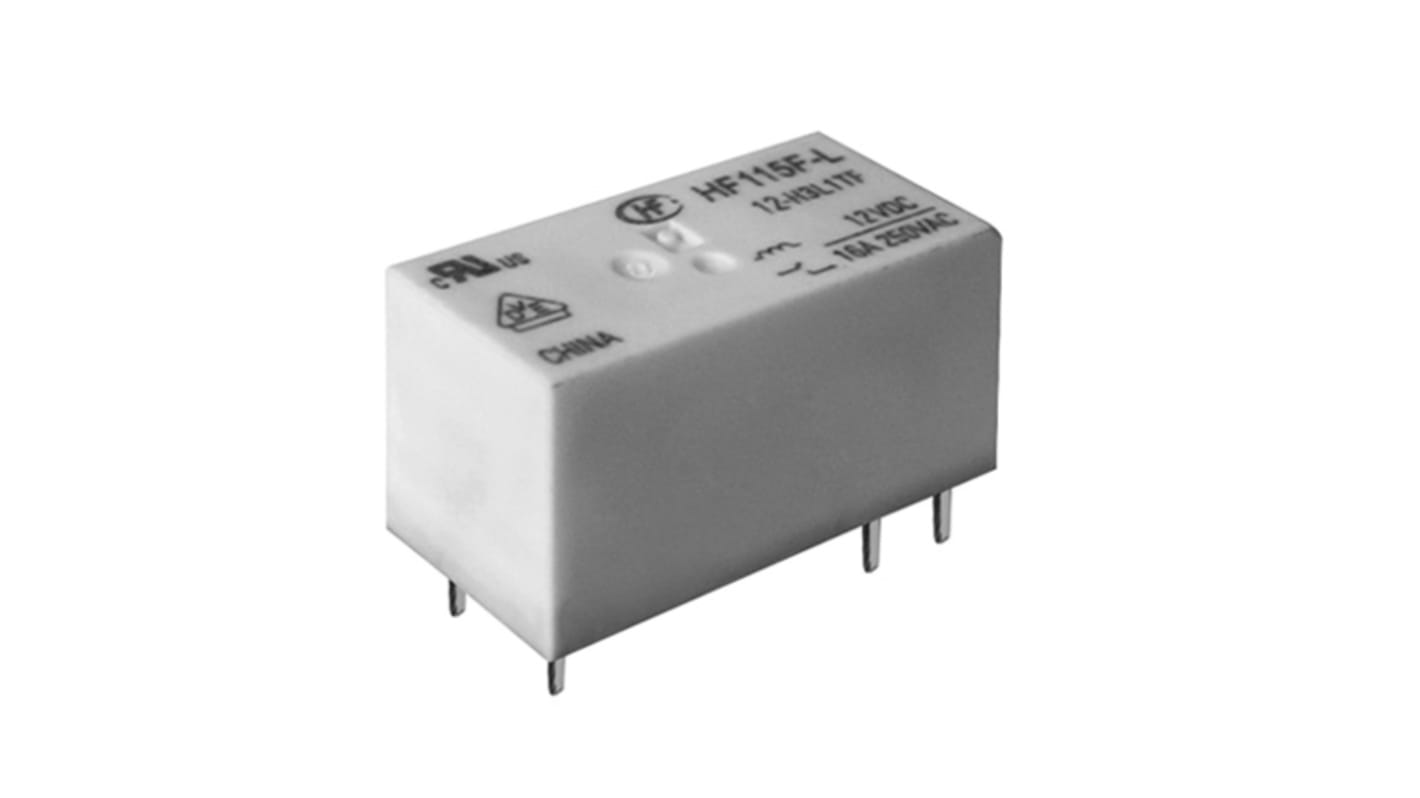

Hongfa Europe GMBH PCB Mount Latching Power Relay, 24V dc Coil, 20A Switching Current, SPST

RS Stock No.:: 176-2604
Mfr. Part No.:: HF115F-L/24-H3L2TF(610)
Manufacturer:: Hongfa Europe GMBH

Hongfa Europe GMBH PCB Mount Latching Power Relay, 24V dc Coil, 20A Switching Current, SPST

Subtotal (1 tray of 50 units)**

€151.35

(exc. VAT)

€186.15

(inc. VAT)

100 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Tray**
50 +	€3.027	€151.35

**price indicative

RS Stock No.:: 176-2604
Mfr. Part No.:: HF115F-L/24-H3L2TF(610)
Manufacturer:: Hongfa Europe GMBH

Datasheet

Attribute	Value
Coil Voltage	24V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	20A
Number of Poles	1
Latching	Yes
Terminal Type	PCB Pin
Maximum Switching Voltage AC	440V
Maximum Switching Voltage DC	300V dc
Maximum Switching Current DC	20 A
Maximum Switching Current AC	20 A
Length	29mm
Coil Resistance	1440Ω
Coil Power	600mW
Life	2 x 10^6 cycles
Height	15.7mm
Isolation Coil To Contact	5kV
Maximum Operating Temperature	+85°C
Series	HF115F-L
Depth	12.7mm
Minimum Operating Temperature	-40°C
Contact Material	Silver Alloy
Standards Met	CQC File No:CQC17002168381, cULus File No:E134517, VDE File No:116934
Maximum Switching Power AC	4 kVA
Dimensions	29 x 12.7 x 15.7mm

Hongfa Europe GMBH PCB Mount Latching Power Relay, 24V dc Coil, 20A Switching Current, SPST

Hongfa SPNO Latching Relay

Features and Benefits

Applications
