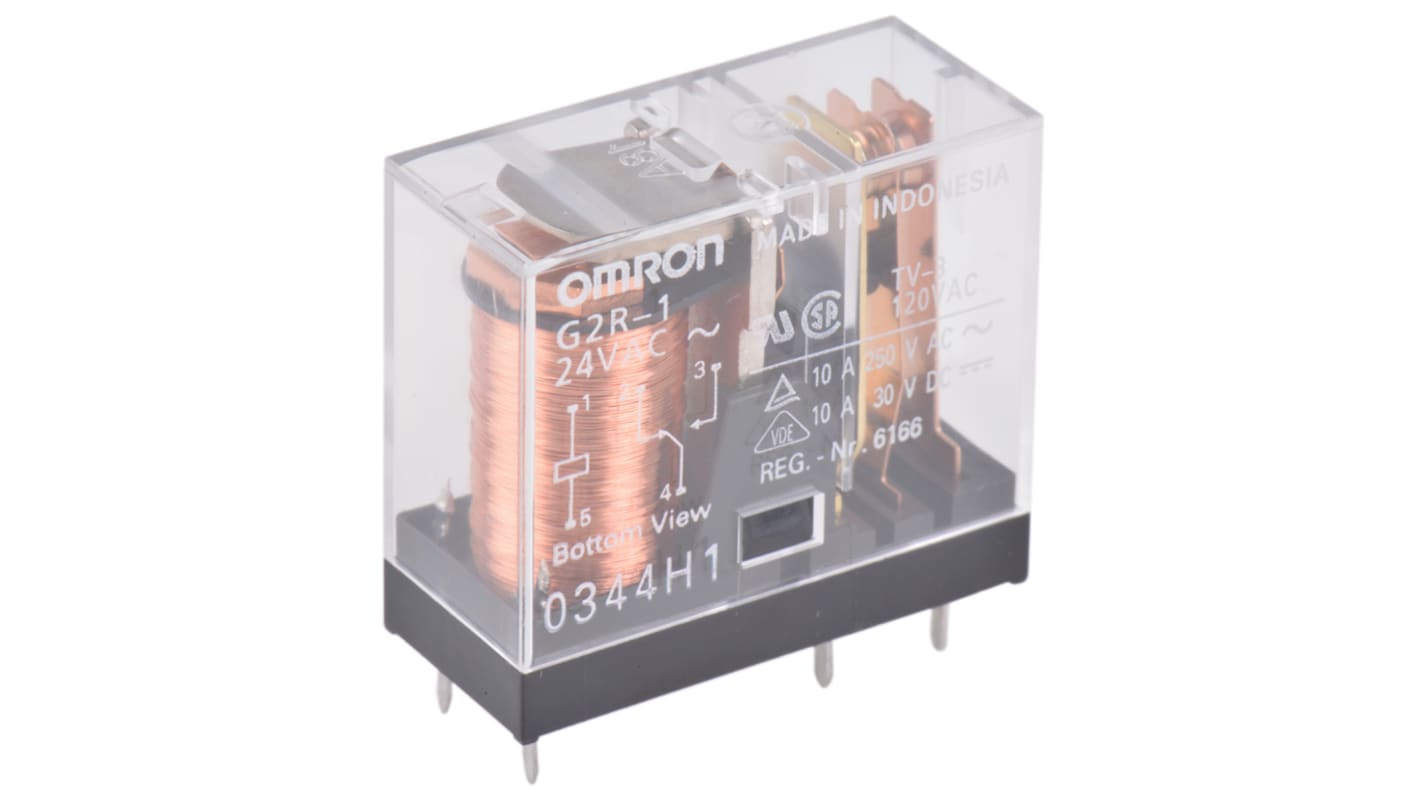

Omron PCB Mount Power Relay, 24V ac Coil, 10A Switching Current, SPST

RS Stock No.:: 789-4666
Mfr. Part No.:: G2R-1 AC24
Manufacturer:: Omron

Omron PCB Mount Power Relay, 24V ac Coil, 10A Switching Current, SPST

Bulk discount available

Price Each**

€14.51

(exc. VAT)

€17.85

(inc. VAT)

34 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 19	€14.51
20 - 49	€13.35
50 - 99	€12.59
100 - 249	€12.40
250 +	€10.38

**price indicative

RS Stock No.:: 789-4666
Mfr. Part No.:: G2R-1 AC24
Manufacturer:: Omron

PCB Power Relay G2R Data Sheet

Attribute	Value
Coil Voltage	24V ac
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	380V ac
Maximum Switching Voltage DC	125V dc
Length	29mm
Coil Resistance	260Ω
Coil Power	900mW
Maximum Operating Temperature	+70°C
Isolation Coil To Contact	5kV ac
Minimum Operating Temperature	-40°C
Depth	13mm
Contact Material	Silver Alloy
Height	25.5mm
Life	100000 cycles
Series	G2R-1
Maximum Switching Power DC	300 W
Maximum Switching Power AC	2.5 kVA
Application	Power

Omron PCB Mount Power Relay, 24V ac Coil, 10A Switching Current, SPST

G2R Series
