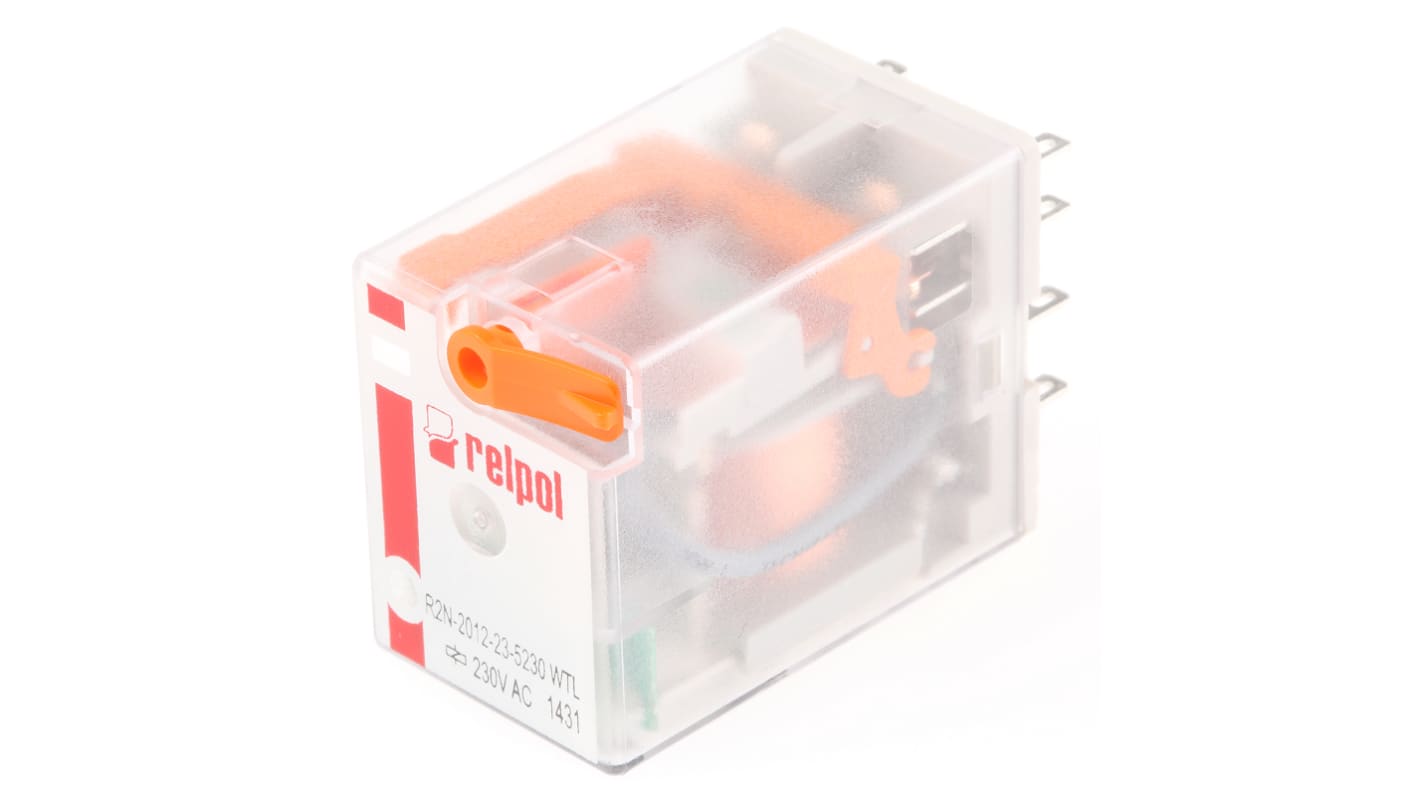

Relpol Plug In Power Relay, 230V ac Coil, 12A Switching Current, DPDT
- RS Stock No.:
- 805-2166
- Mfr. Part No.:
- R2N-2012-23-5230-WTL
- Manufacturer:
- Relpol
View all Power Relays
282 In stock for delivery within 2 working days
Price Each
€10.73
(exc. VAT)
€13.20
(inc. VAT)
| units | Per unit |
| 1 - 4 | €10.73 |
| 5 - 9 | €10.41 |
| 10 + | €9.98 |
- RS Stock No.:
- 805-2166
- Mfr. Part No.:
- R2N-2012-23-5230-WTL
- Manufacturer:
- Relpol
- COO (Country of Origin):
- PL
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
Relpol Miniature Industrial Relays
R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips.
R2N (2 CO), R3N (3 CO) and R4N (4 CO)
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant
Specifications
| Attribute | Value |
| Coil Voltage | 230V ac |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 12A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 440V |
| Coil Resistance | 16100Ω |
| Coil Power | 1.6W |
| Maximum Switching Voltage DC | 24V dc |
| Length | 21.2mm |
| Height | 35.6mm |
| Depth | 27.5mm |
| Isolation Coil To Contact | 2.5kV ac |
| Series | R2N |
| Maximum Switching Power DC | 300mW |
| Maximum Switching Power AC | 3 kVA |
| Application | Industrial Equipment |
