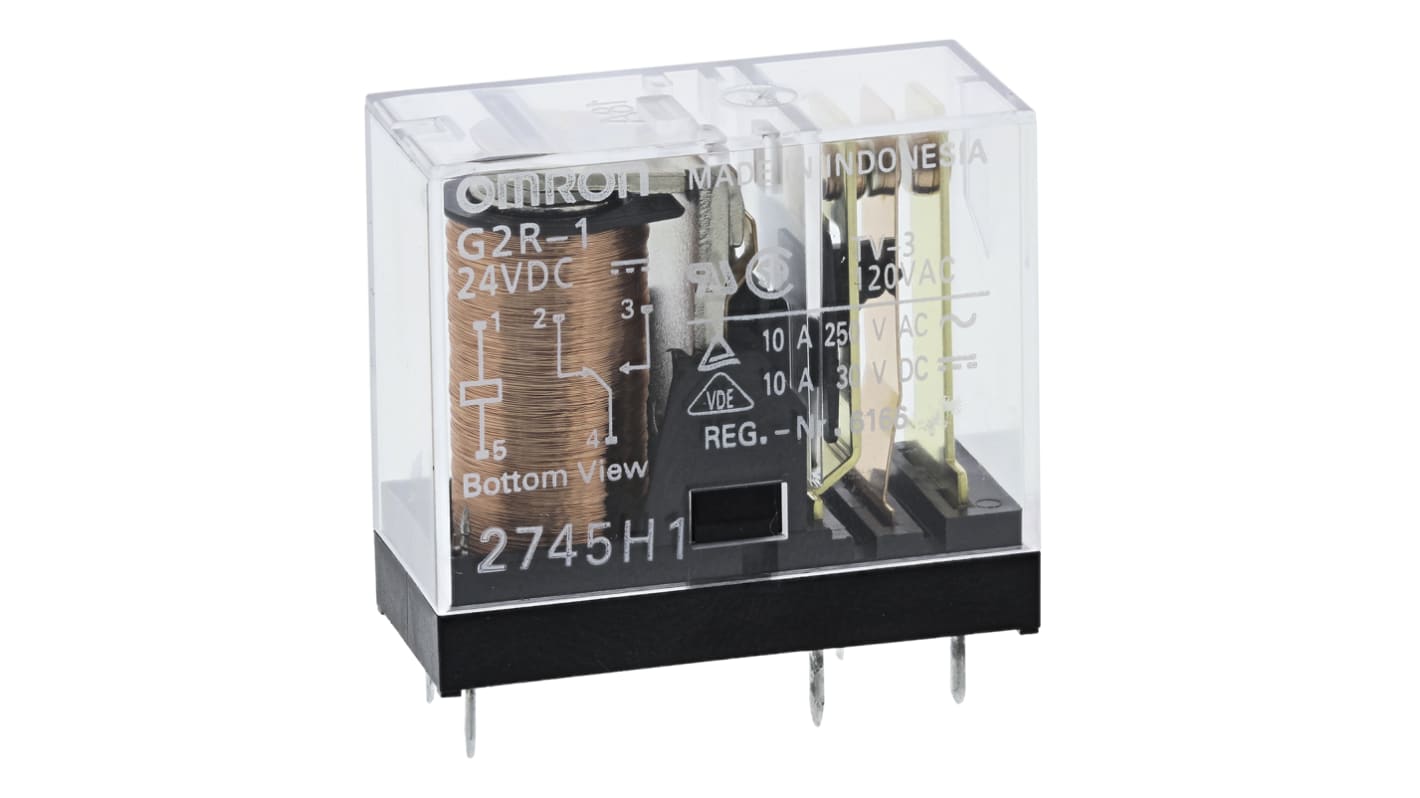

Omron PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT

RS Stock No.:: 807-4197
Mfr. Part No.:: G2R-1 DC24BYOMI
Manufacturer:: Omron

Omron PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT

Subtotal (1 unit)*

€5.33

(exc. VAT)

€6.56

(inc. VAT)

In Stock

25 unit(s) ready to ship from another location
Plus 37 unit(s) shipping from 08 September 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€5.33

*price indicative

RS Stock No.:: 807-4197
Mfr. Part No.:: G2R-1 DC24BYOMI
Manufacturer:: Omron

Omron G2R Series Power Relay, 24V DC Coil Voltage, 10A Switching Current - G2R-1 DC24BYOMI

This power relay is designed for efficient switching in automation applications. Featuring a compact design, it measures 29mm in length, 13mm in depth, and 25.5mm in height. This relay operates with a coil voltage of 24V DC and supports a maximum switching current of 10A, making it ideal for a variety of electrical tasks.

Features & Benefits

• Supports a robust maximum switching voltage of 380V AC
• Crafted with silver alloy contact material for improved conductivity
• PCB mount relay facilitates easy integration into circuits
• Plug-in terminal type ensures quick and secure connections

Applications

• Utilised in PCB assembly for automatic control systems
• Can be used in industrial equipment and machinery
• Suitable for home automation systems requiring power switching
• Instrumentation to manage electrical loads reliably

How does the contact configuration enhance performance?

The SPDT configuration allows for multiple applications, offering both normally open and normally closed functions. This flexibility enables efficient control in various systems, improving overall performance.

What is the significance of the silver alloy contact material?

Silver alloy contacts provide excellent electrical conductivity and durability, reducing the risk of contact wear while ensuring consistent and reliable performance over time.

Can this relay withstand extreme temperatures?

It operates effectively within a temperature range of -40°C to +70°C, making it suitable for harsh environments where conventional relays may fail.

How does the plug-in terminal design benefit installation?

The plug-in design simplifies installation and maintenance, allowing for fast replacements without the need for soldering, which saves both time and effort.

What factors contribute to the relay's longevity?

With a life expectancy of 100,000 operations, robust construction, and high dielectric strength, this relay is designed for durability, even in demanding applications.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Contact Configuration	SPDT
	Mounting Type	PCB Mount
	Switching Current	10A
	Number of Poles	1
	Latching	No
	Terminal Type	Plug In
	Maximum Switching Voltage AC	380V ac
	Maximum Switching Voltage DC	125V dc
	Length	29mm
	Coil Resistance	1100Ω
	Coil Power	530mW
	Height	25.5mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+70°C
	Depth	13mm
	Life	100000 Operations
	Series	G2R
	Contact Material	Silver Alloy
	Application	PCB

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Contact Configuration SPDT
	Mounting Type PCB Mount
	Switching Current 10A
	Number of Poles 1
	Latching No
	Terminal Type Plug In
	Maximum Switching Voltage AC 380V ac
	Maximum Switching Voltage DC 125V dc
	Length 29mm
	Coil Resistance 1100Ω
	Coil Power 530mW
	Height 25.5mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +70°C
	Depth 13mm
	Life 100000 Operations
	Series G2R
	Contact Material Silver Alloy
	Application PCB
