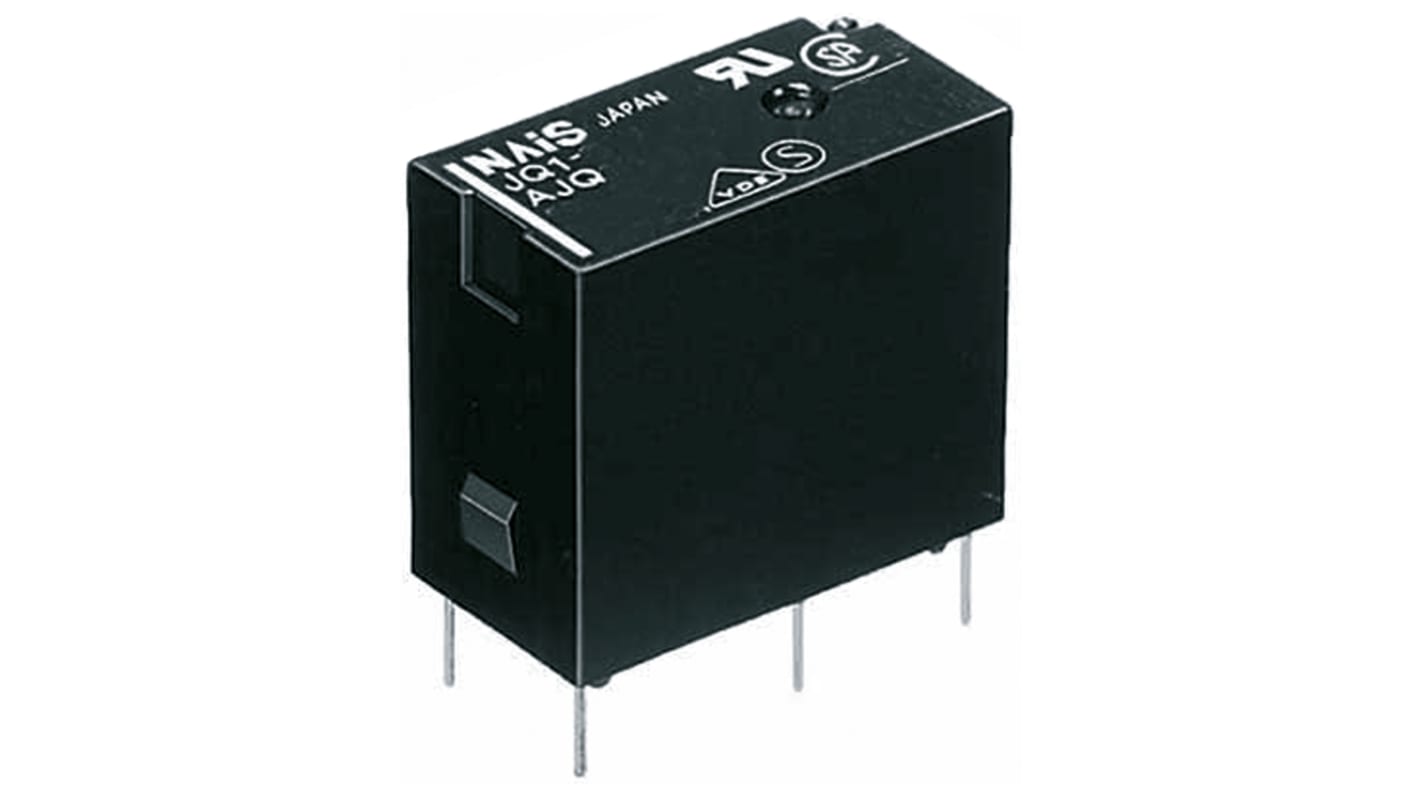

Panasonic PCB Mount Power Relay, 12V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 815-5048
- Mfr. Part No.:
- JQ1AP-12V-F
- Manufacturer:
- Panasonic
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 815-5048
- Mfr. Part No.:
- JQ1AP-12V-F
- Manufacturer:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Coil Voltage | 12V dc | |
Contact Configuration | SPST | |
Mounting Type | PCB Mount | |
Switching Current | 5A | |
Number of Poles | 1 | |
Latching | No | |
Terminal Type | PCB Pin | |
Maximum Switching Voltage AC | 250V | |
Maximum Switching Voltage DC | 110V dc | |
Length | 10mm | |
Coil Resistance | 720Ω | |
Coil Power | 200mW | |
Minimum Operating Temperature | -40°C | |
Isolation Coil To Contact | 4kVrms | |
Life | 10^7 (Mechanical) Operations, 5 x 10^4 Operations | |
Maximum Operating Temperature | +70°C | |
Depth | 20mm | |
Height | 16mm | |
Contact Material | Silver Alloy | |
Maximum Switching Power DC | 150 W | |
Maximum Switching Power AC | 1.25 kVA | |
Application | Domestic Appliances, Heating Control | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 110V dc | ||
Length 10mm | ||
Coil Resistance 720Ω | ||
Coil Power 200mW | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 4kVrms | ||
Life 10^7 (Mechanical) Operations, 5 x 10^4 Operations | ||
Maximum Operating Temperature +70°C | ||
Depth 20mm | ||
Height 16mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power DC 150 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Domestic Appliances, Heating Control | ||
