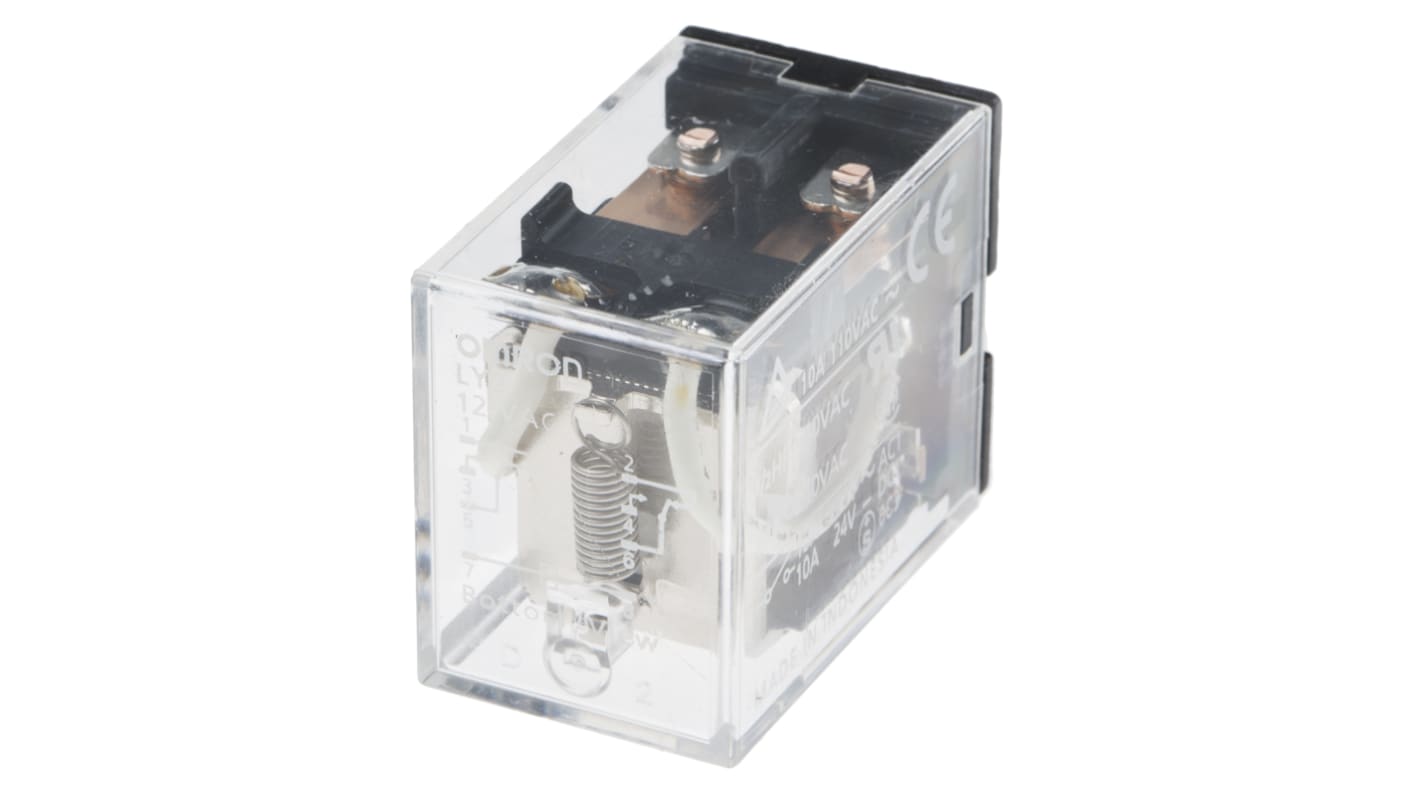

Omron Plug In Power Relay, 12V ac Coil, 10A Switching Current, DPDT

RS Stock No.:: 828-7258
Mfr. Part No.:: LY2 AC12
Manufacturer:: Omron

Omron Plug In Power Relay, 12V ac Coil, 10A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)**

€19.06

(exc. VAT)

€23.44

(inc. VAT)

18 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 4	€19.06
5 - 9	€18.48
10 +	€17.64

**price indicative

RS Stock No.:: 828-7258
Mfr. Part No.:: LY2 AC12
Manufacturer:: Omron

LY Datasheets

Attribute	Value
Coil Voltage	12V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	46Ω
Coil Power	1 → 1.2VA
Maximum Operating Temperature	+55°C
Series	LY2
Minimum Operating Temperature	-25°C
Depth	36mm
Isolation Coil To Contact	2kV ac
Contact Material	Silver Alloy
Life	500000 (Electrical) Operations, 50000000 (Mechanical) Operations
Height	28mm
Maximum Switching Power AC	1.1 kVA
Maximum Switching Power DC	240 W
Application	General Purpose, Power

Omron Plug In Power Relay, 12V ac Coil, 10A Switching Current, DPDT

Omron LY2 Series Power Relay, 12V AC Coil Voltage, DPDT Contact Configuration - LY2 AC12

Features & Benefits

Applications

What is the maximum temperature this component can operate at?

How can this relay handle electrical power levels?

What are the characteristics of the contact material used in the relay?

Is installation straightforward for this type of relay?
