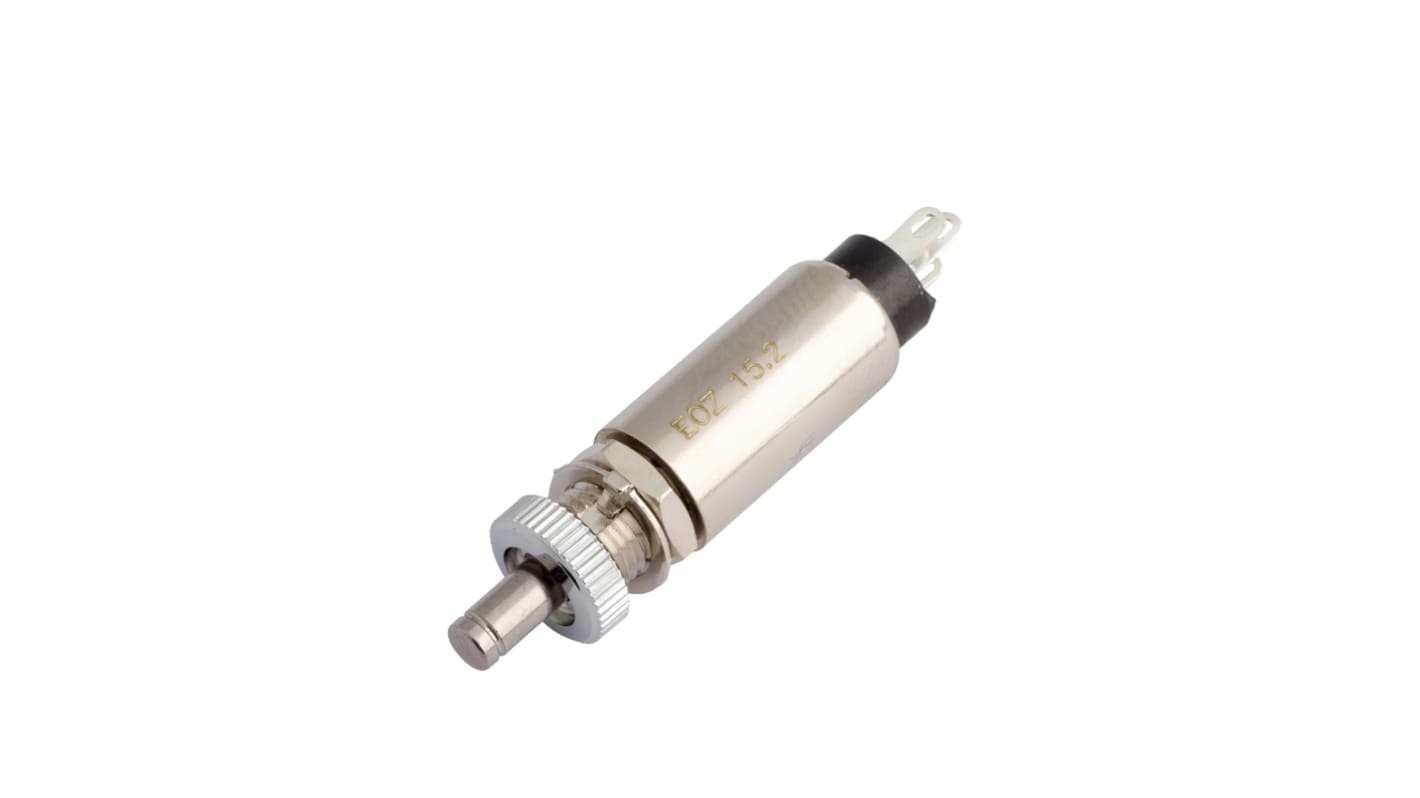

DJET Series Pushbutton switches, Front Panel Sealed

The DJET series push button switches and be used in outdoor applications as they are IP67 front panel sealed for the 10mm version. The 6.35 mm version can be fitted with a silicone cap giving IP5 protection. They are available in single or double pole versions and in two sizes, either 6.35 mm or 10 mm diameters. They have a positive snap-action switching system with an electrical life of 100 000 operations.

For mounting, these units are pushed through the panel cut out and then fastened with a fixing nut from the back. Do not tighten by the means of top not.

Potential Applications

These units can be used in many possible applications and are extremely versatile. Some examples would include military and avionics equipment, telecommunications, medical equipment and power supplies.

Units	Per unit
1 - 4	€44.54
5 - 9	€43.21
10 - 24	€41.87
25 - 49	€39.20
50 +	€37.86

Select all	Attribute	Value
	Brand	EOZ
	Switch Operation	Momentary
	Illuminated	No
	Panel Cut Out Diameter	6.4mm
	Mounting Type	Panel Mount
	Push Button Colour	Chrome
	Contact Configuration	SPDT
	Voltage Rating	48 V dc, 220V ac
	Push Button Style	Round
	IP Rating	IP65, IP67
	Contact Current Rating	100 μA
	Contact Material	Gold Plated Brass
	Manufacturer Part No.	17.17851.21
	Case Colour	Black
	Terminal Type	Solder

	Select all
	Brand EOZ
	Switch Operation Momentary
	Illuminated No
	Panel Cut Out Diameter 6.4mm
	Mounting Type Panel Mount
	Push Button Colour Chrome
	Contact Configuration SPDT
	Voltage Rating 48 V dc, 220V ac
	Push Button Style Round
	IP Rating IP65, IP67
	Contact Current Rating 100 μA
	Contact Material Gold Plated Brass
	Manufacturer Part No. 17.17851.21
	Case Colour Black
	Terminal Type Solder

EOZ Push Button Switch, Momentary, Panel Mount, 6.4mm Cutout, SPDT, 48 V dc, 220V ac, IP65, IP67
