Units	Per unit
1 - 4	€35.84
5 +	€34.10

Select all	Attribute	Value
	Brand	APEM
	Contact Configuration	DPDT
	Switch Operation	Latching
	Panel Cut Out Width	21.08mm
	Panel Cut Out Height	36.8mm
	Contact Current Rating	5 A
	Illuminated	No
	Actuator Colour	Black
	Mounting Type	Panel Mount
	IP Rating	IP69K
	Terminal Type	Quick Connect, Solder
	Legend Text	I, O
	Panel Cut Out Size	21.08 x 36.8mm
	DC Voltage Rating	24V
	Actuator Shape	Rectangular
	Case Material	PA 6.6
	Maximum Operating Temperature	+85°C
	Contact Material	Silver
	Legend Text Colour	Black
	Operating Temperature Range	-40 → +85°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand APEM
	Contact Configuration DPDT
	Switch Operation Latching
	Panel Cut Out Width 21.08mm
	Panel Cut Out Height 36.8mm
	Contact Current Rating 5 A
	Illuminated No
	Actuator Colour Black
	Mounting Type Panel Mount
	IP Rating IP69K
	Terminal Type Quick Connect, Solder
	Legend Text I, O
	Panel Cut Out Size 21.08 x 36.8mm
	DC Voltage Rating 24V
	Actuator Shape Rectangular
	Case Material PA 6.6
	Maximum Operating Temperature +85°C
	Contact Material Silver
	Legend Text Colour Black
	Operating Temperature Range -40 → +85°C
	Minimum Operating Temperature -40°C

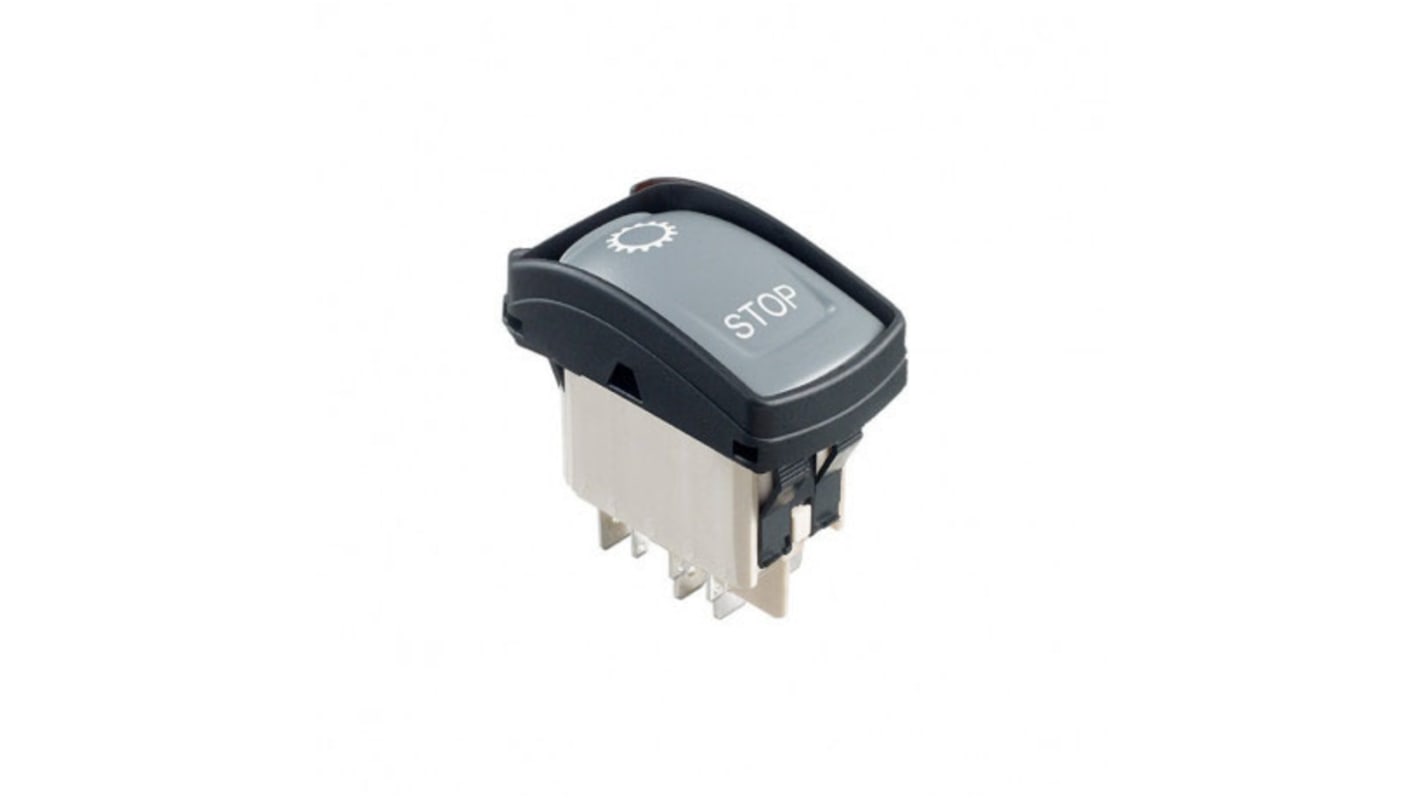

APEM DPDT, Latching Rocker Switch Panel Mount
