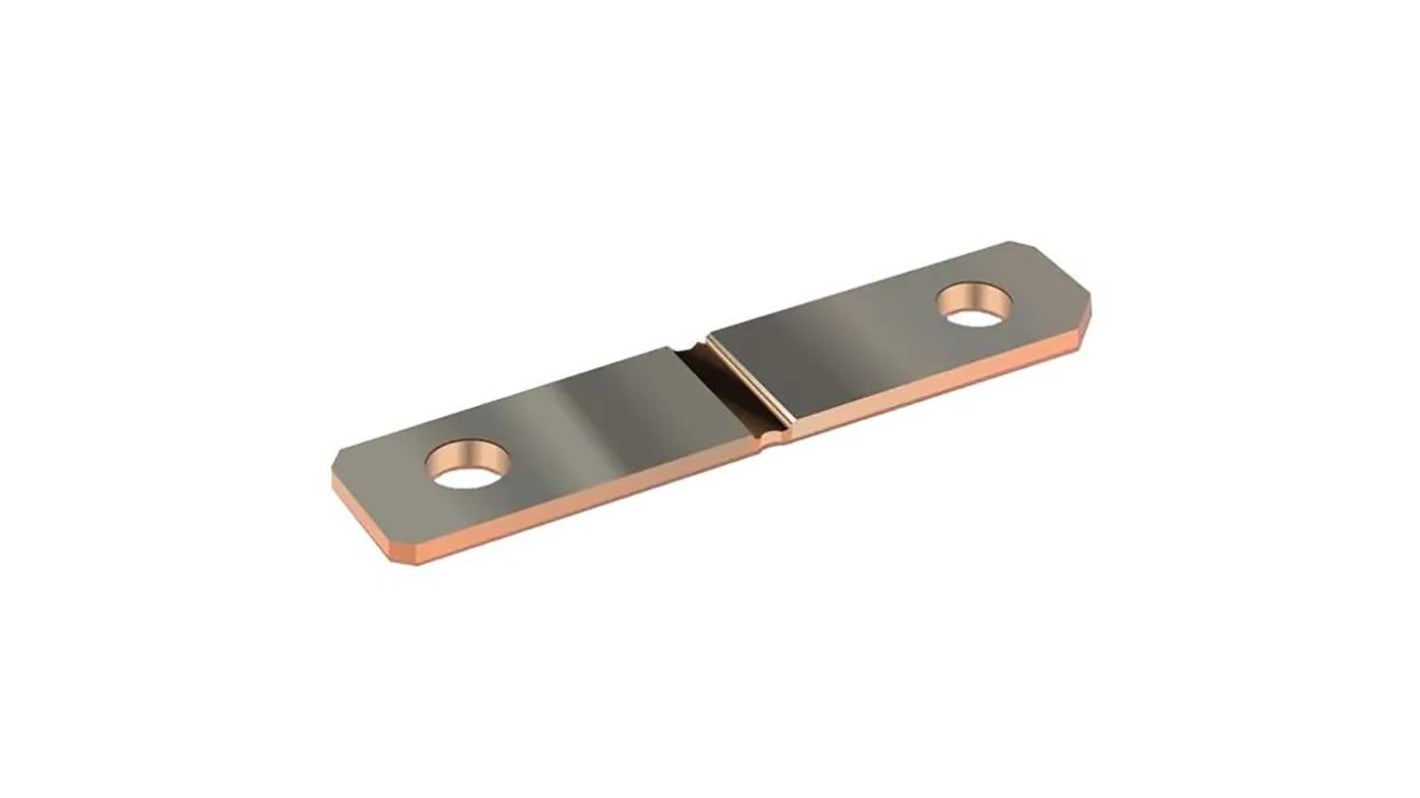

Bourns Plate Shunt, 849 A Max 42.4mV, ±5 % Accuracy
- RS Stock No.:
- 205-9740
- Mfr. Part No.:
- CSM2F-8518-L050J01
- Manufacturer:
- Bourns
Bulk discount available
Subtotal (1 unit)*
€22.00
(exc. VAT)
€27.06
(inc. VAT)
Temporarily out of stock
- Shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | €22.00 |
| 10 - 24 | €20.46 |
| 25 + | €19.14 |
*price indicative
- RS Stock No.:
- 205-9740
- Mfr. Part No.:
- CSM2F-8518-L050J01
- Manufacturer:
- Bourns
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Maximum Current | 849A | |
| Product Type | Shunt | |
| Shunt Type | Plate | |
| Output Voltage | 42.4mV | |
| Accuracy | ±5 % | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 170°C | |
| Standards/Approvals | No | |
| Series | CSM2F | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Maximum Current 849A | ||
Product Type Shunt | ||
Shunt Type Plate | ||
Output Voltage 42.4mV | ||
Accuracy ±5 % | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 170°C | ||
Standards/Approvals No | ||
Series CSM2F | ||
- COO (Country of Origin):
- CR
The Bourns metal foil resistors are constructed with a metal foil resistive element mounted on a ceramic substrate for excellent heat conductivity. The metal foil resistive element of these current sense resistors results in very low inductance, low noise and excellent reliability.
Up to 36 W permanent power
High pulse power rating
Maximum fastening torque: 10 Nm
Tinned terminals
Customized versions available
AEC-Q200 and RoHS* compliant
