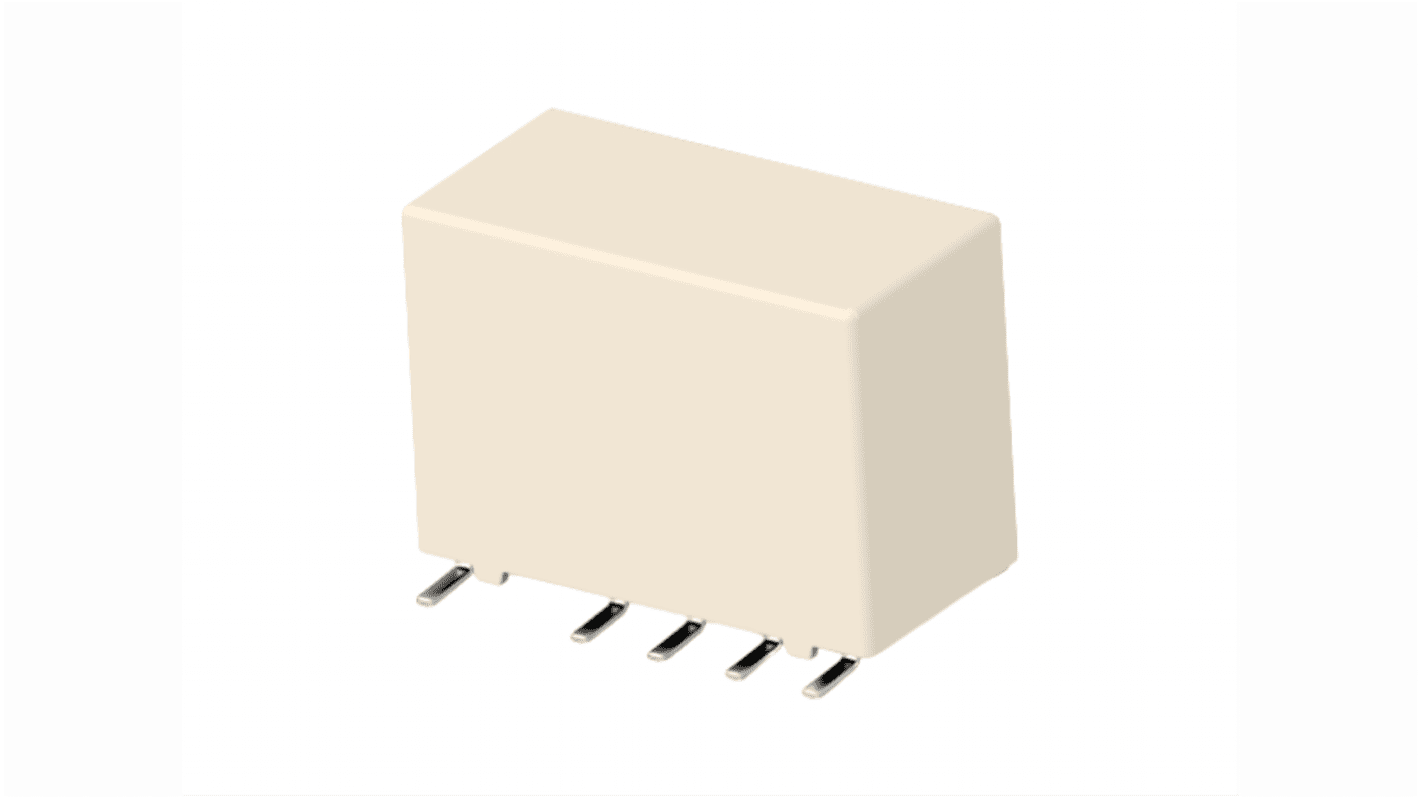

TE Connectivity PCB Mount Signal Relay, 48V ac Coil, 2A Switching Current, DPDT

RS Stock No.:: 276-3916
Mfr. Part No.:: 7-1393788-1
Manufacturer:: TE Connectivity

TE Connectivity PCB Mount Signal Relay, 48V ac Coil, 2A Switching Current, DPDT

Bulk discount available

Price Each (On a Reel of 400)

€3.155

(exc. VAT)

€3.881

(inc. VAT)

Temporarily out of stock - back order for despatch 06-01-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Reel**
400 - 400	€3.155	€1,262.00
800 +	€2.994	€1,197.60

**price indicative

RS Stock No.:: 276-3916
Mfr. Part No.:: 7-1393788-1
Manufacturer:: TE Connectivity

Datasheet - 7-1393788-1
Datasheet - 7-1393788-1
Datasheet - 7-1393788-1

Attribute	Value
Coil Voltage	48V ac
Contact Configuration	DPDT
Mounting Type	PCB Mount
Number of Coils	Dual
Maximum Switching Current DC	2 A
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	220V dc
Series	Axicom P2 Signal Relay
Latching	No
Length	14.5mm
Depth	7.2mm
Height	10.4mm
Dimensions	14.5 x 7.2 x 10.4mm
Terminal Type	Surface Mount
Switching Current	2A
Number of Poles	2
Contact Material	Nickel
Features	Long Terminals
Minimum Operating Temperature	-40°C
Coil Resistance	64 Ω
Coil Power	655mW
Operating Temperature Range	-40 → 85°C
Maximum Operating Temperature	+85°C

TE Connectivity PCB Mount Signal Relay, 48V ac Coil, 2A Switching Current, DPDT
